Homework Answers
Question:

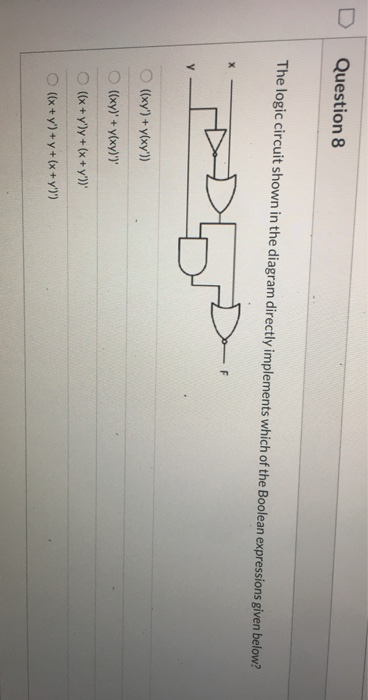

The Logic circuit shown in the diagram directly implements which of
the boolean expressions given below?
Ans: ((x+y')y+(x+y'))'

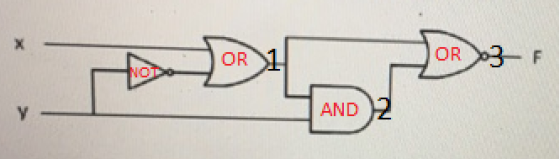

Please consider the
following diagram below:
There are 3 kinds of
gates(along with their representations) which are as
follows:
1) Not Gate -> '
2) And Gate ->.
3) Or Gate -> +
I break the entire
logic circuit into 3 parts and then mentioned the following 3 steps
for ease of understanding:
Step-1: (x+y')
Step-2: (x+y').y
Step-3: ((x+y').y)+(x+y')
As you can see after OR gate, we have NOT then
==> ( ((x+y').y) + (x+y') )'
==> ( (x+y').y+(x+y') )'
==> ((x+y')y+(x+y'))'
(Feel free to drop me a comment, If you need any help)
Hope this Helps!!!
Please upvote as well, If you got the answer?
If not please comment, I will Help you with that...
