boolean algebra question 4. Draw the combinational circuit that directly implements the Boolean expression: Fx,y,z) (xy...

Question

Question

4. Draw the combinational circuit that directly implements the Boolean expression: Fx,y,z) (xy XOR (y +z)xz

boolean algebra question

engineering Computer-Science

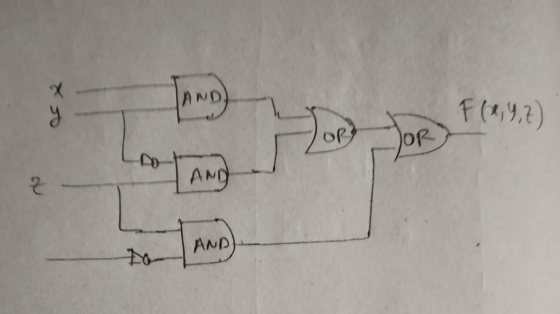

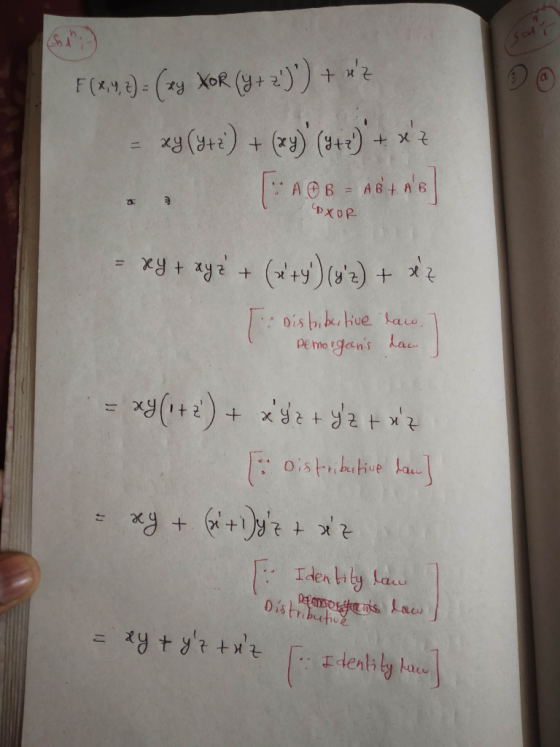

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= xz + (xy...

1.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= xz + (xy + 'z). 2.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= 'xyx+ yz + x'y.
Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy)...

Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy) can be simplified to: x'y' 1 xy x Å y What is the simplified expression for the following Kmap? X'Z + XZ Y' Z + X'Z Z Question 3 (10 points) 3. 1. W' + WX'YZ' 2. W'Y' + W'Y + WX'YZ' 3. W'Y' + W'X' + X'YZ' W' + X'YZ' Question 4 (2 points) 4. There are ____________ megabytes in a terabyte. 230...
Question 8 The logic circuit shown in the diagram directly implements which of the Boolean expressions...

Question 8 The logic circuit shown in the diagram directly implements which of the Boolean expressions given below? x F D y O((xy') + y(xy')) O((xy)' + y(xy)') 0 ((x + y)x + (x + y'))" O((x +y) + y + (x +y')

5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x +...

5. Apply Boolean algebra theorems to minimize the following expression. x(y + xy) + xy(x + yy) 6. Consider the following digital circuit diagram. Write the corresponding logic expression for f and the truth table. D A $(91, 02, ) f(x1, X2, X3)
Write the Boolean expression that implements the function, F(W,X,Y,Z) = ∑m(1,7,8,10,13) as a 4. NAND-NAND circuit...

Write the Boolean expression that implements the function, F(W,X,Y,Z) = ∑m(1,7,8,10,13) as a 4. NAND-NAND circuit 5. OR-NAND circuit 6. NOR-OR 7. Construct the truth table, K-map minimization, boolean expressions and circuit diagrams for all output bits of a circuit that performs 1’s complement of a 4-bit binary number. Assume overflow bits are lost:
7. (a) Find an example of a Boolean algebra with elements x, y, and z for which xty-x + z but yz. (b) Prove that in any Boolean algebra, if xy- z and+ yxz, then y -z 7. (a) Find an example of a...

7. (a) Find an example of a Boolean algebra with elements x, y, and z for which xty-x + z but yz. (b) Prove that in any Boolean algebra, if xy- z and+ yxz, then y -z 7. (a) Find an example of a Boolean algebra with elements x, y, and z for which xty-x + z but yz. (b) Prove that in any Boolean algebra, if xy- z and+ yxz, then y -z

Design a combinational circuit with three inputs, x , y, and z, and three outputs, A,...

Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y a) Create the...

7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y a) Create the Kmaps and then simplify F(w,x,y,z) (leave in sum-of-products form). b) After simplifying F(w,x,y,z) draw the combinational circuit that directly implements the Boolean expression.
1) Use Boolean algebra to simplify the expression below as far as possible. Create a truth...

1) Use Boolean algebra to simplify the expression below as far as possible. Create a truth table for the simplified expression as well as the original. (a XOR b)(a' XOR b) + c' *XOR = Exclusive or, ' = NOT* 2) Draw a circuit diagram for the original expression as well as the simplified expression, identifying the chips that you would use and the pins for each gate.

Draw the circuit that implements each of the following equations: X'Y+WZ X'Y+WY+Z' (XZ'+XY'+WZ)' ((W'+Y)'+(Z(X'+Z)))'

Draw the circuit that implements each of the following equations: X'Y+WZ X'Y+WY+Z' (XZ'+XY'+WZ)' ((W'+Y)'+(Z(X'+Z)))'
