7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y a) Create the...

Question

Question

7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y

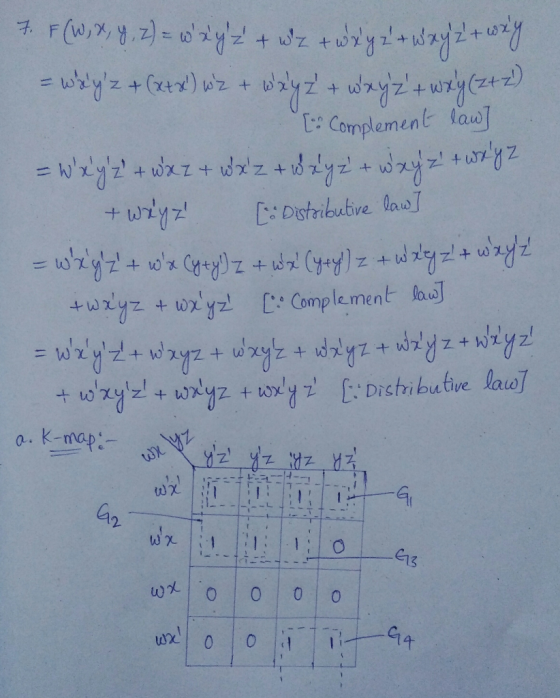

a) Create the Kmaps and then simplify F(w,x,y,z) (leave in sum-of-products form).

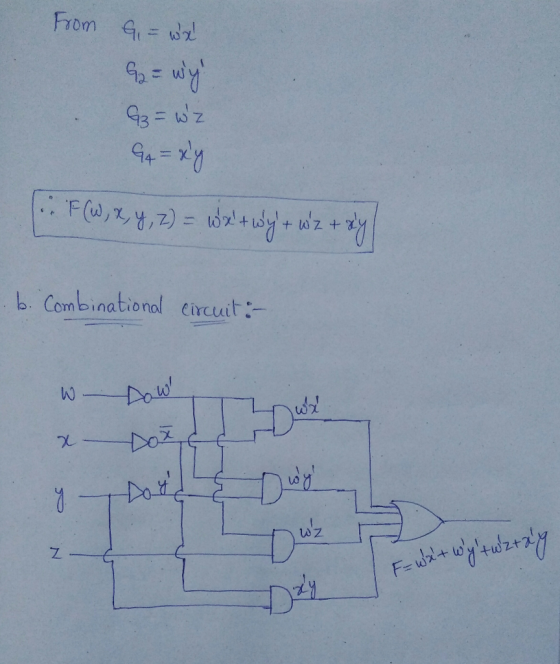

b) After simplifying F(w,x,y,z) draw the combinational circuit that directly implements the Boolean expression.

engineering Computer-Science

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= xz + (xy...

1.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= xz + (xy + 'z). 2.) Draw the combinational circuit that direclty implements the following boolen expression: F(x,y,z)= 'xyx+ yz + x'y.
boolean algebra question 4. Draw the combinational circuit that directly implements the Boolean expression: Fx,y,z) (xy...

boolean algebra question 4. Draw the combinational circuit that directly implements the Boolean expression: Fx,y,z) (xy XOR (y +z')x'z
Q2: 1. Proof this Boolean expression. Use Boolean Algebra (X+Y). (Z+W).(X'+Y+W) = Y.Z+X.W+Y.W 2. For this...

Q2: 1. Proof this Boolean expression. Use Boolean Algebra (X+Y). (Z+W).(X'+Y+W) = Y.Z+X.W+Y.W 2. For this BF F(X,,Z)=((XYZ)(X +Z))(X+Y) • Design the digital circuit Derive the Boolean Function of X, Y, Z. Simplify the Function Derive the truth table before and after simplification. Derive the BF F(X,Y,Z) as Maxterms (POS) and miterms (SOP). Implement the F(X,Y,Z) after simplification using NAND gates only. Implement the F(X,Y,Z) after simplification using OR NOR gates only.

Create the Kmaps and then simplify for the following functions: a. F(x,y,z) = x'y'z' + x'yz...

Create the Kmaps and then simplify for the following functions: a. F(x,y,z) = x'y'z' + x'yz + x'yz' b. F(x,y,z) = x'y'z' + x'yz' + xy'z' + xyz' c. F(x,y,z) = y'z' + y'z + xyz'
Write the Boolean expression that implements the function, F(W,X,Y,Z) = ∑m(1,7,8,10,13) as a 4. NAND-NAND circuit...

Write the Boolean expression that implements the function, F(W,X,Y,Z) = ∑m(1,7,8,10,13) as a 4. NAND-NAND circuit 5. OR-NAND circuit 6. NOR-OR 7. Construct the truth table, K-map minimization, boolean expressions and circuit diagrams for all output bits of a circuit that performs 1’s complement of a 4-bit binary number. Assume overflow bits are lost:
The following logic function is given as a sum of minterms F(W,X,Y,Z) = ∑W,X,Y,Z(2,7,10,13,14) + d(5,6,15)...

The following logic function is given as a sum of minterms F(W,X,Y,Z) = ∑W,X,Y,Z(2,7,10,13,14) + d(5,6,15) a) Draw the K-map for the given function F. b) What is the minimized SOP equation? c) Give all input pairs in the form of WXYZ where a transition between them would create a timing hazard. d) Draw the timing diagram showing the hazard for one of the cases. Assume ALL gate delays are equal. e) Provide the expression of an equivalent logic function...

Using K-map simplify the following Boolean functions in product of sum form a. F(w,x,y,z) =Σ(0,2,5,6,7,8,10)

Using K-map simplify the following Boolean functions in product of sum form a. F(w,x,y,z) =Σ(0,2,5,6,7,8,10)
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z +...

Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z + x'yz + xyz? Please simplify the following Boolean expression to its simplest form: F(x, y) = (x + y)(xy)’ + ((x + y)(xy)’)’?
Write F(x, y, z) = (x + z) (x + y) + (y + z) as...

Write F(x, y, z) = (x + z) (x + y) + (y + z) as a sum of minterms. Draw the circuit for F(a, b, c) = pi (3, 4, 6, 7)

3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input ...

1- Please answer all the question 2- with clear handwriting Thank you, 3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
