Create the Kmaps and then simplify for the following functions: a. F(x,y,z) = x'y'z' + x'yz...
Create the Kmaps and then simplify for the following functions:

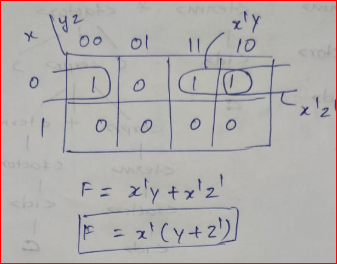

a. F(x,y,z) = x'y'z' + x'yz + x'yz'

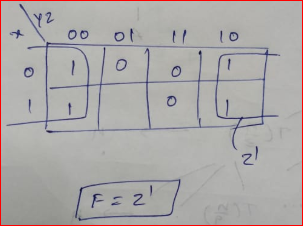

b. F(x,y,z) = x'y'z' + x'yz' + xy'z' + xyz'

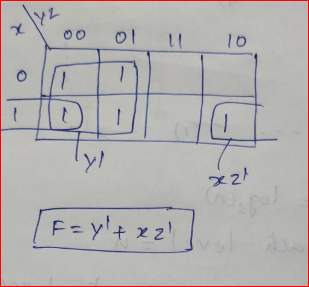

c. F(x,y,z) = y'z' + y'z + xyz'
Homework Answers
Add Answer to:
Create the Kmaps and then simplify for the following
functions:
a. F(x,y,z) = x'y'z' + x'yz...
Derive the truth table for the following Boolean functions: F(x,y,z) = x'y'z' + x'yz + xy'z'...
Derive the truth table for the following Boolean functions: F(x,y,z) = x'y'z' + x'yz + xy'z' + xyz
Which expression below is equivalent to F(X,Y,Z) = ((X'Y)'(XY)'(YZ')')' a. X'YZ' b. X'YZ + X'Y'Z c....
Which expression below is equivalent to F(X,Y,Z) = ((X'Y)'(XY)'(YZ')')' a. X'YZ' b. X'YZ + X'Y'Z c. X'Y + XY + YZ' d. X'Y + XY'Z'
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z +...
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z + x'yz + xyz? Please simplify the following Boolean expression to its simplest form: F(x, y) = (x + y)(xy)’ + ((x + y)(xy)’)’?
Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy)...
Due tomorrow! I need help. The Boolean function F(x, y) = x'y + xy' + (x'+y')(xy) can be simplified to: x'y' 1 xy x Å y What is the simplified expression for the following Kmap? X'Z + XZ Y' Z + X'Z Z Question 3 (10 points) 3. 1. W' + WX'YZ' 2. W'Y' + W'Y + WX'YZ' 3. W'Y' + W'X' + X'YZ' W' + X'YZ' Question 4 (2 points) 4. There are ____________ megabytes in a terabyte. 230...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down...
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
THIS IS MY QUIZ PROBLEM CAN YOU HELP ME ? The application of DeMorgan's theorems will...
THIS IS MY QUIZ PROBLEM CAN YOU
HELP ME ?
The application of DeMorgan's theorems will reduce the expression W = (X+Y+Z)'+(X' +Y+Z')'+(XY+Z)' to which sum- of-products expression? W=(X+Y+ZD+X'Y'Z'+XYZ W=X'Y'Z'+X'Y'Z'+X'Y'Z' W=X'Y'Z'+XY'Z+X'Z' + Y'Z' W=X'Y'Z'+XY'Z+(X'+Z)+(Y+Z) W=(X'+Y' + Z')+XYZ+XYZ W=X'Y'Z'+XY'Z+XZ+YZ
Please use algebraic manipulation to prove the following statement: x'y'z' + x'yz' + x'yz + xyz'...
Please use algebraic manipulation to prove the following statement: x'y'z' + x'yz' + x'yz + xyz' = x'z' + x'y + yz'
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x,...
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x, y, z) = (xy + xyz + xyz c. F(A,B,C,D) = 20,2,4,5,6,7,8,10,13,15) d. F(A,B,C,D) = A'B'C'D' + AB'C + B'CD' + ABCD' + BC'D e. F(A,B,C,D,E) = (0,1,4,5,16,17,21,25,29) 2. (12 pts) Consider the combinational logic circuit below and answer the following: a. Derive the Boolean expressions for Fi and F2 as functions of A, B, C, and D. b. List the complete truth table...
1. (10%) Simplify the following Boolean functions or expression, using three-variable maps (0,2,4, 5,6 F(x, y,)...
1. (10%) Simplify the following Boolean functions or expression, using three-variable maps (0,2,4, 5,6 F(x, y,) lal 4 bl F(r, y, z)xy x'yz y
7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y a) Create the...
7. If F(w,x,y,z) = w'x'y'z' + w'z + w'x'yz' + w'xy'z' + wx'y a) Create the Kmaps and then simplify F(w,x,y,z) (leave in sum-of-products form). b) After simplifying F(w,x,y,z) draw the combinational circuit that directly implements the Boolean expression.
Use Boolean Algebra to simplify the following Boolean expressions to three (3) literals. Please write down the intermediate steps. 1). F11(x,y,z) = x'yz+xyz +x'y'Z+xy'Z+ xy'z 2). F12(x,y,z) = (y'+xyz')' Question 2 [2 points) Obtain the function expression of F2 from the logic diagram. Question 3 [3 points) Obtain the truth table of the following function and rewrite the function in Canonical POS (Product of Maxterms) format: F3(a,b,c) = (a'+c)(a+b+c') +a'bc' Question 4 (2 points) Convert the following function to Canonical...
THIS IS MY QUIZ PROBLEM CAN YOU
HELP ME ?
The application of DeMorgan's theorems will reduce the expression W = (X+Y+Z)'+(X' +Y+Z')'+(XY+Z)' to which sum- of-products expression? W=(X+Y+ZD+X'Y'Z'+XYZ W=X'Y'Z'+X'Y'Z'+X'Y'Z' W=X'Y'Z'+XY'Z+X'Z' + Y'Z' W=X'Y'Z'+XY'Z+(X'+Z)+(Y+Z) W=(X'+Y' + Z')+XYZ+XYZ W=X'Y'Z'+XY'Z+XZ+YZ
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x, y, z) = (xy + xyz + xyz c. F(A,B,C,D) = 20,2,4,5,6,7,8,10,13,15) d. F(A,B,C,D) = A'B'C'D' + AB'C + B'CD' + ABCD' + BC'D e. F(A,B,C,D,E) = (0,1,4,5,16,17,21,25,29) 2. (12 pts) Consider the combinational logic circuit below and answer the following: a. Derive the Boolean expressions for Fi and F2 as functions of A, B, C, and D. b. List the complete truth table...
1. (10%) Simplify the following Boolean functions or expression, using three-variable maps (0,2,4, 5,6 F(x, y,) lal 4 bl F(r, y, z)xy x'yz y
