Draw the circuit that implements each of the following equations: X'Y+WZ X'Y+WY+Z' (XZ'+XY'+WZ)' ((W'+Y)'+(Z(X'+Z)))'

Question

Question

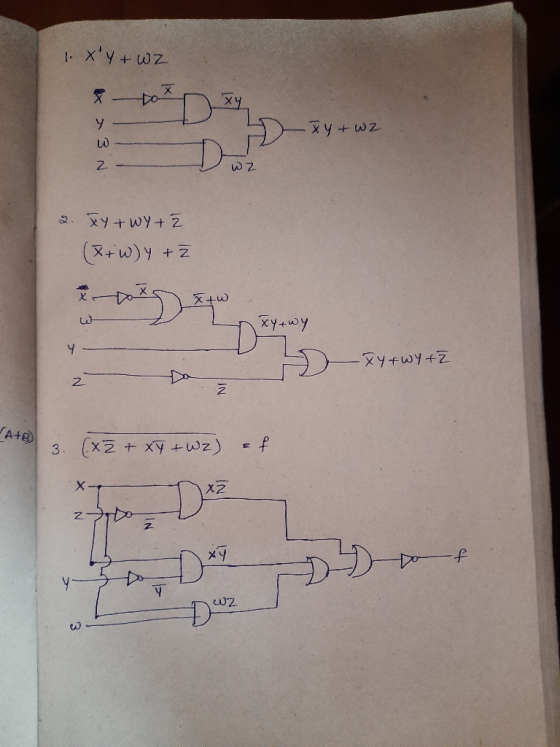

Draw the circuit that implements each of the following equations:

X'Y+WZ
X'Y+WY+Z'
(XZ'+XY'+WZ)'

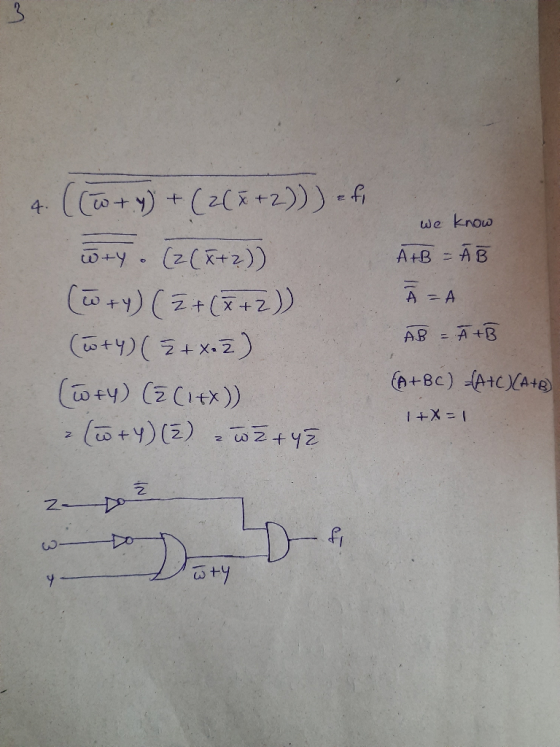

((W'+Y)'+(Z(X'+Z)))'

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2
