Homework Answers
Add Answer to:

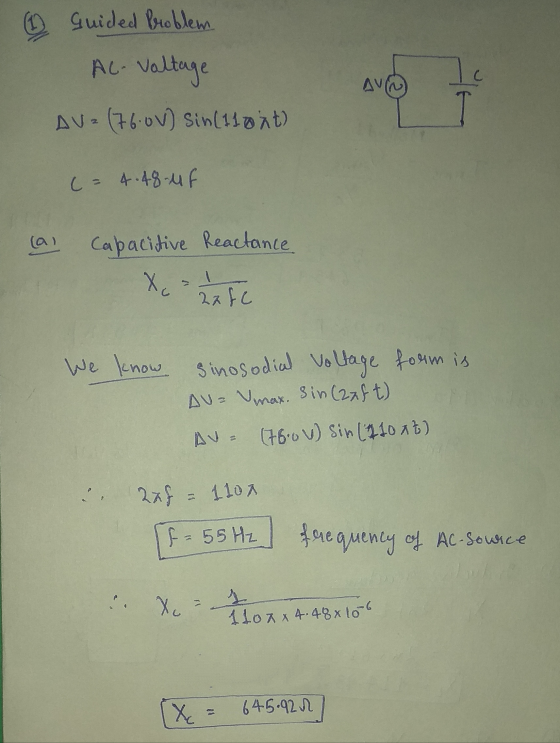

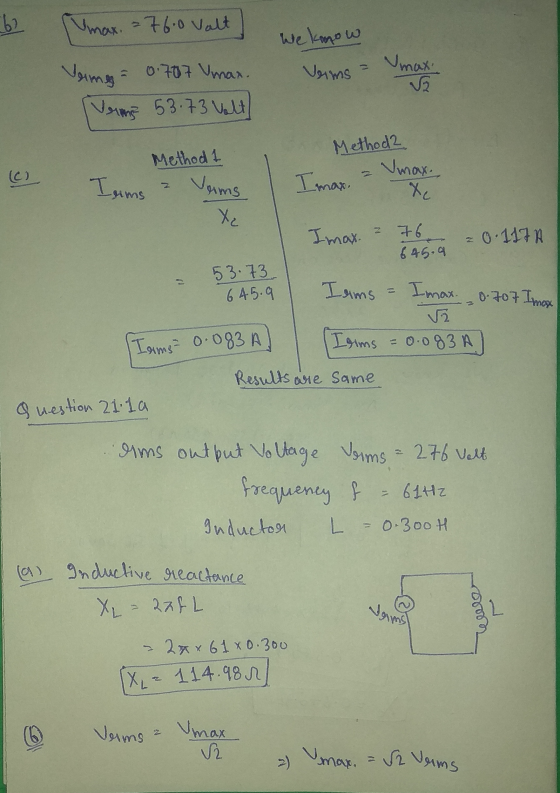

help with all parts

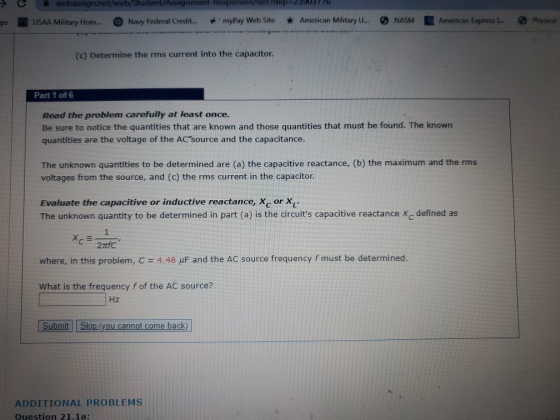

Part 3 of 8 Apply expressions for the rms current or voltage...
help please USAA Military Hom... Navy Federal Credit... myPay Web Site American Military U... 5 NASM...
help please
USAA Military Hom... Navy Federal Credit... myPay Web Site American Military U... 5 NASM American Express PRACTICE IT Use the worked example above to help you solve this problem. An AC voltage source has an output of Av = (1.49 x 102 V) sin 2nft. This source is connected to a 1.38 x 102 resistor as in the figure. Find the rms voltage and rms current in the resistor. rms 1.05e2 v Irms 1.10 x Your response differs...
An AC source with an output rms voltage of 36 V at a frequency of 60...
An AC source with an output rms voltage of 36 V at a frequency of 60 Hz is connected across a 12 µF capacitor. Find (a) the capacitive reactance, (b) the rms current, and (c) the maximum current in the circuit.
An AC generator with an output rms voltage of 42 V at a frequency of 60...
An AC generator with an output rms voltage of 42 V at a frequency of 60 Hz is connected across a 3 µF capacitor. Find the following. (a) capacitive reactance ____Ω (b) rms current _____ A (c) maximum current in the circuit ___ A
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50...
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...
1) What is the power outlet for an rms voltage of a standard 220 V? 2)...
1) What is the power outlet for an rms voltage of a standard 220 V? 2) Consider a driven RLC series AC circuit. At frequency f1 the capacitive reactance is twice the inductive reactance. Determine frequency f2 as a function of f1 so that the inductive reactance is twice the capacitive reactance. 3) A standard 120V ac source, connecting wires, and two ideal identical transformers are available. Each transformer has a different number of turns in the two coils. How...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?
A multimeter in an AC RLC circuit records an rms current of 0.200 A and a...
A multimeter in an AC RLC circuit records an rms current of 0.200 A and a 65.0-Hz rms generator voltage of 27.5 V. The circuit contains a 40.0 Ω resistor, a 0.42 H inductor, and an unknown capacitor in series. The voltage is leading ahead of the current. a. Calculate the impedance of the circuit. ________________ b. Calculate the capacitive reactance. ________________ c. Calculate the capacitance. ________________ d. Calculate the average power dissipated in the circuit.
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R
An AC source has an output rms voltage of 78 V at a frequency of 80...
An AC source has an output rms voltage of 78 V at a frequency of 80 Hz. If the source is connected across a 25mH inductor, what are (a) the inductive reactance of the circuit, (b) the rms current in the circuit and (c) the maximum current in the circuit?
help please
USAA Military Hom... Navy Federal Credit... myPay Web Site American Military U... 5 NASM American Express PRACTICE IT Use the worked example above to help you solve this problem. An AC voltage source has an output of Av = (1.49 x 102 V) sin 2nft. This source is connected to a 1.38 x 102 resistor as in the figure. Find the rms voltage and rms current in the resistor. rms 1.05e2 v Irms 1.10 x Your response differs...
A series AC circuit contains a resistor, an inductor of 250 mH, a capacitor of 4.50 uF, and a source with AV = 240 V operating at 50.0 Hz. The max maximum current in the circuit is 170 mA. (a) Calculate the inductive reactance. The inductive reactance depends on the value of the inductance and the frequency of the source. Q (b) Calculate the capacitive reactance. (c) Calculate the impedance. kn (d) Calculate the resistance in the circuit. kn. (e)...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R
