An AC source with an output rms voltage of 36 V at a frequency of 60...

An AC source with an output rms voltage of 36 V at a frequency of 60 Hz is connected across a 12 µF capacitor. Find (a) the capacitive reactance, (b) the rms current, and (c) the maximum current in the circuit.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

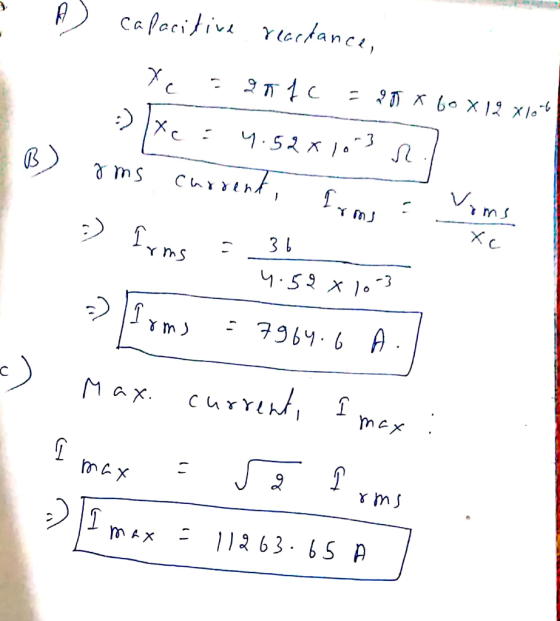

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An AC source with an output rms voltage of 36 V at a frequency of 60...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An AC generator with an output rms voltage of 42 V at a frequency of 60...

    An AC generator with an output rms voltage of 42 V at a frequency of 60 Hz is connected across a 3 µF capacitor. Find the following. (a) capacitive reactance ____Ω (b) rms current _____ A (c) maximum current in the circuit ___ A

  • An AC source has an output rms voltage of 71.0 V at a frequency of 41.5...

    An AC source has an output rms voltage of 71.0 V at a frequency of 41.5 Hz. The source is connected across a 25.5-mH inductor. (a) Find the inductive reactance of the circuit. (b) Find the rms current in the circuit. (c) Find the maximum current in the circuit.

  • An AC source has an output rms voltage of 78 V at a frequency of 80...

    An AC source has an output rms voltage of 78 V at a frequency of 80 Hz. If the source is connected across a 25mH inductor, what are (a) the inductive reactance of the circuit, (b) the rms current in the circuit and (c) the maximum current in the circuit?

  • 2/10 points Previous Answers SerPSE10 32.4P.012 An AC source with an output rms voltage of 27.0...

    2/10 points Previous Answers SerPSE10 32.4P.012 An AC source with an output rms voltage of 27.0 V at a frequency of 60.0 Hz is connected across a 11.2-uF capacitor (a) Find the capacitive reactance. (b) Find the ms current. (c) Find the maximum current in the circuit. (d) Does the capacitor have its maximum charge when the current has its maximum value? O Yes No Explain. This answer has not been graded yet

  • In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude...

    In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R

  • An AC generator has an output rms voltage of 92 V at a frequency of 64 Hz. If the generator is co...

    An AC generator has an output rms voltage of 92 V at a frequency of 64 Hz. If the generator is connected across a 20 mH inductor, find the following. (a) inductive reactance; and (b) rms current O A) 11.4 ohm; b) 8.45 A O B a)8.4 ohm; b) 8.45 A O C) 11.4 ohm; b) 61.4A O D a) 8.04 ohm; b) 11.4 A An AC generator has an output rms voltage of 92 V at a frequency of...

  • An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...

    An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance  of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?

  • An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz

    An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...

  • help with all parts Part 3 of 8 Apply expressions for the rms current or voltage...

    help with all parts Part 3 of 8 Apply expressions for the rms current or voltage as appropriate. (cont.) The rms voltage is given by the following. Δν. max Δν. rms V2 = 0.707AV. max = Substituting the maximum voltage, we obtain AV AV max rms V2 = 0.707AV = 0.707(160 V) = 113 V. An rms voltage of 113 V corresponds to a maximum voltage of 160 V. max What is the maximum current Imax in the resistor? 1...

  • 5. [-/0.45 Points) DETAILS MY NOTES PRACTICE ANOTHER The output voltage of an AC source is...

    5. [-/0.45 Points) DETAILS MY NOTES PRACTICE ANOTHER The output voltage of an AC source is given by Av = 120 sin 38.Ort, where av is in volts and t is in seconds. The source is connected across a 0.580-H inductor (a) Find the frequency of the source. HZ (b) Find the rms voltage across the inductor. (c) Find the inductive reactance of the circuit. (d) Find the rms current in the inductor. A (e) Find the maximum current in...
