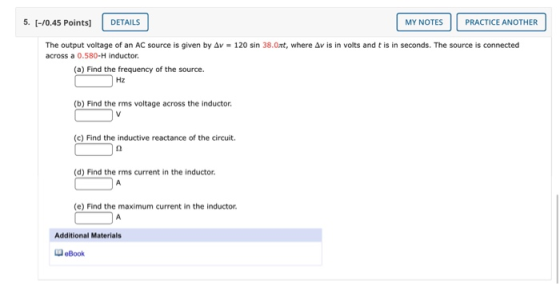

5. [-/0.45 Points) DETAILS MY NOTES PRACTICE ANOTHER The output voltage of an AC source is given by Av = 120 sin 38.Ort, wher
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

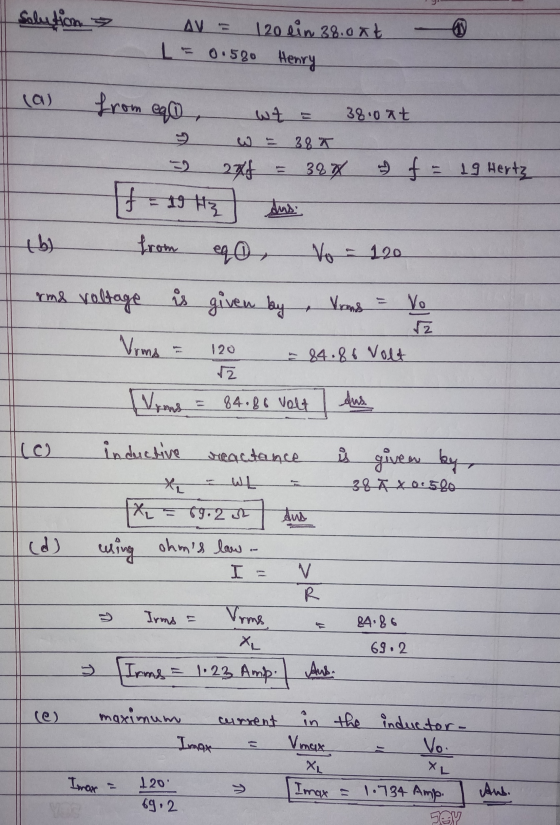

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
5. [-/0.45 Points) DETAILS MY NOTES PRACTICE ANOTHER The output voltage of an AC source is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An AC source has an output rms voltage of 71.0 V at a frequency of 41.5...

    An AC source has an output rms voltage of 71.0 V at a frequency of 41.5 Hz. The source is connected across a 25.5-mH inductor. (a) Find the inductive reactance of the circuit. (b) Find the rms current in the circuit. (c) Find the maximum current in the circuit.

  • An AC source has an output rms voltage of 78 V at a frequency of 80...

    An AC source has an output rms voltage of 78 V at a frequency of 80 Hz. If the source is connected across a 25mH inductor, what are (a) the inductive reactance of the circuit, (b) the rms current in the circuit and (c) the maximum current in the circuit?

  • An AC source with an output rms voltage of 36 V at a frequency of 60...

    An AC source with an output rms voltage of 36 V at a frequency of 60 Hz is connected across a 12 µF capacitor. Find (a) the capacitive reactance, (b) the rms current, and (c) the maximum current in the circuit.

  • The output voltage of an AC generator is given by Δv = (1.01 ✕ 102 V)sin(39πt)....

    The output voltage of an AC generator is given by Δv = (1.01 ✕ 102 V)sin(39πt). The generator is connected across a 0.500 H inductor. Find the following. (a) frequency of the generator Hz (b) rms voltage across the inductor V (c) inductive reactance Ω (d) rms current in the inductor A (e) maximum current in the inductor A (f) average power delivered to the inductor W (g) Find an expression for the instantaneous current. (Use the following as necessary:...

  • An AC generator has an output rms voltage of 92 V at a frequency of 64 Hz. If the generator is co...

    An AC generator has an output rms voltage of 92 V at a frequency of 64 Hz. If the generator is connected across a 20 mH inductor, find the following. (a) inductive reactance; and (b) rms current O A) 11.4 ohm; b) 8.45 A O B a)8.4 ohm; b) 8.45 A O C) 11.4 ohm; b) 61.4A O D a) 8.04 ohm; b) 11.4 A An AC generator has an output rms voltage of 92 V at a frequency of...

  • 12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with...

    12. A sinusoidal voltage Δv = (75.0 V)sin(120t) is applied to a series RLC circuit with L = 20.0 mH, C = 130.0 μF, and R = 32.0 Ω. (a) What is the impedance of the circuit? Ω (b) What is the maximum current in the circuit? A 11.An AC power source has an rms voltage of 120 V and operates at a frequency of 60.0 Hz. If a purely inductive circuit is made from the power source and a...

  • In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude...

    In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R

  • An RLC circuit consists of an AC voltage source with a maximum voltage of 131 Volts...

    An RLC circuit consists of an AC voltage source with a maximum voltage of 131 Volts connected in series to a resistor, a capacitor, and an inductor. At the resonant frequency, the inductive reactance is 15 Ohms and the total impedance of the circuit is 29 Ohms. What is the average power produced by the battery at 2.7 times the resonant frequency in Watts?

  • When an AC source is connected across a 23.0 12 resistor, the output voltage is given...

    When an AC source is connected across a 23.0 12 resistor, the output voltage is given by AV = (160 V)sin(70st). Determine the following quantities. (a) peak voltage (b) rms voltage v (c) rms current (d) peak current (e) Find the current when t = 0.0045 s.

  • help with all parts Part 3 of 8 Apply expressions for the rms current or voltage...

    help with all parts Part 3 of 8 Apply expressions for the rms current or voltage as appropriate. (cont.) The rms voltage is given by the following. Δν. max Δν. rms V2 = 0.707AV. max = Substituting the maximum voltage, we obtain AV AV max rms V2 = 0.707AV = 0.707(160 V) = 113 V. An rms voltage of 113 V corresponds to a maximum voltage of 160 V. max What is the maximum current Imax in the resistor? 1...
