Homework Answers
Add Answer to:
6&7 please
A tube open at one end produces a standing wave with a fundamental frequency...
A tube open at one end produces a standing wave with a fundamental frequency of 625...

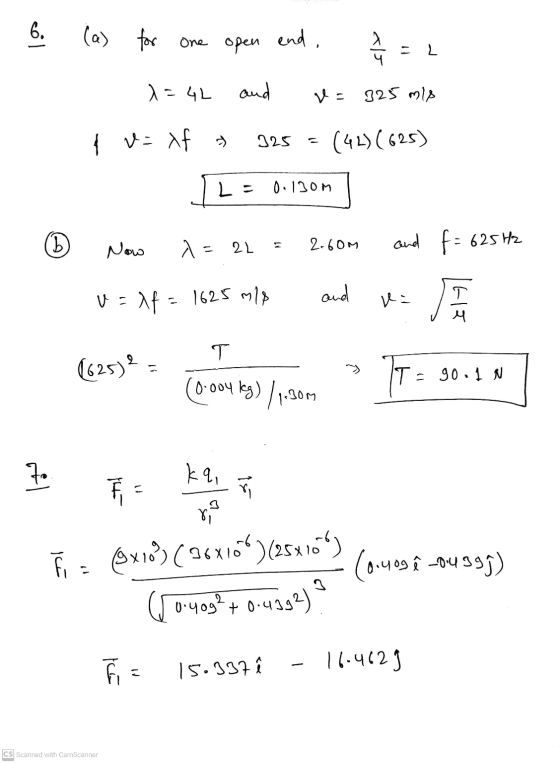

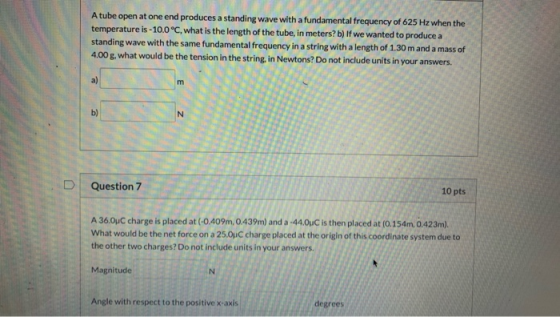

A tube open at one end produces a standing wave with a fundamental frequency of 625 Hz when the temperature is -10.0 °C, what is the length of the tube, in meters? b) If we wanted to produce a standing wave with the same fundamental frequency in a string with a length of 1.30 m and a mass of 4.00 g, what would be the tension in the string, in Newtons? a)_____ m b) _____ N
6. The standing wave is formed in a tube of length L which is open at...
6. The standing wave is formed in a tube of length L which is open at both ends. The shape of this standing wave is shown in the picture, whereas the frequency of the 5th harmonic is 450 Hz. Speed of sound is 343 m/s. Find (a) length L of the tube, and (b) harmonic’s number n; (c) wavelength, and (d) frequency of the wave shown in the picture.
A tube, open at the left end and closed at the right, has standing-wave patterns at...
A tube, open at the left end and closed at the right, has standing-wave patterns at frequencies of 198 Hz and 330 Hz. The speed of sound in air is 343 m/s. The lowest two harmonics (normal modes) that these two standing waves could be are m = and The frequency of the fundamental (m = 1) is Hz. The wavelength of the fundamental mode is m. The tube is m long
A standing wave is formed on a string that is 37 m long, has a mass...
A standing wave is formed on a string that is 37 m long, has a mass per unit length 0.00874 kg/m, and is stretched to a tension of 15 N. 1) Find the fundamental frequency. Answer in units of cycles/s. 2) Find the next frequency that could cause a standing wave pattern. Answer in units of cycles/s.
7. What is the lowest frequency (excluding the fundamental) at which standing wave can occur in...
7. What is the lowest frequency (excluding the fundamental) at which standing wave can occur in a 0.65-m long pipe with both ends open. The speed of sound in air is 335 m/s.
A string vibrates at its third-harmonic frequency Review Part A A string vibrates at its third-harmonic frequency. The amplitude at a point 42 cm from one end is half the maximum amplitude How long i...
A string vibrates at its third-harmonic frequency
Review Part A A string vibrates at its third-harmonic frequency. The amplitude at a point 42 cm from one end is half the maximum amplitude How long is the string? Express your answer to two significant figures and include the appropriate units. Value Units Review Part A A metal wire under tension To vibrates at its fundamental frequency For what tension will the third-harmonic frequency be the same as the fundamental frequency at...
The D-string on a properly tuned guitar produces a tone with a fundamental frequency of 146.8...
The D-string on a properly tuned guitar produces a tone with a fundamental frequency of 146.8 Hz. The oscillating length of a D-string on a certain guitar is 0.65 m. This same length of string is weighed and found have a mass of 1.4×10-3 kg. 25% Part (a) At what tension, in newtons, must the D-string must be stretched in order for it to be properly tuned? T = 78.443 T = 78.44 ✔ Correct! 25% Part (b) What is the...
12. A longitudinal standing wave can be created in a long, thin aluminum rod by stroking...
12. A longitudinal standing wave can be created in a long, thin aluminum rod by stroking the rod with very dry fingers. This is often done as a physics demonstration, creating a high-pitched, very annoying whine. From a wave perspective, the standing wave is equivalent to a sound standing wave in an open-open tube. In particular, both ends of the rod are anti-nodes. What is the fundamental frequency of a 2.50 m -long aluminum rod? The speed of sound in...
2016 (d) The speed of a transverse wave on a string is 110 m s¯1 ....
2016 (d) The speed of a transverse wave on a string is 110 m s¯1 . The tension in the string is 340 N. Calculate the mass per unit length of the string. (o) A certain radioactive sample has a half-life of 3.83 days and is measured to have an activity of 63 Bq. Calculate how many radioactive atoms are present in the sample at the time of the measurement. Q2: (c) A person hums into the top of a...
A plunger can be moved back and forth in a hollow tube that is L = 150 cm long with two open ends. A stretched wire is placed near the open end, as shown in the figure. The l = 50.0 cm long, 5.0 gram...
A plunger can be moved back and forth in a hollow tube that is L
= 150 cm long with two open ends. A stretched wire is placed near
the open end, as shown in the figure. The l = 50.0 cm long, 5.0
gram wire is fixed at both ends and oscillates in its fundamental
mode. By resonance (meaning that the frequency of the string equals
the frequency of the air column in the tube), the string sets the...
A tube, open at the left end and closed at the right, has standing-wave patterns at frequencies of 198 Hz and 330 Hz. The speed of sound in air is 343 m/s. The lowest two harmonics (normal modes) that these two standing waves could be are m = and The frequency of the fundamental (m = 1) is Hz. The wavelength of the fundamental mode is m. The tube is m long
A string vibrates at its third-harmonic frequency
Review Part A A string vibrates at its third-harmonic frequency. The amplitude at a point 42 cm from one end is half the maximum amplitude How long is the string? Express your answer to two significant figures and include the appropriate units. Value Units Review Part A A metal wire under tension To vibrates at its fundamental frequency For what tension will the third-harmonic frequency be the same as the fundamental frequency at...
A plunger can be moved back and forth in a hollow tube that is L
= 150 cm long with two open ends. A stretched wire is placed near
the open end, as shown in the figure. The l = 50.0 cm long, 5.0
gram wire is fixed at both ends and oscillates in its fundamental
mode. By resonance (meaning that the frequency of the string equals
the frequency of the air column in the tube), the string sets the...
