Q.2. (a) Determine the region of operation for the following transistor when B = 100 and...
Determine the region of operation for the following transistor when B = 100 and VeB =...
Determine the region of operation for the following transistor when B = 100 and VeB = 0.7 V. Also find I and V. +5 V -15 V 1K 1K V 0
Q.2. (a) Determine the region of operation for the following transistor when B = 100 and...

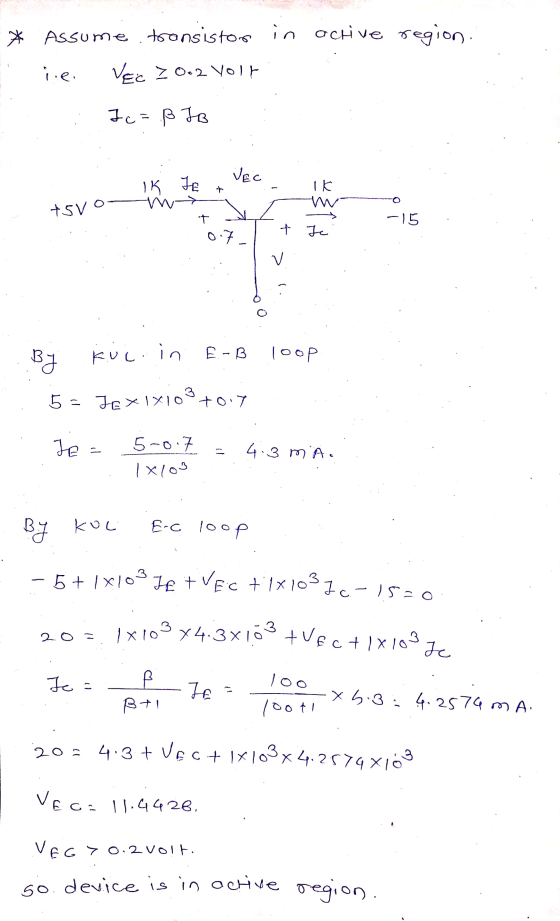

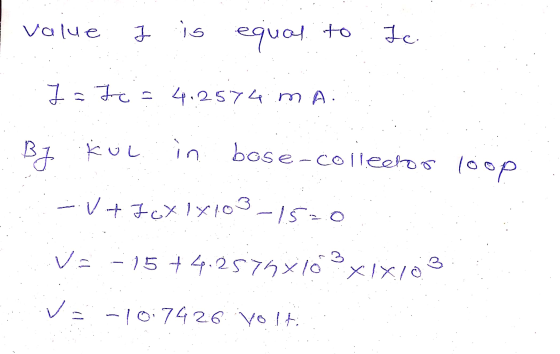

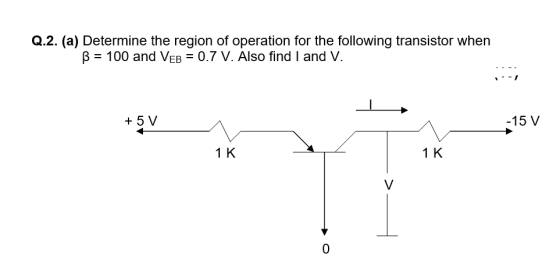

Q.2. (a) Determine the region of operation for the following transistor when B = 100 and Ves = 0.7 V. Also find I and V. (10) I + 5 V -15 V 1K 1K V 0 (b) For the circuit shown below, let B = 100 and VBE = 0.7 V. (a) Find VTH and RTH for the base circuit. (b) Determine Ice and VcEO + 5V +15V 500 ΚΩ 50 ΚΩ + 3V 500 ΚΩ 70 ΚΩ 5 ΚΩ...
(2+5 pts) Consider the bias circuit below for a transistor amplifier designed for active region operation....
(2+5 pts) Consider the bias circuit below for a transistor amplifier designed for active region operation. The desired bias point parameters are lg = 3 mA and Ic = 2.97 mA. Assume VBE- 0.7 V and VT=25 mV. Determine the emitter voltage VE . Choose the best answer. VCC +15 V Vc RBB VB LVE V BB RE 500 S2 1.49 V O2v 01.5V O 0.7V
I. Calculate the αF and γ needed to produce a β-99 if αF-y. (4 pt) 2. Consider a circuit on page ...
just question 2
I. Calculate the αF and γ needed to produce a β-99 if αF-y. (4 pt) 2. Consider a circuit on page 9/38 of the handout. RE-10 k2, Rc-10 k2, VEE-5 V, Vcc-5 V, VEC(sat,-0.2 V, Vs-0 V, VEB-0.7 V, β-120. Calculate the Q-point (Ic,VEc) and comment on the operating region of Transistor (Note: There is a misprint in circuit. Instead of Vec, it should be VeB). (6 pts)
I. Calculate the αF and γ needed to produce...
Q. 3. Design a transistor biasing circuit as shown below. Assume B = 100, Ica =...
Q. 3. Design a transistor biasing circuit as shown below. Assume B = 100, Ica = 10 mA, VE = Vcc/3, VceQ = Vcc /3 and VBE = 0.7 V. RTH = 0.1 (1 + B)RE . Also find the power rating of all resistors. (25) > +15V R2 Rc Vio R1 RE
thanks Example 15.2 When the transistor is on, VBE-0.7V and B-50. Analyze the operation region of...
thanks
Example 15.2 When the transistor is on, VBE-0.7V and B-50. Analyze the operation region of the transistor and calculate the output voltage when VBB is OV, 1V, and 3V, respectively. Vec 12V R2k Ry 5kQ BB L15 Large Signal
Q. 3. Design a transistor biasing circuit as shown below. Assume ß = 100, lco =...
Q. 3. Design a transistor biasing circuit as shown below. Assume ß = 100, lco = 10 mA, VE = Vcc/3, VCEQ = Vcc/3 and VBE = 0.7 V. RTH = 0.1 (1 + B)RE . Also find the power rating of all resistors. +15V R2 Rc V10 R1 RE
Refer to the following circuit (Q, is a generic transistor), assuming B = 200 when the...
Refer to the following circuit (Q, is a generic transistor), assuming B = 200 when the transistor is in the active region. If R, is open, calculate VB, VEVO R3 If R, is short, calculate le, le and Vc 3.3k $47ko If R is short, calculate le and Vc If R, is short, calculate Vic, and I 12V Q1 Vcc R1 R2 3120 R4 1.0k
Problem 2 (15 points) In the circuit below, the transistor has B=50 and VEB = 0.7V....
Problem 2 (15 points) In the circuit below, the transistor has B=50 and VEB = 0.7V. Find the values of VB, VE, and Vc, and verify that the transistor is operating in the active mode. What is the largest value that Rc can have while the transistor remains in the active mode? +3V SR 3222 Vio R: 20 ks OV -
ENGR 4803 Mechatronics exam review question 2. (25 pts.) For the transistor shown below, let B...
ENGR 4803 Mechatronics exam review question
2. (25 pts.) For the transistor shown below, let B = 25. Determine V, such that the transistor is on the active region with Vce= 3 V. Vcc=6 V 3 Rc=1 k12 Ri=15 k12 View VCE R2=100 kn = -6v
Determine the region of operation for the following transistor when B = 100 and VeB = 0.7 V. Also find I and V. +5 V -15 V 1K 1K V 0
Q.2. (a) Determine the region of operation for the following transistor when B = 100 and Ves = 0.7 V. Also find I and V. (10) I + 5 V -15 V 1K 1K V 0 (b) For the circuit shown below, let B = 100 and VBE = 0.7 V. (a) Find VTH and RTH for the base circuit. (b) Determine Ice and VcEO + 5V +15V 500 ΚΩ 50 ΚΩ + 3V 500 ΚΩ 70 ΚΩ 5 ΚΩ...
(2+5 pts) Consider the bias circuit below for a transistor amplifier designed for active region operation. The desired bias point parameters are lg = 3 mA and Ic = 2.97 mA. Assume VBE- 0.7 V and VT=25 mV. Determine the emitter voltage VE . Choose the best answer. VCC +15 V Vc RBB VB LVE V BB RE 500 S2 1.49 V O2v 01.5V O 0.7V
just question 2
I. Calculate the αF and γ needed to produce a β-99 if αF-y. (4 pt) 2. Consider a circuit on page 9/38 of the handout. RE-10 k2, Rc-10 k2, VEE-5 V, Vcc-5 V, VEC(sat,-0.2 V, Vs-0 V, VEB-0.7 V, β-120. Calculate the Q-point (Ic,VEc) and comment on the operating region of Transistor (Note: There is a misprint in circuit. Instead of Vec, it should be VeB). (6 pts)
I. Calculate the αF and γ needed to produce...
Q. 3. Design a transistor biasing circuit as shown below. Assume B = 100, Ica = 10 mA, VE = Vcc/3, VceQ = Vcc /3 and VBE = 0.7 V. RTH = 0.1 (1 + B)RE . Also find the power rating of all resistors. (25) > +15V R2 Rc Vio R1 RE
thanks
Example 15.2 When the transistor is on, VBE-0.7V and B-50. Analyze the operation region of the transistor and calculate the output voltage when VBB is OV, 1V, and 3V, respectively. Vec 12V R2k Ry 5kQ BB L15 Large Signal
Q. 3. Design a transistor biasing circuit as shown below. Assume ß = 100, lco = 10 mA, VE = Vcc/3, VCEQ = Vcc/3 and VBE = 0.7 V. RTH = 0.1 (1 + B)RE . Also find the power rating of all resistors. +15V R2 Rc V10 R1 RE
Refer to the following circuit (Q, is a generic transistor), assuming B = 200 when the transistor is in the active region. If R, is open, calculate VB, VEVO R3 If R, is short, calculate le, le and Vc 3.3k $47ko If R is short, calculate le and Vc If R, is short, calculate Vic, and I 12V Q1 Vcc R1 R2 3120 R4 1.0k
Problem 2 (15 points) In the circuit below, the transistor has B=50 and VEB = 0.7V. Find the values of VB, VE, and Vc, and verify that the transistor is operating in the active mode. What is the largest value that Rc can have while the transistor remains in the active mode? +3V SR 3222 Vio R: 20 ks OV -
ENGR 4803 Mechatronics exam review question
2. (25 pts.) For the transistor shown below, let B = 25. Determine V, such that the transistor is on the active region with Vce= 3 V. Vcc=6 V 3 Rc=1 k12 Ri=15 k12 View VCE R2=100 kn = -6v
