Question

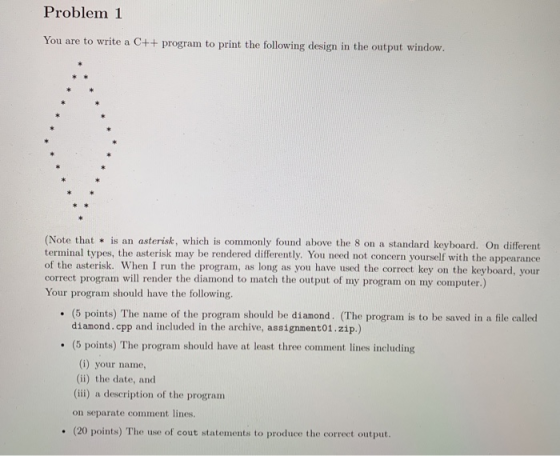

Problem 1 You are to write a C++ program to print the following design in the output window. (Note that * is an asterisk, which is commonly found above the 8 on a standard keyboard. On different terminal types, the asterisk may be rendered differently. You need not concern yourself with the appearance of the asterisk. When I run the program, as long as you have used the correct key on the keyboard, your correct program will render the diamond to match the output of my program on my computer.) Your program should have the following. (5 points) The name of the program should be diamond. (The program is to be saved in a file called diamond.cpp and included in the archive, assignment01.zip.) . (5 points) The program should have at least three comment lines including (i) your name, (ii) the date, and (iii) a description of the program on separate comment lines. (20 points) The use of cout statements to produce the correct output. .

Can someone please code this problem in c++?

Answer 1

Comment down for any queries
Please give a thumbs up if you are satisfied with the answer

#include <iostream>
#include<cmath>
#include<cstring>
using namespace std;

int main()
{
int rows;
cout << "\n Printitng patteren of Diamond:\n";
cout << "############################################\n";
cout << " Enter the number of Rows(Half): ";
cin >> rows;
for(int i=0;i<rows;i++)
{
for(int j=1;j<=rows-i;j++)
cout<<" ";
cout<<"*";
for(int j=1;j<=2*i-1;j++)
cout<<" ";
if(i!=0)
cout<<"*";
cout<<endl;
}
for(int i=rows-1;i>=0;i--)
{
for(int j=1;j<=rows-i;j++)
cout<<" ";

cout<<"*";
for(int j=1;j<=2*i-1;j++)
cout<<" ";

if(i!=0)
cout<<"*";
cout<<endl;;
}
}

Comment down for any queries
Please give a thumbs up if you are satisfied with the answer

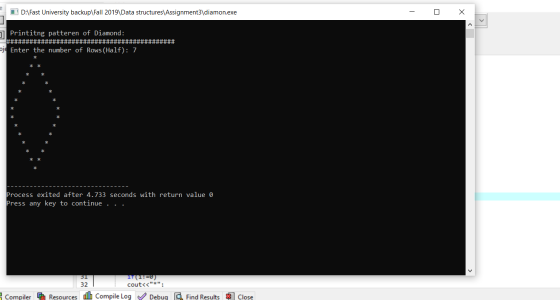

D:\Fast University backup\Fall 2019\Data structures\Assignment3\diamon.exe - X > Printitng patteren of Diamond: ############################################ oje Enter the number of Rows (Half): 7 Process exited after 4.733 seconds with return value o Press any key to continue. 31 1T1.EU) 32 cout<<"*": Compiler Resources dh Compile Log Debug Find Results Close
