Homework Answers

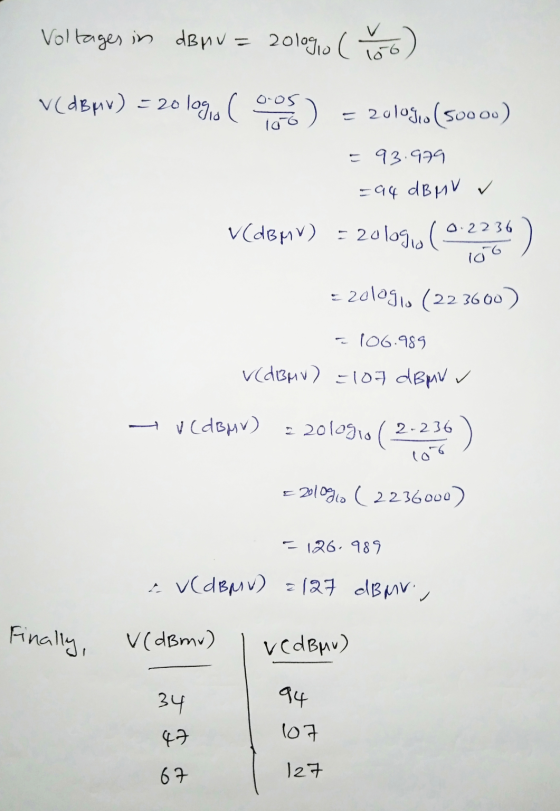

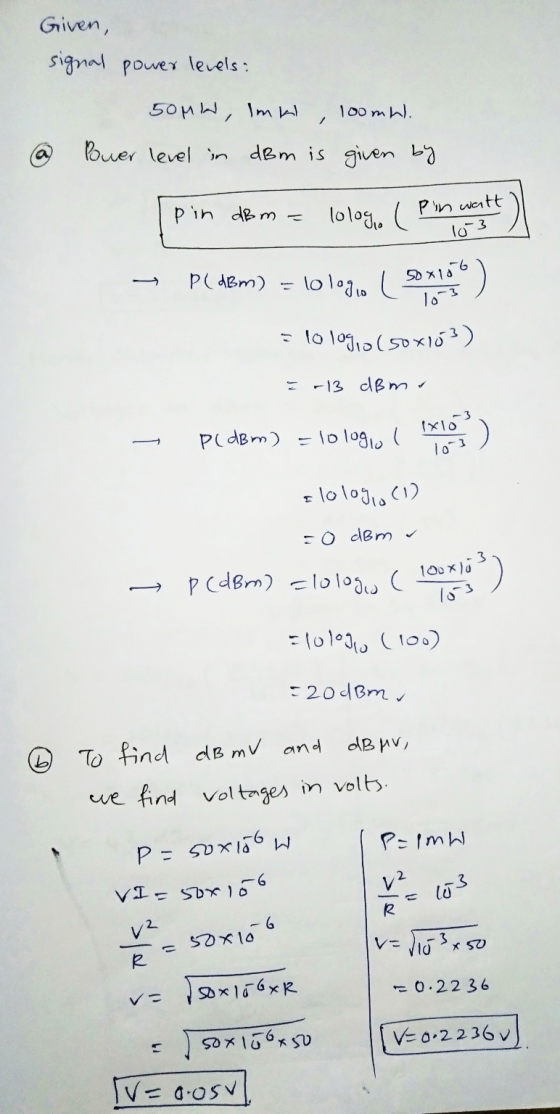

Comment for doubts. Upvote if u like it.
Thank you.
Add Answer to:

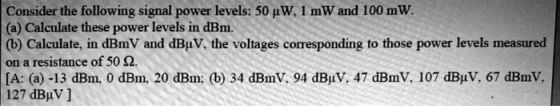

Consider the following signal power levels: 50 uW, 1 mW and 100 mW. (a) Calculate these...
