An electric heater is immersed in a well-stirred tank. Solvent at 19°C, which has a heat...

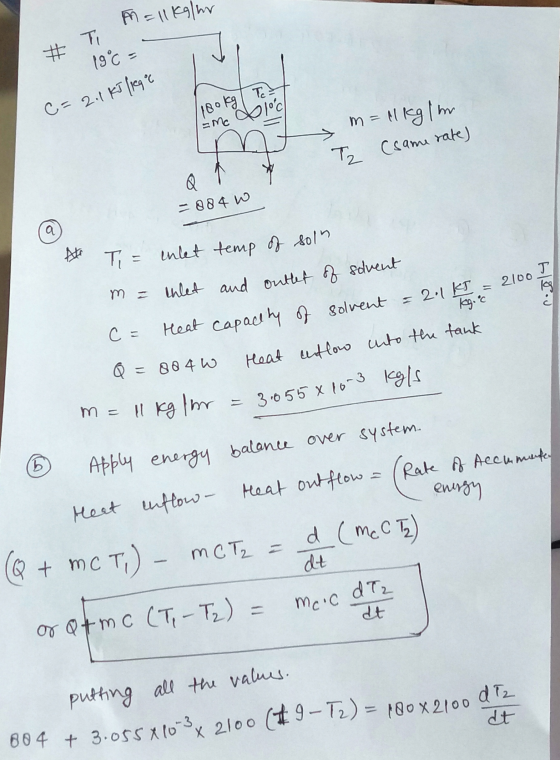

An electric heater is immersed in a well-stirred tank. Solvent
at 19°C, which has a heat capacity of 2.1 kJ/(kg°C), is fed at a
speed of 11 kg/h. The hot solvent is discharged at the same rate.
The tank initially contains 180 kg of cold solvent at 10°C. The
heat flow of the electric heater is 884 W.

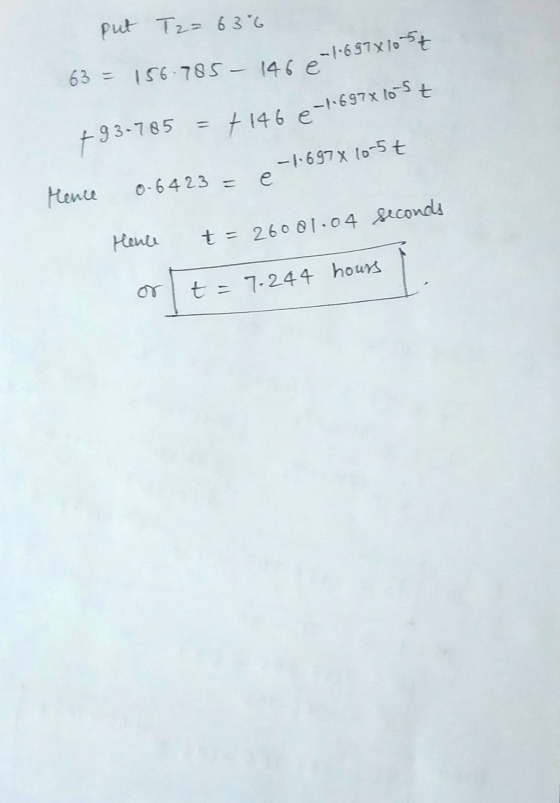

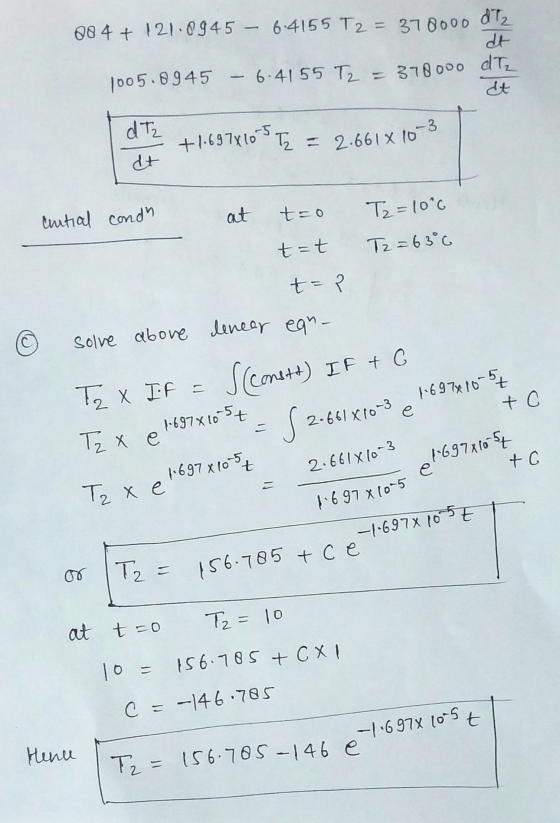

Calculate the time for the temperature of the solvent being
discharged to be 63°C (write the answer in hours and with two
decimals)
Homework Answers
