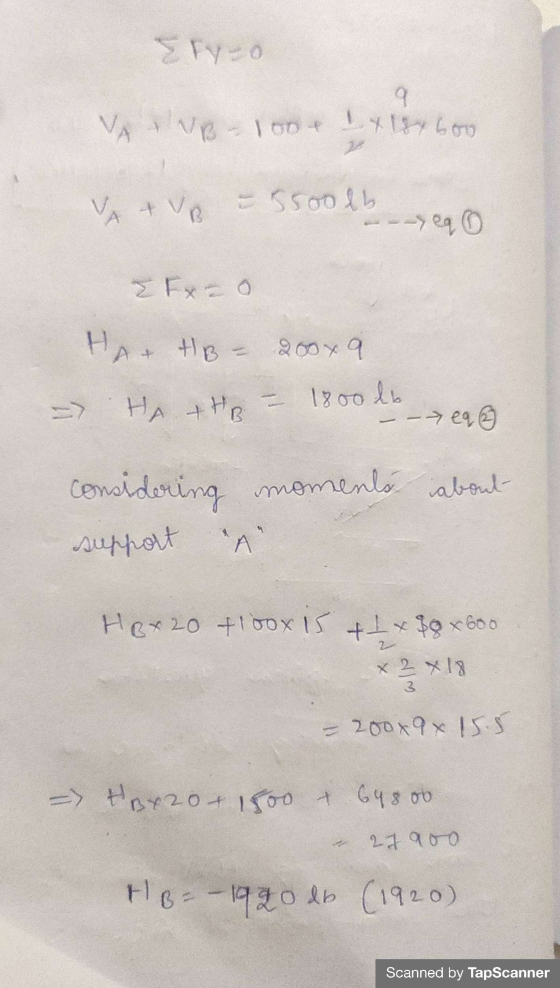

Add Answer to:
14. Frames Determine the reactions at A & B for the following loaded frame with pin...
Determine the reactions at A & B for the following loaded frame with pin at C....
Determine the reactions at A & B for the following loaded frame with pin at C. Indicate the direction of the final reactions. 100 lb. 20" 9-11 200 lb/in 18" 600 lb./in 30"
Determine the reactions at A & B for the following loaded frame with pin at C....
Determine the reactions at A & B for the following loaded frame with pin at C. Indicate the direction of the final reactions. 100 lb. С А. 20" 91 B 200 lb./in 18" 600 lb./in 30" Determine the Principal Moments of Inertia about a centroidal axis for the following section, and sketch Mohr's circle with the appropriate labels. 5" 1" 1 1" 10" 1"
A pin-connected frame is loaded as shown in the figure. a.) determine the reaction at C...
A
pin-connected frame is loaded as shown in the figure.
a.) determine the reaction at C of the pin- connected
frame.
b.) determine the reaction at B of the pin- connected
frame.
c.) determine the shear force acting on section 2 (just to the
right of the 600 N load) of the pin-connected frame.
с 800 N 0.8 m ! 2 D B o 600 N 0.8 m 0.9 m 0.9 m A
Determine the magnitudes of all pin reactions for the frame loaded as shown. 880 N 355...
Determine the magnitudes of all pin reactions for the frame loaded as shown. 880 N 355 705 31° 61° Answers: A-
For the frame pictured below, determine the pin reactions at A, B, and C. 20'-0" A...
For the frame pictured below, determine the pin reactions at A, B, and C. 20'-0" A 12'-0" 4 kips E 12'-0" 10'-0" 10'-0" 6 kips
Q2) For the frame shown in Fig.2, determine the reactions at the pin A and the...
Q2) For the frame shown in Fig.2, determine the reactions at the pin A and the force in the cable BC. 308 200 N/m Fig. 2 TOON
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of...
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
The pin-connected frame shown consists of members ACE and BCD. It is loaded as shown. (Assume...
The pin-connected frame shown consists of members ACE and BCD. It is loaded as shown. (Assume that the +x-axis is to the right and the+y-axis is up along submitted in WebAssign.) 6.0 m 6.0 m 8.0 m OD 1.70 KN.m 850 N in newte Determine the reaction components hinge B and pin C exert on member B magnitude N direction -Select- Ē, magnitude N direction -Select- Ex magnitude N direction -Select- č, magnitude N direction Select
5.39 A pin-connected crane framework is loaded and supported, as shown. The member weights are post,...
5.39 A pin-connected crane framework is loaded and supported, as shown. The member weights are post, 700 lb; boom, 800 lb; and brace, 600 lb. These weights may be considered to be acting at the midpoint of the respective members. Calculate the pin reactions at pins A, B, C, D, and E. 2-0" с. 3'-0" 6-0" 8'-0" 5000 lb 6'-0" Problem 5.39
Determine the magnitudes of the reactions at A and B for the beam loaded as shown....
Determine the magnitudes of the reactions at A and
B for the beam loaded as shown.
Chapter 5, Problem 5/091 GO Tutorial Determine the magnitudes of the reactions at A and B for the beam loaded as shown 1620 lb/ft 15400 lb-ft A В 5' 51 Answers: A = lb B = lb o
Determine the reactions at A & B for the following loaded frame with pin at C. Indicate the direction of the final reactions. 100 lb. 20" 9-11 200 lb/in 18" 600 lb./in 30"
Determine the reactions at A & B for the following loaded frame with pin at C. Indicate the direction of the final reactions. 100 lb. С А. 20" 91 B 200 lb./in 18" 600 lb./in 30" Determine the Principal Moments of Inertia about a centroidal axis for the following section, and sketch Mohr's circle with the appropriate labels. 5" 1" 1 1" 10" 1"
A
pin-connected frame is loaded as shown in the figure.
a.) determine the reaction at C of the pin- connected
frame.
b.) determine the reaction at B of the pin- connected
frame.
c.) determine the shear force acting on section 2 (just to the
right of the 600 N load) of the pin-connected frame.
с 800 N 0.8 m ! 2 D B o 600 N 0.8 m 0.9 m 0.9 m A
Determine the magnitudes of all pin reactions for the frame loaded as shown. 880 N 355 705 31° 61° Answers: A-
For the frame pictured below, determine the pin reactions at A, B, and C. 20'-0" A 12'-0" 4 kips E 12'-0" 10'-0" 10'-0" 6 kips
Q2) For the frame shown in Fig.2, determine the reactions at the pin A and the force in the cable BC. 308 200 N/m Fig. 2 TOON
Determine the reactions at A and B of the simple bracket shown. Neglect the self-weight of the members. For stability, there are pin supports at A and B. Indicate the magnitude and direction of the reaction forces. Show all free body diagrams and the equations associated with each free body diagram. 1500 lb ANSWER HERE Reactions at A 10" Reactions at B 4500 lb 7850 # 10 3.5' 10"
Determine the reactions at A and B of the simple bracket...
The pin-connected frame shown consists of members ACE and BCD. It is loaded as shown. (Assume that the +x-axis is to the right and the+y-axis is up along submitted in WebAssign.) 6.0 m 6.0 m 8.0 m OD 1.70 KN.m 850 N in newte Determine the reaction components hinge B and pin C exert on member B magnitude N direction -Select- Ē, magnitude N direction -Select- Ex magnitude N direction -Select- č, magnitude N direction Select
5.39 A pin-connected crane framework is loaded and supported, as shown. The member weights are post, 700 lb; boom, 800 lb; and brace, 600 lb. These weights may be considered to be acting at the midpoint of the respective members. Calculate the pin reactions at pins A, B, C, D, and E. 2-0" с. 3'-0" 6-0" 8'-0" 5000 lb 6'-0" Problem 5.39
Determine the magnitudes of the reactions at A and
B for the beam loaded as shown.
Chapter 5, Problem 5/091 GO Tutorial Determine the magnitudes of the reactions at A and B for the beam loaded as shown 1620 lb/ft 15400 lb-ft A В 5' 51 Answers: A = lb B = lb o
