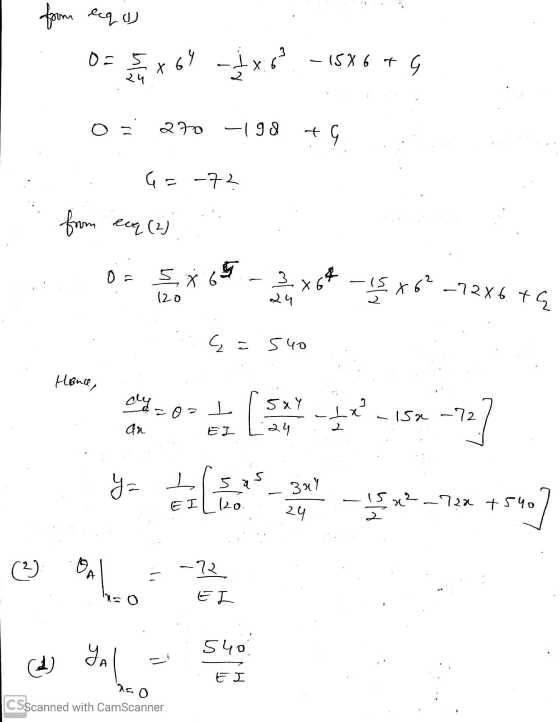

Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment...

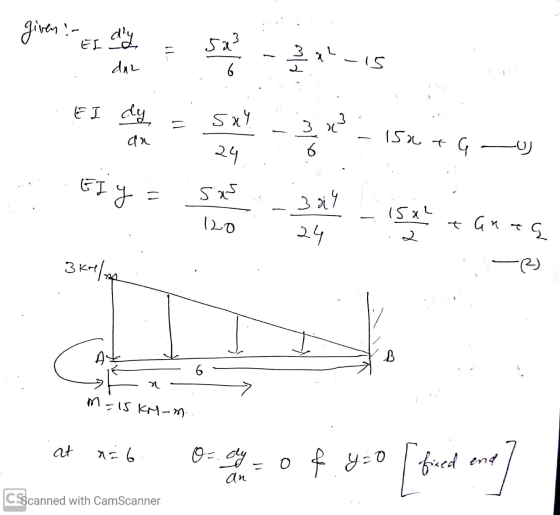

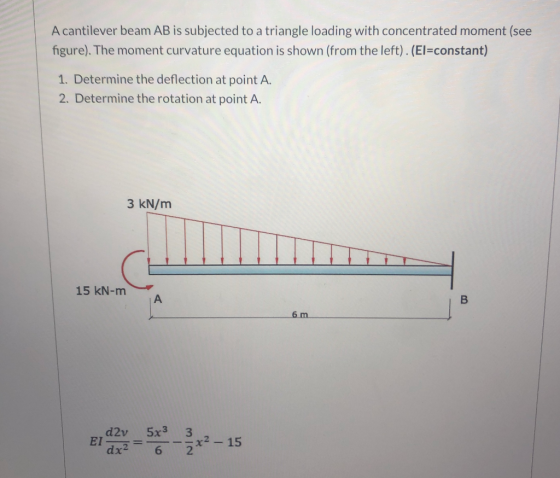

A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m A B 6 m d2v ΕΙ 5x3 3 x2 – 15 2 dx2 6
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m 8 d2v EI dx2 x3 12 *+z*
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m B 4 m 8 EI 12 MacBook Air DOO 008 A tA % A - 5 & 7 6 I 0 * 8 9 R T
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4.m x3 EI dx2 = - 2 COM MacBook Air 20 COD F4 FS F6 ►II # $ دیا 4 % 5 6 & 7 8 9
8. The cantilever beam in Figure Q8 subjects to concentrated loading. The cross section geometry gives the second moment of area / 100 x 10 m. The longitudinal geometry of the beam: a 2 m, b 1 m. The material of the beam: Young's modulus E 200 GPa. The loading: concentrated force P 10 KN. (a) Determine the reactions to the beam at the fixed end. (b) Determine the rotation angle at point x-a (c) (Determine the deflection at the...
Q5. The cantilever beam, AC, is subjected to the load case shown in Figure 5. For the loading shown, do the following: [10 Marks] a) Calculate the magnitude and direction of the reactions at A b) Using the Macaulay function, determine the displacement in y of the point B of the beam (x 2.4 m from the support at A) [10 Marks] c) Determine the slope at B. [5 Marks] The beam has a Young's modulus of E-200 GPa and...
For the beam and loading shown in the figure, integrate the load
distribution to determine the equation of the elastic curve for the
beam, and the maximum deflection for the beam. Assume that
EI is constant for the beam. Assume EI=25000 kN⋅m2, L=2.4
m, and w0=61 kN/m.
(a) Use your equation for the elastic curve to
determine the deflection at x=1.5 m. Enter a negative value if
the deflection is downward, or a positive value if it is
upward.
(b)...
QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure, a) Derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) b) Report the maximum positive bending moment, the maximum negative bending moment, and their respective locations. 36 KN 180 KN-m X B C D 4 m 5 m 3 m Figure 1
Consider the beam subjected to a concentrated load consisting of
2.25 kips of dead load and 5.55 kips of live load at point B. Find
maximum factored beam shear, moment, and deflection.
Consider the beam and loading given below. The beam is subjected to a concentrated load consisting of 2.25 kips of dead load and 5.55 kips of live load at point B. Neglect beam weight. You may use any information from the AISC Manual, a) Draw the general shape...
