Homework Answers

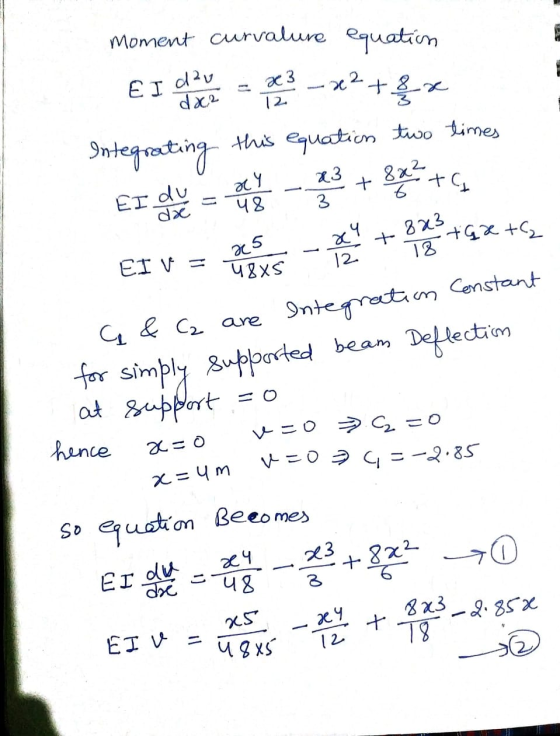

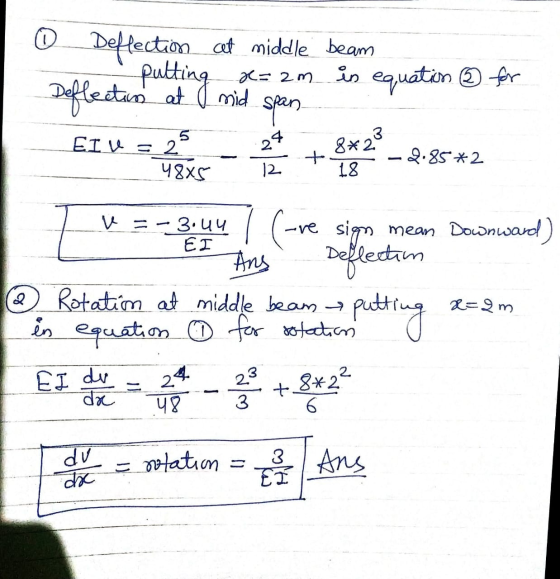

Please Give thumbs Up if you are satisfied or raise your doubt
Add Answer to:
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...

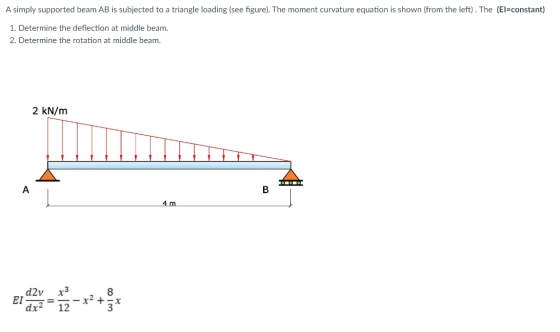

A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4.m x3 EI dx2 = - 2 COM MacBook Air 20 COD F4 FS F6 ►II # $ دیا 4 % 5 6 & 7 8 9
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m B 4 m 8 EI 12 MacBook Air DOO 008 A tA % A - 5 & 7 6 I 0 * 8 9 R T
A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The...
A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m A B 6 m d2v ΕΙ 5x3 3 x2 – 15 2 dx2 6
Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment...
Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m B 6 m d2v EI dx- 5x3 3 --x2 - 15 6 2
The simply supported beam AB in Figure 1 is subjected to a load variation given by...
The simply supported beam AB in Figure 1 is subjected to a load variation given by w(x) = -kr". ܨܝ܂ Figure 1 (a) Determine the equation of the elastic curve in terms of El, x and L. (El is constant) (15 Points) (b) The beam has a length L of 1 m. Determine, in terms of k: (1) The reaction at the roller support. (3 Points) (ii) The bending moment at the section 0.2 m from end A, (that is,...
QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure,...
QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure, a) Derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) b) Report the maximum positive bending moment, the maximum negative bending moment, and their respective locations. 36 KN 180 KN-m X B C D 4 m 5 m 3 m Figure 1
The simply supported bearm is made of A-36 steel and is subjected to the loading shown...
The simply supported bearm is made of A-36 steel and is subjected to the loading shown in (Figure 1. Suppose that P 18 kN. E 200 GPa and I - 0.1457(10 Part A Determine the deflection of the beam at its center C Express your answer to three signiticant tigures and include the appropriate units. Enter positive value If the deflection is upward and negative value If the deflection is downward. Ac= Value Units Figure 1 of 1 Submit Request...
ME2045 Figure Q1 shows a schematic of a simple sprung beam. It is simply supported at...
ME2045 Figure Q1 shows a schematic of a simple sprung beam. It is simply supported at each end, L long and has stiffness El and is subjected to an upward load of F, 1. the way from the left hand support. a) Evaluate a step function based equation for the beam as a function of z, the position along the beam. 17] b) By integrating this equation determine an expression for the deflection of the beam as a function of...
Q2 The simply supported beam of length is subjected to a vertical point load at its...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4.m x3 EI dx2 = - 2 COM MacBook Air 20 COD F4 FS F6 ►II # $ دیا 4 % 5 6 & 7 8 9
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m B 4 m 8 EI 12 MacBook Air DOO 008 A tA % A - 5 & 7 6 I 0 * 8 9 R T
A cantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m A B 6 m d2v ΕΙ 5x3 3 x2 – 15 2 dx2 6
Acantilever beam AB is subjected to a triangle loading with concentrated moment (see figure). The moment curvature equation is shown (from the left). (El=constant) 1. Determine the deflection at point A. 2. Determine the rotation at point A. 3 kN/m 15 kN-m B 6 m d2v EI dx- 5x3 3 --x2 - 15 6 2
The simply supported beam AB in Figure 1 is subjected to a load variation given by w(x) = -kr". ܨܝ܂ Figure 1 (a) Determine the equation of the elastic curve in terms of El, x and L. (El is constant) (15 Points) (b) The beam has a length L of 1 m. Determine, in terms of k: (1) The reaction at the roller support. (3 Points) (ii) The bending moment at the section 0.2 m from end A, (that is,...
QUESTION 1 [15] For the simply supported beam subjected to the loading shown in the figure, a) Derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) b) Report the maximum positive bending moment, the maximum negative bending moment, and their respective locations. 36 KN 180 KN-m X B C D 4 m 5 m 3 m Figure 1
The simply supported bearm is made of A-36 steel and is subjected to the loading shown in (Figure 1. Suppose that P 18 kN. E 200 GPa and I - 0.1457(10 Part A Determine the deflection of the beam at its center C Express your answer to three signiticant tigures and include the appropriate units. Enter positive value If the deflection is upward and negative value If the deflection is downward. Ac= Value Units Figure 1 of 1 Submit Request...
ME2045 Figure Q1 shows a schematic of a simple sprung beam. It is simply supported at each end, L long and has stiffness El and is subjected to an upward load of F, 1. the way from the left hand support. a) Evaluate a step function based equation for the beam as a function of z, the position along the beam. 17] b) By integrating this equation determine an expression for the deflection of the beam as a function of...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
