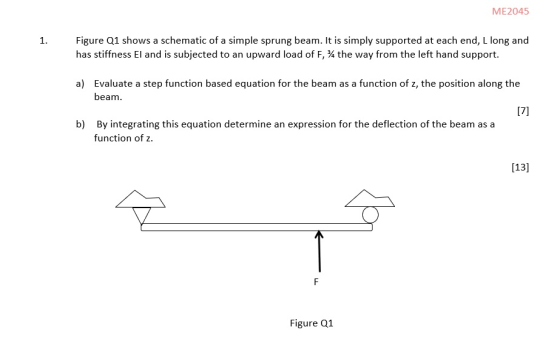

![ME2045 Figure Q1 shows a schematic of a simple sprung beam. It is simply supported at each end, L long and has stiffness El and is subjected to an upward load of F, 1. the way from the left hand support. a) Evaluate a step function based equation for the beam as a function of z, the position along the beam. 17] b) By integrating this equation determine an expression for the deflection of the beam as a function of z [13] Figure Q1](http://img.homeworklib.com/questions/68334840-d3bb-11ea-a8eb-1bdd9c988625.png?x-oss-process=image/resize,w_560)
Homework Answers
Solution:
............................................................................................................................................................

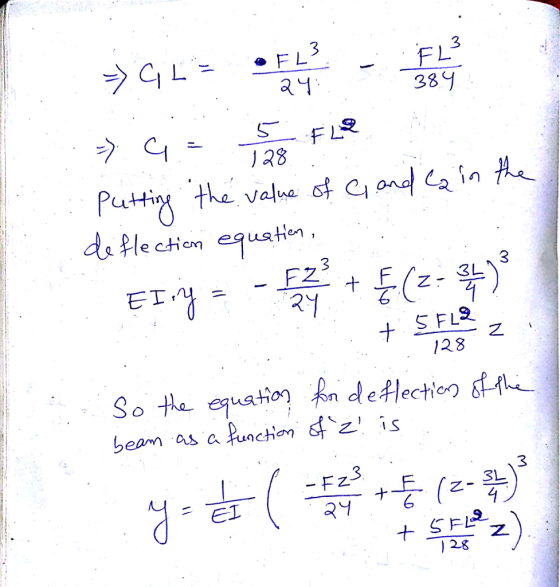

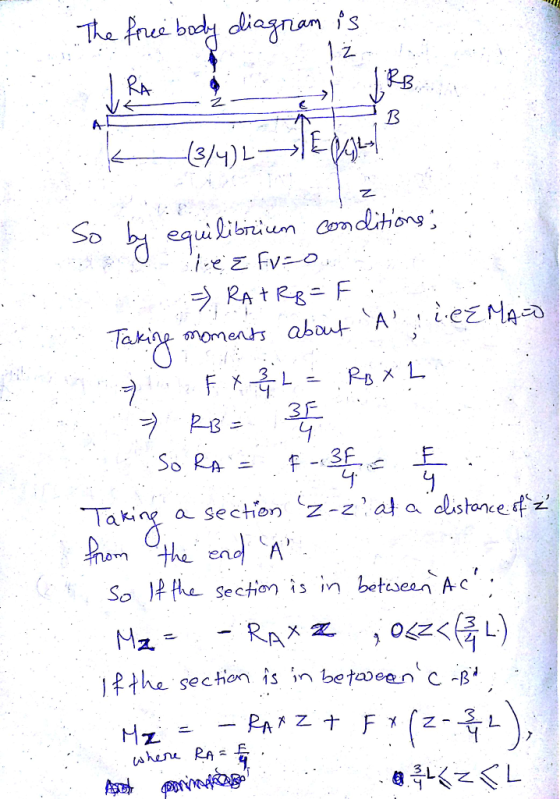

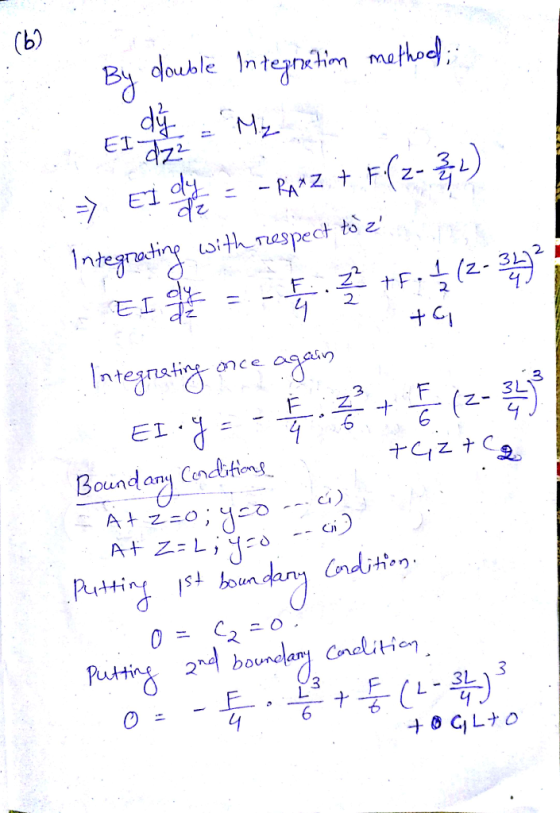

Add Answer to:
ME2045 Figure Q1 shows a schematic of a simple sprung beam. It is simply supported at...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m 8 d2v EI dx2 x3 12 *+z*
(1)20points 0.12m 0.05m The simply supported beam shown in the figure is subjected to a uniform t...
(1)20points 0.12m 0.05m The simply supported beam shown in the figure is subjected to a uniform transverse load and a concentrated load. (1.) Using two equal-length elements (FEM) to determine the deflection and stress of bottom surface. (2.) Using elementary beam theory to determine the deflection and stress of bottom surface
(1)20points 0.12m 0.05m The simply supported beam shown in the figure is subjected to a uniform transverse load and a concentrated load. (1.) Using two equal-length elements (FEM) to...
The simply supported beam AB in Figure 1 is subjected to a load variation given by...
The simply supported beam AB in Figure 1 is subjected to a load variation given by w(x) = -kr". ܨܝ܂ Figure 1 (a) Determine the equation of the elastic curve in terms of El, x and L. (El is constant) (15 Points) (b) The beam has a length L of 1 m. Determine, in terms of k: (1) The reaction at the roller support. (3 Points) (ii) The bending moment at the section 0.2 m from end A, (that is,...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1
Q2 The simply supported beam of length is subjected to a vertical point load at its...
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m B 4 m 8 EI 12 MacBook Air DOO 008 A tA % A - 5 & 7 6 I 0 * 8 9 R T
A simply-supported beam is subjected to a combination of a distributed force and a concentrated force....
A
simply-supported beam is subjected to a combination of a
distributed force and a concentrated force. Determine the support
reactions and transverse deflection.
a conc entrated fpre. Determine the suppovt reaiton and en deflechi on EL,A 9
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4.m x3 EI dx2 = - 2 COM MacBook Air 20 COD F4 FS F6 ►II # $ دیا 4 % 5 6 & 7 8 9
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported...
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
The simply supported beam of length L is subjected to uniformly distributed load of w and...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m 8 d2v EI dx2 x3 12 *+z*
(1)20points 0.12m 0.05m The simply supported beam shown in the figure is subjected to a uniform transverse load and a concentrated load. (1.) Using two equal-length elements (FEM) to determine the deflection and stress of bottom surface. (2.) Using elementary beam theory to determine the deflection and stress of bottom surface
(1)20points 0.12m 0.05m The simply supported beam shown in the figure is subjected to a uniform transverse load and a concentrated load. (1.) Using two equal-length elements (FEM) to...
The simply supported beam AB in Figure 1 is subjected to a load variation given by w(x) = -kr". ܨܝ܂ Figure 1 (a) Determine the equation of the elastic curve in terms of El, x and L. (El is constant) (15 Points) (b) The beam has a length L of 1 m. Determine, in terms of k: (1) The reaction at the roller support. (3 Points) (ii) The bending moment at the section 0.2 m from end A, (that is,...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El=constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4 m d2v x3 ΕΙ = dx? 12 -x2+1
Q2 The simply supported beam of length is subjected to a vertical point load at its middle, as shown in Figure Q2. Both young's modulus and second moment of area of this structure are given as and. Please provide your answers in terms of letters. Self-weight of the beam is neglected. Figure Q2 (a) Determine the reactions, bending moment equation along the beam and draw the corresponding bending moment diagram [10] (b) Determine both the slope and deflection at the...
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m B 4 m 8 EI 12 MacBook Air DOO 008 A tA % A - 5 & 7 6 I 0 * 8 9 R T
A
simply-supported beam is subjected to a combination of a
distributed force and a concentrated force. Determine the support
reactions and transverse deflection.
a conc entrated fpre. Determine the suppovt reaiton and en deflechi on EL,A 9
A simply supported beam AB is subjected to a triangle loading (see figure). The moment curvature equation is shown (from the left). The (El-constant) 1. Determine the deflection at middle beam. 2. Determine the rotation at middle beam. 2 kN/m A B 4.m x3 EI dx2 = - 2 COM MacBook Air 20 COD F4 FS F6 ►II # $ دیا 4 % 5 6 & 7 8 9
Q2(c) Figure Q1(c) shows a simply supported beam ABCD loaded as shown. The beam is pin-supported at D, while point B is roller-supported. Determine the support reactions. b) For span BC (2<x< 4) write down the x-dependent equation for moment. x should be measured from cnd A. Plot the shear force diagram and the bending moment diagram for the beam. Show all important values of the diagrams. d) Plot the deflected shape of the beam. c) 50KN 40kN/m 25kNm 20kN/m...
The simply supported beam of length L is subjected to uniformly distributed load of w and a vertical point load P at its middle, as shown in Figure Q3. Both young's modulus and second moment of area of this structure are given as E and I. Please provide your answers in terms of letters w, P,L,1, E. Self-weight of the beam is neglected. P W L/2 L/2 Figure Q3 (a) Determine the reactions, bending moment equation along the beam and...
