[19 pts) Suppose that F is a Boolean function represented by a Boolean expression in the...

Question

Question

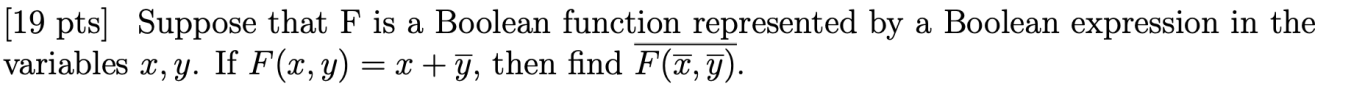

[19 pts) Suppose that F is a Boolean function represented by a Boolean expression in the variables 2, y If F(x, y) = r +y, th

math Advanced-Math

Answer 1

Answer #1

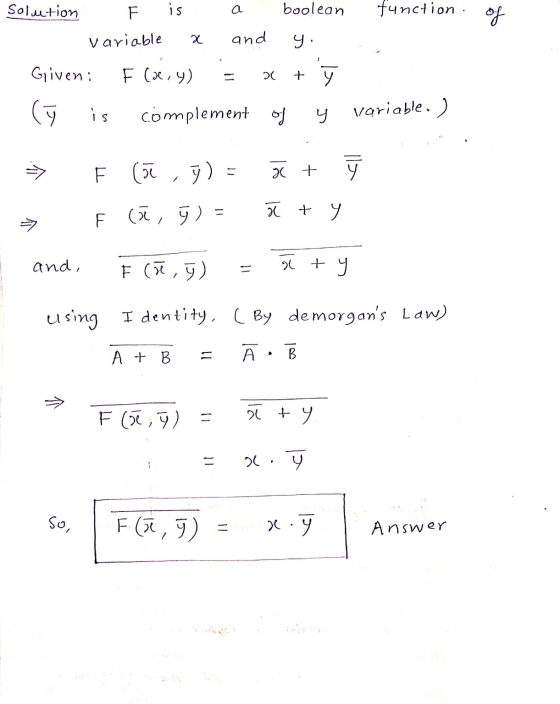

Solution F is boolean function of variable x and y. Given; F (x4) + у ( is complement of y variable. ) (52,5) = x + у F (ā, )

Answer 2

Similar Homework Help Questions

ANSWER COMPLETELY AND CORRECTLY!! Will give good rating! (19 pts] Suppose that F is a Boolean...

ANSWER COMPLETELY AND CORRECTLY!! Will give good rating! (19 pts] Suppose that F is a Boolean function represented by a Boolean expression in the variables x, y. If F(x, y) = x +y, then find F(TT).
3 pts Question 27 FREE The Boolean expression represented by the following circuit is? (The single...

3 pts Question 27 FREE The Boolean expression represented by the following circuit is? (The single quote indicates negation) А в с OX-A'C + ABC + A'B'C OX-AC + AB'C' + ABC O X-AC + AB'C' + A'BC O X - A'C + AB'C + ABC
MATH 2253 Exam 4 Date: April 15 2019 Dr. Cartwright 19. Select the Boolean expression that corres...

discrete math We were unable to transcribe this imageMATH 2253 Exam 4 Date: April 15 2019 Dr. Cartwright 19. Select the Boolean expression that corresponds to the output of the Boolean circuit below to cx+y+ yz d. xy(y + z) 20. Select the Boolean expression that corresponds to the output of the Boolean circuit below corres 21. Select the circuit whose output is xy+2 output C. d. 17. Select the expression that is equivalent to . a. (x +x)o+x) 18....

1. Consider the Boolean function F(x, y) = x + y, how many cells in the...

1. Consider the Boolean function F(x, y) = x + y, how many cells in the Kmap representing this function have value of “1”? A. 3 B. 2 C. 4 D. 1 2.Using Kmap for simplification, we can select multiple smaller groups (instead of a larger group) as long as all “1” are selected. A. False B. True 3 In Kmap representation, how many values of “0” and “1” two neighboring minterms can differ?2. Using Kmap for simplification, we can...
10. Write a Boolean expression for F: 11. Write a Boolean expression for F:

10. Write a Boolean expression for F: 11. Write a Boolean expression for F:
2. (46 pts) Suppose the random variables X and Y have the joint density function defined...

2. (46 pts) Suppose the random variables X and Y have the joint density function defined by: f(x, y)- otherwise a) Find the value for the constant c b) Find the marginal cdf for X and Y c) Find PiX>3, Y>2)

(15 pts) A channel is represented by the circuit below. Find the transfer function H(f) and...

(15 pts) A channel is represented by the circuit below. Find the transfer function H(f) and the 3dB bandwidth. R O 6+ + +0 io
Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z +...

Please simplify the following Boolean expression to its simplest form: F(x, y, z) = y'z + x'yz + xyz? Please simplify the following Boolean expression to its simplest form: F(x, y) = (x + y)(xy)’ + ((x + y)(xy)’)’?
please answer all Canvas Question 17 2 pts Given the function f(x,y,z) and the expression xyz...

please answer all Canvas Question 17 2 pts Given the function f(x,y,z) and the expression xyz + x2 + yz, how many minterms are in the expression? None of these 1 a,c a,c b start 90 91 Given the FSM above, what is Q? 90.91,92,93 90 None of these 92 Question 19 5 pts

Q2: 1. Proof this Boolean expression. Use Boolean Algebra (X+Y). (Z+W).(X'+Y+W) = Y.Z+X.W+Y.W 2. For this...

Q2: 1. Proof this Boolean expression. Use Boolean Algebra (X+Y). (Z+W).(X'+Y+W) = Y.Z+X.W+Y.W 2. For this BF F(X,,Z)=((XYZ)(X +Z))(X+Y) • Design the digital circuit Derive the Boolean Function of X, Y, Z. Simplify the Function Derive the truth table before and after simplification. Derive the BF F(X,Y,Z) as Maxterms (POS) and miterms (SOP). Implement the F(X,Y,Z) after simplification using NAND gates only. Implement the F(X,Y,Z) after simplification using OR NOR gates only.
