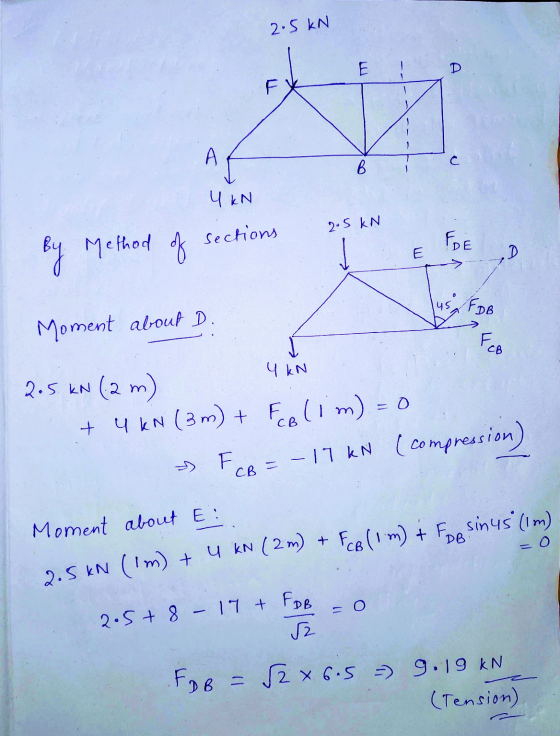

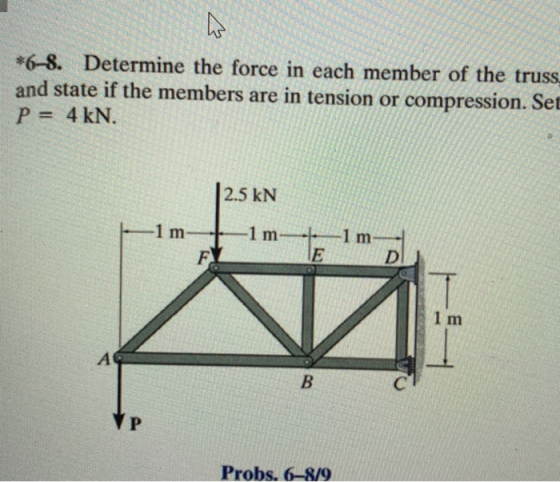

Hi, I dont know how to get BC and and DB, their values are -17
and...
For the truss shown, Determine b) The force in member BC. State if the members are...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
The question lists the wrong members, there is no BE. Determine the force in BC, CF,...
The question lists the wrong members, there is no BE. Determine
the force in BC, CF, and EF.
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set P = 6 kN, P2= 9 KN, and Ps= 12 kN. 3 m A Draw and label a complete FBD of the section you choose to B c analyze. 3 m 3 m 3 m...
Question 8 5 pts Determine the force in member BC of the truss and state if...
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
Determine the force in each member of the truss. Determine the force in each member of...
Determine the force in each member of the truss.
Determine the force in each member of the truss and state if the members are in tension or compression (Figure 1) Part A Determine the force in the member AB of the truss, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB- Value...
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and ...
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of Consider the truss showm in (Figure 1). Set P1-6 kN, compression and positive value in the case of tension Figure 1 of 1 Poc 15.6 kN Submit X Incorrect; Try Again; 3...
or question 15 m P2 D 2 m 5: Determine the force in each member of...
or question 15 m P2 D 2 m 5: Determine the force in each member of the truss and state if the members are in tension or compression. Set P1-20 kN, P2 10 kN What is the force in member CD (kN)? What is the force in Is it in Tension or compression? CB (kN)? What is the force in member DB (KN)? Is it in Tension or compression? What s the force in member DA KN Is it in...
P3 F E 3) Determine the force in members BC, BE, and EF of the truss...
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set Pi = 6 kN, P2= 9 kN, and Ps= 12 kN. 3 m D B С Draw and label a complete FBD of the section you choose to analyze. 3 m 3 m 3 m P1 P
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if...
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if the members are in tension or compression. 3 nm DI BI 3 In nI 3 m o kN 8 kN
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 m
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 mScreenshot 2021-02-24 162040.png
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN. Assume all members...
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
The question lists the wrong members, there is no BE. Determine
the force in BC, CF, and EF.
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set P = 6 kN, P2= 9 KN, and Ps= 12 kN. 3 m A Draw and label a complete FBD of the section you choose to B c analyze. 3 m 3 m 3 m...
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
Determine the force in each member of the truss.
Determine the force in each member of the truss and state if the members are in tension or compression (Figure 1) Part A Determine the force in the member AB of the truss, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Assume positive scalars for members in tension and negative scalars for members in compression. FAB- Value...
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of Consider the truss showm in (Figure 1). Set P1-6 kN, compression and positive value in the case of tension Figure 1 of 1 Poc 15.6 kN Submit X Incorrect; Try Again; 3...
or question 15 m P2 D 2 m 5: Determine the force in each member of the truss and state if the members are in tension or compression. Set P1-20 kN, P2 10 kN What is the force in member CD (kN)? What is the force in Is it in Tension or compression? CB (kN)? What is the force in member DB (KN)? Is it in Tension or compression? What s the force in member DA KN Is it in...
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set Pi = 6 kN, P2= 9 kN, and Ps= 12 kN. 3 m D B С Draw and label a complete FBD of the section you choose to analyze. 3 m 3 m 3 m P1 P
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if the members are in tension or compression. 3 nm DI BI 3 In nI 3 m o kN 8 kN
Consider the truss shown in (Figure 1). Suppose that F = 3.5 kN.
Assume all members are pin connected.
Part A: Determine the force in member GC of the truss and state
if the member is in tension or compression.
Part B: Determine the force in member BC of the truss and state
if the member is in tension or compression.
Part C: Determine the force in member GF of the truss and state
if the member is in tension...
