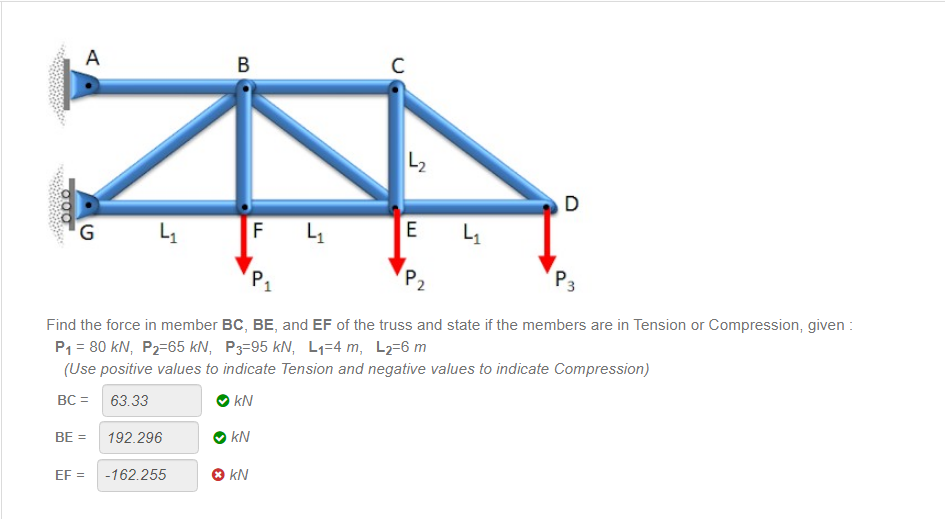

Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 m
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given :
P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 m
Screenshot 2021-02-24 162040.png
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 m
P3 F E 3) Determine the force in members BC, BE, and EF of the truss...
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set Pi = 6 kN, P2= 9 kN, and Ps= 12 kN. 3 m D B С Draw and label a complete FBD of the section you choose to analyze. 3 m 3 m 3 m P1 P
P1 4) Determine the force in each member of the truss and state if the members...
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
Set P1 = 35 kN and P2 = 14 kN . Determine the force in member...
Set P1 = 35 kN and P2 = 14 kN .
Determine the force in member AB, and state if the member is in
tension or compression.
Determine the force in member AE, and state if the member is in
tension or compression.
Determine the force in member AF, and state if the member is in
tension or compression.
Determine the force in member BC, and state if the member is in
tension or compression.
Determine the force in member...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
Set P1 = 8 kN and P2 = 11 kN . Determine the force in member...
Set P1 = 8 kN and P2 = 11 kN .
Determine the force in member AB,AF,BC,BF,CD,CE,DE,EF,and FG and
state if the member is in tension or compression.
OK - 2m - -1 m
1)Determine the force in member AB, and state if the member is in tension or compression....
1)Determine the force in member AB, and state if the member is
in tension or compression.
2)Determine the force in member AF, and state if the member is
in tension or compression.
3)Determine the force in member BC, and state if the member is
in tension or compression.
4)Determine the force in member BE, and state if the member is
in tension or compression.
5)Determine the force in member BF, and state if the member is
in tension or compression....
Question 8 5 pts Determine the force in member BC of the truss and state if...
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
For the truss shown, Determine b) The force in member BC. State if the members are...
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and ...
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of Consider the truss showm in (Figure 1). Set P1-6 kN, compression and positive value in the case of tension Figure 1 of 1 Poc 15.6 kN Submit X Incorrect; Try Again; 3...
The question lists the wrong members, there is no BE. Determine the force in BC, CF,...
The question lists the wrong members, there is no BE. Determine
the force in BC, CF, and EF.
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set P = 6 kN, P2= 9 KN, and Ps= 12 kN. 3 m A Draw and label a complete FBD of the section you choose to B c analyze. 3 m 3 m 3 m...
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set Pi = 6 kN, P2= 9 kN, and Ps= 12 kN. 3 m D B С Draw and label a complete FBD of the section you choose to analyze. 3 m 3 m 3 m P1 P
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
Set P1 = 35 kN and P2 = 14 kN .
Determine the force in member AB, and state if the member is in
tension or compression.
Determine the force in member AE, and state if the member is in
tension or compression.
Determine the force in member AF, and state if the member is in
tension or compression.
Determine the force in member BC, and state if the member is in
tension or compression.
Determine the force in member...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
Set P1 = 8 kN and P2 = 11 kN .
Determine the force in member AB,AF,BC,BF,CD,CE,DE,EF,and FG and
state if the member is in tension or compression.
OK - 2m - -1 m
1)Determine the force in member AB, and state if the member is
in tension or compression.
2)Determine the force in member AF, and state if the member is
in tension or compression.
3)Determine the force in member BC, and state if the member is
in tension or compression.
4)Determine the force in member BE, and state if the member is
in tension or compression.
5)Determine the force in member BF, and state if the member is
in tension or compression....
Question 8 5 pts Determine the force in member BC of the truss and state if the member is in tension or compression. Set P1 = 0, P2 = 20 kN. -2 m -
For the truss shown, Determine b) The force in member BC. State if the members are in tension or compression 10 kN 6 kN 3 2.5m 1-1,5 m 1.5 m..-2.5 m |
Po 13.6 kN Value Units Figure Part kN Part A Determine the force in member BC of the truss and state if this member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of Consider the truss showm in (Figure 1). Set P1-6 kN, compression and positive value in the case of tension Figure 1 of 1 Poc 15.6 kN Submit X Incorrect; Try Again; 3...
The question lists the wrong members, there is no BE. Determine
the force in BC, CF, and EF.
P3 F E 3) Determine the force in members BC, BE, and EF of the truss and state if these members are in tension or compression. Set P = 6 kN, P2= 9 KN, and Ps= 12 kN. 3 m A Draw and label a complete FBD of the section you choose to B c analyze. 3 m 3 m 3 m...
