A riveted structural connection supports a load P = 10 KN, as shown in the figure...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN,...

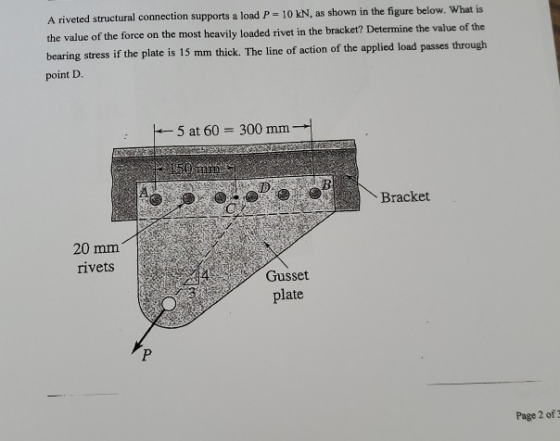

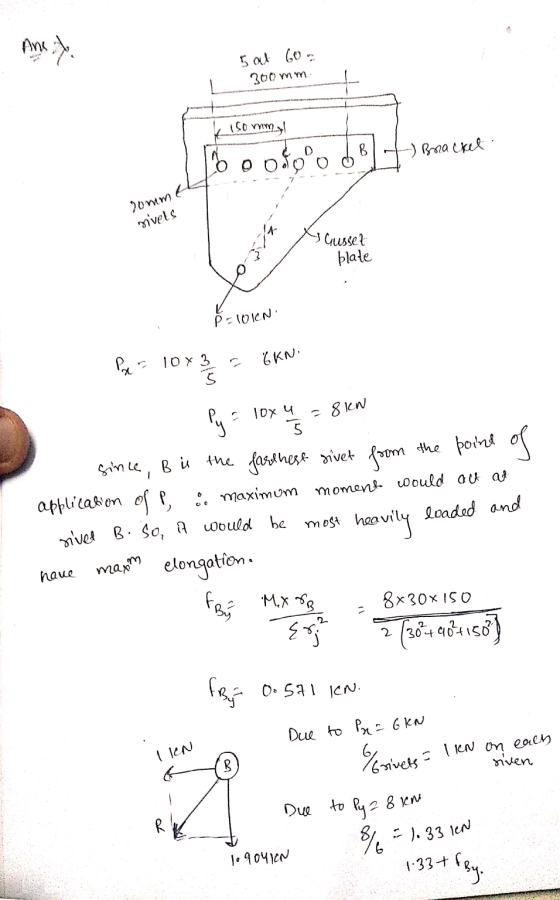

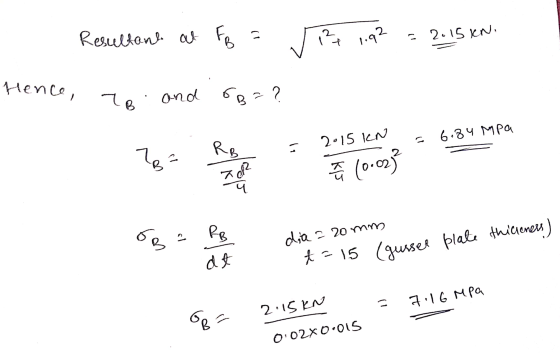

PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm 150 mm A Bracket 20 mm rivets Gusset plate Р
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. K 5 at 60 = = 300 mm + 150 mm BI Bracket 20 mm rivets Gusset...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P-10 kN, as shown...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P-10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. -5 at 60 = 300 mm 150 mm Bracket 20 mm rivets Gusset plate
PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN,...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm - 150 mm Bracket 20 mm rivets 55 Gusset plate
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm 150 mm D RAS Bracket 20 mm rivets Gusset plate
follow australian codes (a) The rigid bolted connection shown in Figure 4 is used to transmit a total vertical load...
follow australian codes
(a) The rigid bolted connection shown in Figure 4 is used to transmit a total vertical load of 350 kN applied as shown. Two bracket plates are connected to the flanges of the I section using the bolt groups (refer figure 4) and hence, the bolts are loaded in- plane. Determine if the bolted connection shown in Figure 4 can safely support the applied load (use cl. 9.4.1 AS4100 1998). The bolts are M20 of 8.8S grade...
2. A steel plate (Fig Q.2) is riveted to a vertical pillar. The three rivets have a 15mm diameter and carry the load and moment resulting from the external load of 8 N All length dmensions are...
2. A steel plate (Fig Q.2) is riveted to a vertical pillar. The three rivets have a 15mm diameter and carry the load and moment resulting from the external load of 8 N All length dmensions are in milimeters. The yield strengths of the matenials are (S 600 MPa and (S 350 MPa. Calculate the safety factors for a Shear of rivet when Say 0.57 S (10 pts) b. Bearing of met when σ--o 9 s, (10 pts) c Beanng...
if you can just do a and b ( would be appreciate ) i need to learn the concept Fig. Q.1 2. A steel plate (Fig. Q.2) is riveted to a vertical pillar diameter and carry the load and moment resul...
if you can just do a and b ( would be appreciate ) i
need to learn the concept
Fig. Q.1 2. A steel plate (Fig. Q.2) is riveted to a vertical pillar diameter and carry the load and moment resulting fro he rivets have a 15 mm civeted to from the external load of 8 KN. eters. The yield strengths of the materials are I length dimensions are in The (Sy)mvet 600 MPa and (Sy)plate 350 MPa. Calculate the...
ein (2) Three identical bolts are used in the connection shown and the thickness of the...
ein (2) Three identical bolts are used in the connection shown and the thickness of the center plate is t = 18 mm. The ultimate shear stress in the bolts is 320 MPa and the ultimate bearing stress in the plate is 350 MPa. Determine the minimum bolt diameter required to support an applied load of P= 180 kN for a factor of safety of 2.5. Ans: 23.8 mm Р
Mechanical Design b) A bracket shown in Figure Q3b supports a load of 18 kN. The bracket is fabricated by a fillet weld...
Mechanical Design
b) A bracket shown in Figure Q3b supports a load of 18 kN. The bracket is fabricated by a fillet weld of 100 mm length on two sides. The welding is carried out ing E60 series electrode. Using factor of safety 3.5, calculate the minimum weld sT msize required. [10 marks] s与 C.g 100 mm 18 ky mtiy stress 75mm ta Figure Q3b
b) A bracket shown in Figure Q3b supports a load of 18 kN. The bracket...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm 150 mm A Bracket 20 mm rivets Gusset plate Р
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. K 5 at 60 = = 300 mm + 150 mm BI Bracket 20 mm rivets Gusset...
PROBLEM # 2 (50 points) A riveted structural connection supports a load P-10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. -5 at 60 = 300 mm 150 mm Bracket 20 mm rivets Gusset plate
PROBLEM # 2 (50 points) A riveted structural connection supports a load P = 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm - 150 mm Bracket 20 mm rivets 55 Gusset plate
PROBLEM # 2 (50 points) A riveted structural connection supports a load P= 10 kN, as shown in the figure below. What is the value of the force on the most heavily loaded rivet in the bracket? Determine the value of the bearing stress if the plate is 15 mm thick. The line of action of the applied load passes through point D. 5 at 60 = 300 mm 150 mm D RAS Bracket 20 mm rivets Gusset plate
follow australian codes
(a) The rigid bolted connection shown in Figure 4 is used to transmit a total vertical load of 350 kN applied as shown. Two bracket plates are connected to the flanges of the I section using the bolt groups (refer figure 4) and hence, the bolts are loaded in- plane. Determine if the bolted connection shown in Figure 4 can safely support the applied load (use cl. 9.4.1 AS4100 1998). The bolts are M20 of 8.8S grade...
2. A steel plate (Fig Q.2) is riveted to a vertical pillar. The three rivets have a 15mm diameter and carry the load and moment resulting from the external load of 8 N All length dmensions are in milimeters. The yield strengths of the matenials are (S 600 MPa and (S 350 MPa. Calculate the safety factors for a Shear of rivet when Say 0.57 S (10 pts) b. Bearing of met when σ--o 9 s, (10 pts) c Beanng...
if you can just do a and b ( would be appreciate ) i
need to learn the concept
Fig. Q.1 2. A steel plate (Fig. Q.2) is riveted to a vertical pillar diameter and carry the load and moment resulting fro he rivets have a 15 mm civeted to from the external load of 8 KN. eters. The yield strengths of the materials are I length dimensions are in The (Sy)mvet 600 MPa and (Sy)plate 350 MPa. Calculate the...
ein (2) Three identical bolts are used in the connection shown and the thickness of the center plate is t = 18 mm. The ultimate shear stress in the bolts is 320 MPa and the ultimate bearing stress in the plate is 350 MPa. Determine the minimum bolt diameter required to support an applied load of P= 180 kN for a factor of safety of 2.5. Ans: 23.8 mm Р
Mechanical Design
b) A bracket shown in Figure Q3b supports a load of 18 kN. The bracket is fabricated by a fillet weld of 100 mm length on two sides. The welding is carried out ing E60 series electrode. Using factor of safety 3.5, calculate the minimum weld sT msize required. [10 marks] s与 C.g 100 mm 18 ky mtiy stress 75mm ta Figure Q3b
b) A bracket shown in Figure Q3b supports a load of 18 kN. The bracket...
