Homework Answers

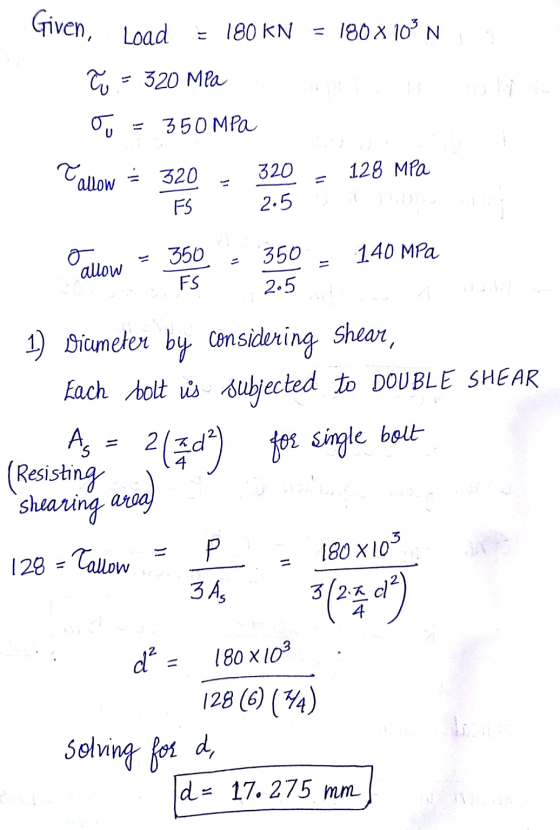

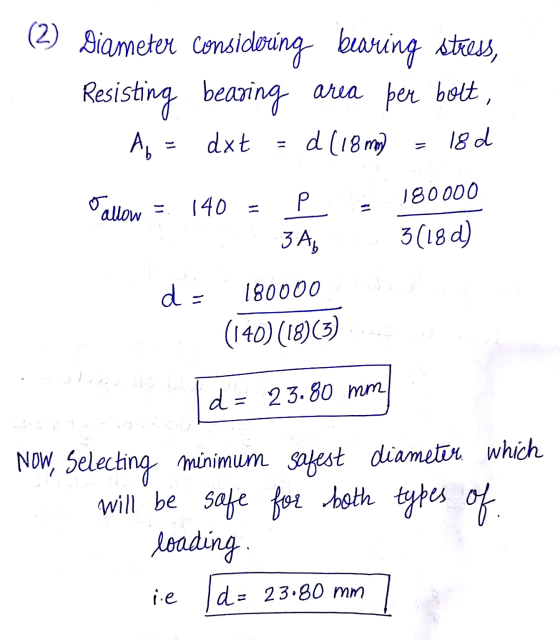

ACCORDING TO THE DATA AND DIAGRAM ARE GIVEN IN THE QUESTION,
Add Answer to:

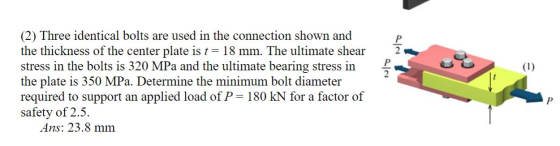

ein (2) Three identical bolts are used in the connection shown and the thickness of the...
