13.20 (33 points) A 3-in.-diameter shaft is supported by a bearing 3 in. in length with...
A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance...

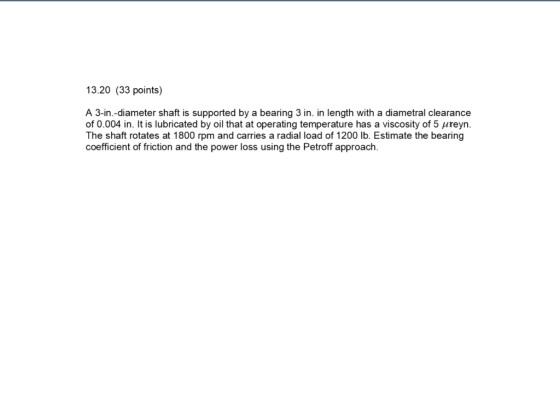

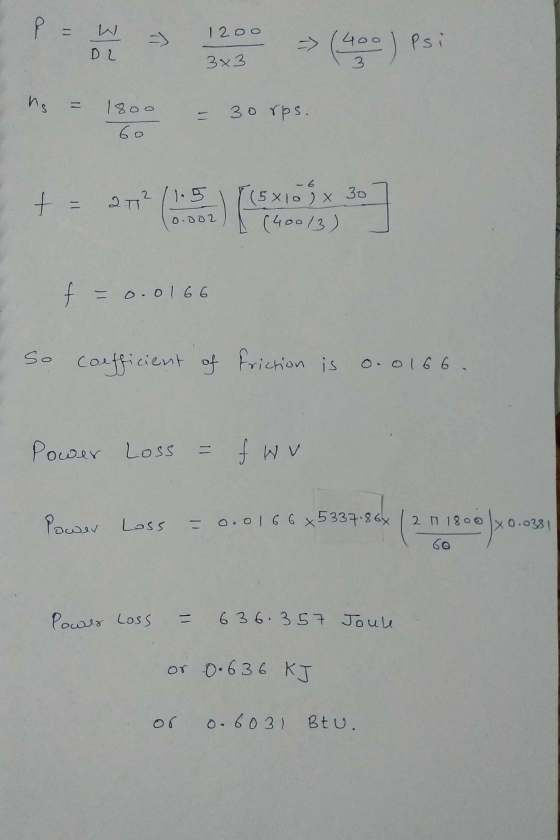

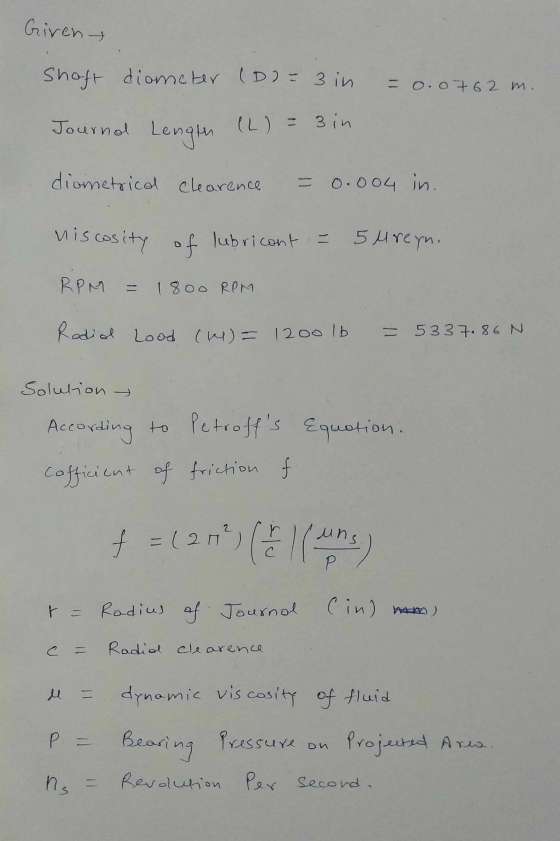

A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a...
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a minimum oil-film thickness of 0.02 mm and radial clearance of 0.06 mm. It is lubricated by SAE 30 oil. The bearing carries a load of 4 kN of at 900 rpm. Employing the design charts, determine The temperature of the oil film • • The coefficient of friction • The friction power
Q.3 Data for a Hydrodynamic Bearing which is designed is as follows: W-600lb, shaft radius = 1.5 in, L=1.5, viscosity = 5.0/1000000 reyn; RPM=1500 and diametral clearance-0.002 in. Find minimum f...
Q.3 Data for a Hydrodynamic Bearing which is designed is as follows: W-600lb, shaft radius = 1.5 in, L=1.5, viscosity = 5.0/1000000 reyn; RPM=1500 and diametral clearance-0.002 in. Find minimum film thickness, operating temperature and coefficient of friction. (7)
Q.3 Data for a Hydrodynamic Bearing which is designed is as follows: W-600lb, shaft radius = 1.5 in, L=1.5, viscosity = 5.0/1000000 reyn; RPM=1500 and diametral clearance-0.002 in. Find minimum film thickness, operating temperature and coefficient of friction. (7)
A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of...
A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of diameter 25.5 mm (the figure below). The lubrication oil (SG = 0.86) that fills the gap between the shaft and bearing has an initial kinematic viscosity of 2200 mm2/s. After 5 minutes of running the temperature of the oil increases and the dynamic viscosity decreases by 90 %. Determine the reduction in shaft torque (T) that occurs from startup to after 5 minutes of...
A shaft inside the sleeve of a journal bearing is being rotated at 1500 rpm. The shaft is 6.00 cm in diameter and is rotating in a bearing sleeve that is 6.02 cm in diameter and 40 cm long. The cleara...
A shaft inside the sleeve of a journal bearing is being rotated at 1500 rpm. The shaft is 6.00 cm in diameter and is rotating in a bearing sleeve that is 6.02 cm in diameter and 40 cm long. The clearance is filled with oil having properties of ν=0.003 m2/s and SG=0.88. a. Find the torque required to rotate the shaft. b. Find the power required to rotate the shaft. (Answer: 44.1 kW) c. Discussion: How do the torque and...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a l...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
A 3-inch diameter ground shaft rotates at 1000 rev/min in a lathe turned full journal bearing,...
A 3-inch diameter ground shaft rotates at 1000 rev/min in a lathe turned full journal bearing, which is 3 in long. SAE Grade 20 lubricant is used and the lubricant sump has a steady-state temperature of 100°F. The maximum lubricant temperature must not exceed 200°F. Analyze the assembly assuming average clearance and a H8/f8 clearance fit. Determine the following: a. The maximum radial load that the journal can carry and still operate under thick-film lubrication conditions. (6 points) b. The...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
Assume Kr 1 and Ka In a journal bearing assembly, the shaft has a diameter of 88.900 mm and a bilateral tolerance of + 0.076 mm. The bushing bore diameter is 89.027 mm with a unilateral toleran...
Assume Kr 1 and Ka In a journal bearing assembly, the shaft has a diameter of 88.900 mm and a bilateral tolerance of + 0.076 mm. The bushing bore diameter is 89.027 mm with a unilateral tolerance of +0:0.119 mm. The bushing length is 50 mm. The SAE 30 oil has an average operating temperature 60°C. For a minimum radial clearance, a speed of 1000 rev/min, and a radial load of 20 kN, find the maximum bearing pressure and its...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a minimum oil-film thickness of 0.02 mm and radial clearance of 0.06 mm. It is lubricated by SAE 30 oil. The bearing carries a load of 4 kN of at 900 rpm. Employing the design charts, determine The temperature of the oil film • • The coefficient of friction • The friction power
Q.3 Data for a Hydrodynamic Bearing which is designed is as follows: W-600lb, shaft radius = 1.5 in, L=1.5, viscosity = 5.0/1000000 reyn; RPM=1500 and diametral clearance-0.002 in. Find minimum film thickness, operating temperature and coefficient of friction. (7)
Q.3 Data for a Hydrodynamic Bearing which is designed is as follows: W-600lb, shaft radius = 1.5 in, L=1.5, viscosity = 5.0/1000000 reyn; RPM=1500 and diametral clearance-0.002 in. Find minimum film thickness, operating temperature and coefficient of friction. (7)
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
A 3-inch diameter ground shaft rotates at 1000 rev/min in a lathe turned full journal bearing, which is 3 in long. SAE Grade 20 lubricant is used and the lubricant sump has a steady-state temperature of 100°F. The maximum lubricant temperature must not exceed 200°F. Analyze the assembly assuming average clearance and a H8/f8 clearance fit. Determine the following: a. The maximum radial load that the journal can carry and still operate under thick-film lubrication conditions. (6 points) b. The...
2. A shaft carrying a 10KN load is supported by two identical plain journal bearings. The shaft, which normally rotates at 3000 rev/min has, at the bearing region, a nominal diameter of 50 mm and a length of 16 mm. Starting with a radial clearance ratio of 0.0015 and neglecting thermal effects a) Calculate the temperature of the lubricant which will produce an eccentricity ratio of 0.7 if the oil used is SAE10 b) Comment of the necessity to supply...
Assume Kr 1 and Ka In a journal bearing assembly, the shaft has a diameter of 88.900 mm and a bilateral tolerance of + 0.076 mm. The bushing bore diameter is 89.027 mm with a unilateral tolerance of +0:0.119 mm. The bushing length is 50 mm. The SAE 30 oil has an average operating temperature 60°C. For a minimum radial clearance, a speed of 1000 rev/min, and a radial load of 20 kN, find the maximum bearing pressure and its...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
