A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of...

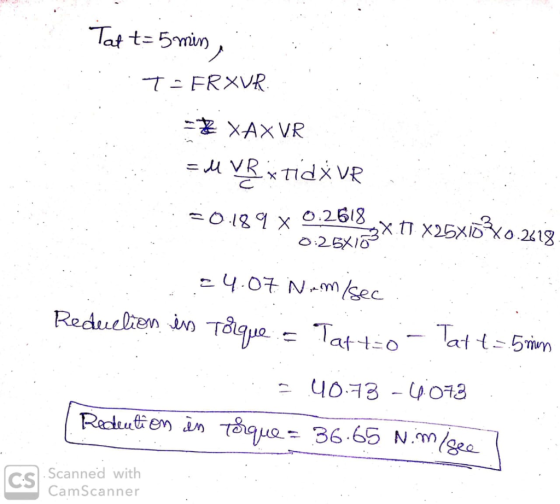

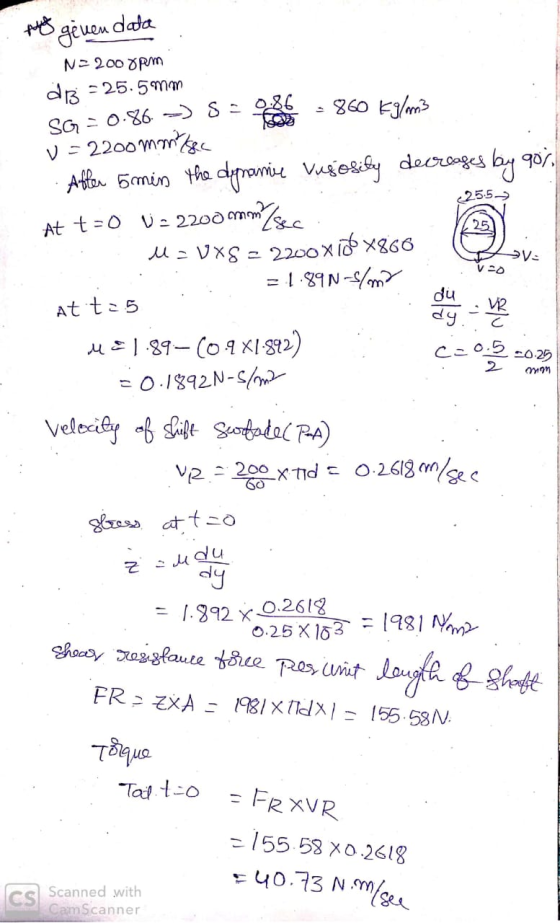

A 25 mm diameter shaft is rotated at 200 rpm in a lubricated cylindrical bearing of diameter 25.5 mm (the figure below). The lubrication oil (SG = 0.86) that fills the gap between the shaft and bearing has an initial kinematic viscosity of 2200 mm2/s. After 5 minutes of running the temperature of the oil increases and the dynamic viscosity decreases by 90 %. Determine the reduction in shaft torque (T) that occurs from startup to after 5 minutes of running. Assume the velocity distribution in the gap is linear (Specific gravity of a fluid = Density of Fluid/Density of water, Kinematic viscosity = Dynamic viscosity/density)
Homework Answers
Add Answer to:
A 25 mm diameter shaft is rotated at 200 rpm in a lubricated
cylindrical bearing of...
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a...
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a minimum oil-film thickness of 0.02 mm and radial clearance of 0.06 mm. It is lubricated by SAE 30 oil. The bearing carries a load of 4 kN of at 900 rpm. Employing the design charts, determine The temperature of the oil film • • The coefficient of friction • The friction power
A shaft inside the sleeve of a journal bearing is being rotated at 1500 rpm. The shaft is 6.00 cm in diameter and is rotating in a bearing sleeve that is 6.02 cm in diameter and 40 cm long. The cleara...
A shaft inside the sleeve of a journal bearing is being rotated at 1500 rpm. The shaft is 6.00 cm in diameter and is rotating in a bearing sleeve that is 6.02 cm in diameter and 40 cm long. The clearance is filled with oil having properties of ν=0.003 m2/s and SG=0.88. a. Find the torque required to rotate the shaft. b. Find the power required to rotate the shaft. (Answer: 44.1 kW) c. Discussion: How do the torque and...
A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance...
A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
13.20 (33 points) A 3-in.-diameter shaft is supported by a bearing 3 in. in length with...
13.20 (33 points) A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
01 ) During a study of a certain flow system the following equation was developed: P2=C+4.6'f...
01 ) During a study of a certain flow system the following equation was developed: P2=C+4.6'f LV P. P.Dg where pi an p2 are pressure between points 1 and 2, C is dimensionless constant, V is velocity, L is the distance between the points, D is the diameter, g is acceleration of gravity and f is drag coefficient. Determine the primary dimensions of the coefficient f so that this equation is homogenous. b) A 25-mm-diameter shaft is pulled through a...
6. A journal bearing has shaft with a diameter of 75 mm. The bushing bore is 75.1 mm and the bushing is 37.5 mm long and supports a load of 2 kN. The journal Speed is 720 RPM. Find the minimum film t...
6. A journal bearing has shaft with a diameter of 75 mm. The bushing bore is 75.1 mm and the bushing is 37.5 mm long and supports a load of 2 kN. The journal Speed is 720 RPM. Find the minimum film thickness, the heat loss rate is SAE 20 oil and the operating temperature is 60 C.
6. A journal bearing has shaft with a diameter of 75 mm. The bushing bore is 75.1 mm and the bushing is...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
Q2. Figure Q2 shows a shaft which transmits a power of 48 kW through flat belts. Pulley A is driven by a motor which rotates at 3000 rpm. The diameter of pulley A is 400 mm and that of pulley B is 25...
Q2. Figure Q2 shows a shaft which transmits a power of 48 kW through flat belts. Pulley A is driven by a motor which rotates at 3000 rpm. The diameter of pulley A is 400 mm and that of pulley B is 250 mm. The thickness of the belts is 4 mm and they are made of a material with density of 1100 kg/m3. Assume no sliding between pulleys and belts a) Calculate the speed of the belt and the...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
3. A 100 mm diameter shaft is supported by a bearing 50 mm long with a minimum oil-film thickness of 0.02 mm and radial clearance of 0.06 mm. It is lubricated by SAE 30 oil. The bearing carries a load of 4 kN of at 900 rpm. Employing the design charts, determine The temperature of the oil film • • The coefficient of friction • The friction power
A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
13.20 (33 points) A 3-in.-diameter shaft is supported by a bearing 3 in. in length with a diametral clearance of 0.004 in. It is lubricated by oil that at operating temperature has a viscosity of 5 ureyn. The shaft rotates at 1800 rpm and carries a radial load of 1200 lb. Estimate the bearing coefficient of friction and the power loss using the Petroff approach.
01 ) During a study of a certain flow system the following equation was developed: P2=C+4.6'f LV P. P.Dg where pi an p2 are pressure between points 1 and 2, C is dimensionless constant, V is velocity, L is the distance between the points, D is the diameter, g is acceleration of gravity and f is drag coefficient. Determine the primary dimensions of the coefficient f so that this equation is homogenous. b) A 25-mm-diameter shaft is pulled through a...
6. A journal bearing has shaft with a diameter of 75 mm. The bushing bore is 75.1 mm and the bushing is 37.5 mm long and supports a load of 2 kN. The journal Speed is 720 RPM. Find the minimum film thickness, the heat loss rate is SAE 20 oil and the operating temperature is 60 C.
6. A journal bearing has shaft with a diameter of 75 mm. The bushing bore is 75.1 mm and the bushing is...
A 5-cm-diameter shaft rotates at 4500 rpm in a 15-cm long, 8-cm-outer-diameter cast iron bearing (k =70 W/m.K) with a uniform clearance of 0.6 mm filled wwith tubricating oil (u 0.03 N.s/m2 and k 0.14 W/m.K). The bearing is cooled externally by a liquid, and its outer surface is maintained at 40°C. Disregarding heat conduction through the shaft and assuming one- dimensional heat transfer, determine (a) the rate of heat transfer to the coolant, (b) the sutacs temperature of the...
Q2. Figure Q2 shows a shaft which transmits a power of 48 kW through flat belts. Pulley A is driven by a motor which rotates at 3000 rpm. The diameter of pulley A is 400 mm and that of pulley B is 250 mm. The thickness of the belts is 4 mm and they are made of a material with density of 1100 kg/m3. Assume no sliding between pulleys and belts a) Calculate the speed of the belt and the...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
