Question

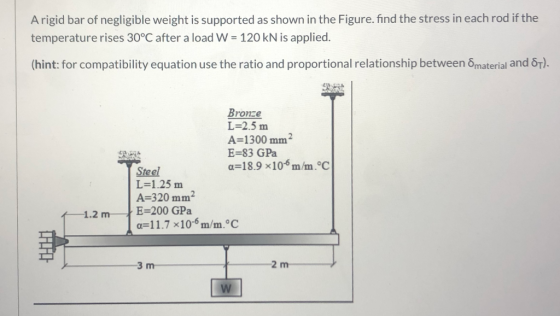

Arigid bar of negligible weight is supported as shown in the Figure. find the stress in each rod if the temperature rises 30°

please show all work

0 0
Add a comment Improve this question Transcribed image text
Answer #1

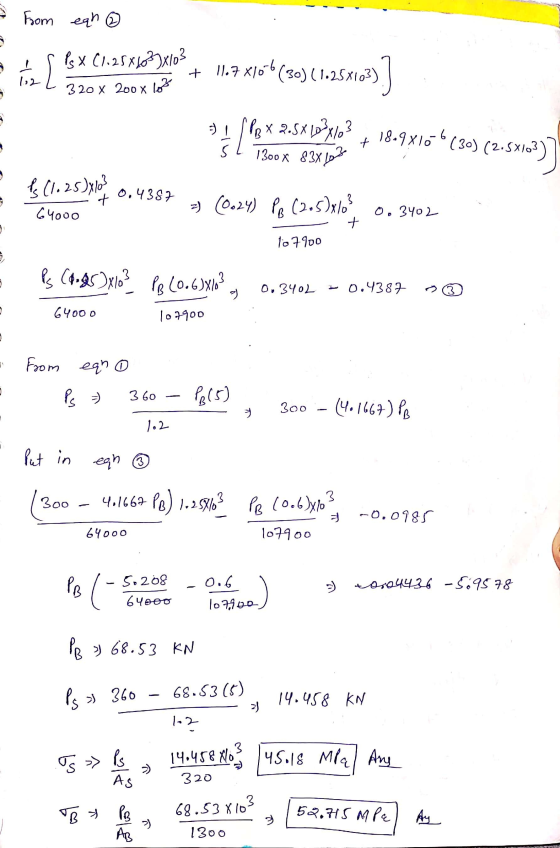

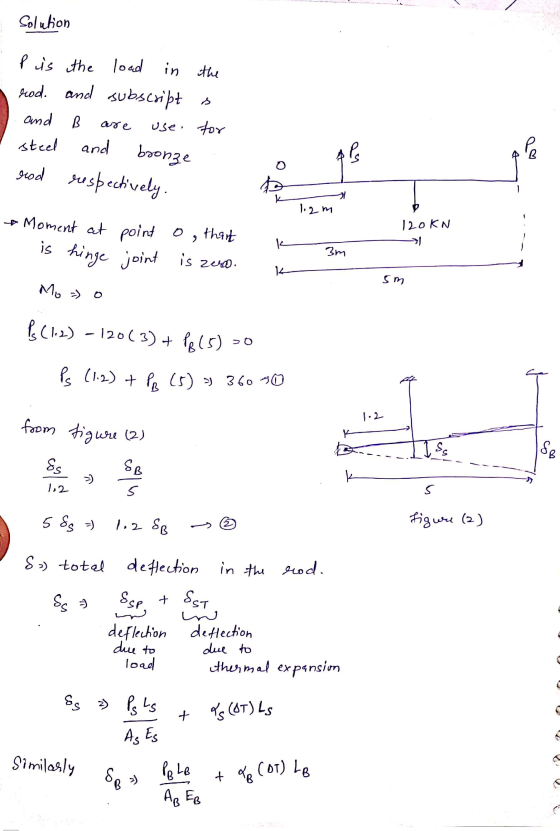

The total deflection in the rod is equal to the deflection due to axial load plus thermal deflection. The compatibility equations are find out by taking the deflections in the bar and use the similar triangles to formulate the relationship between deflection in both of the rods. The unit of load in the rod is taken as kilo Newton, do not forget to change it for calculating deflections.Solution P is the load in in the rod. and subscript and B use for steel and bronze are wo O orod suspectively. B 1 케 1.2 m 1From eqh Ps x (1.25x23x103 11.7 X106(30) (1.2581033] 112 320X 200x lo 3 X 2.5XL03x10 1300x 83 x 3 18.9X166(30) (2.58/03) it (

Add a comment
