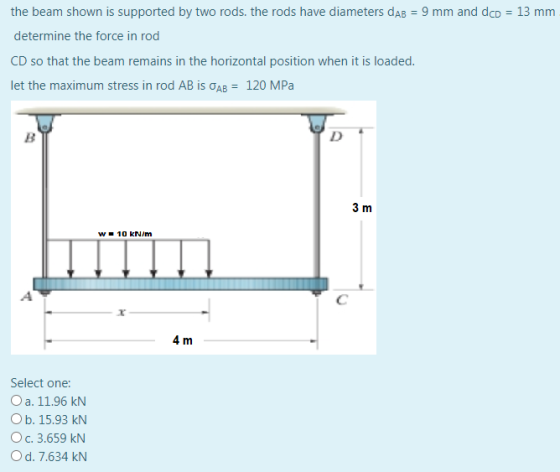

the beam shown is supported by two rods. the rods have diameters dab = 9 mm...
The uniform beam is supported by two rods AB and CD that have cross-sectional areas of 10 mm? and 15 mm”, respectively. (Figure 1) Part A Determine the intensity w of the distributed load so that the average normal stress in the rod AB does not exceed 360 kPa Express your answer to three significant figures and include the appropriate units. μΑ ? KN w = 2.325 m Submit Previous Answers Request Answer * Incorrect; Try Again; 3 attempts remaining...
The rigid beam BD is supported by a smooth pin B, two circular rods at points C and D and is subjected to two concentrated loads as illustrated below. Neglect the weight of the rigid beam and assume that when W= 0 the rigid beam is in the horizontal position and the rods are stress-free. Assume small rotations 2) (1 Assume that h 119 mm and b 112 mm Use the compatibility equations (geometry of deformation) to obtain the ratio...
The beam is supported by two rods AB and CD that have cross-sectional areas of 18 mm2 and 9 mm2, respectively.
Determine the position d of the 6-kN load so that the average normal stress in each rod is the same.
For the beam shown below (neglect self-weight of the beam) 16 kN x 8 mm 19 kN 10 kN/m T 2 mm mm A4n - 3 m +3m → a. Draw the shear force and bending moment diagram. 2 mm Section X-X b. For the cross section x-x given, calculate the maximum tensile and compressive bending stress c. For the cross section X-X given, calculate the maximum shear stress
A wood beam supports the loads shown. The cross-sectional dimensions of the beam are shown in the second figure. Assume LAB=2.8 m, LBC=1.1 m, LCD=1.6 m, w=12 kN/m, P=6.8 kN, b1=20 mm, b2=75 mm, d1=100 mm, and dz=240 mm. Determine the magnitude of: (a) the maximum horizontal shear stress Tmax in the beam. (b) the maximum tension bending stress max (and location x) in the beam. - X BI ec LAB I LBCI LCDJ bil b2 bil Answers: kPa. (a)...
7.26
Torking stress in either tension or compression is AMS. 92.8 mm x 185.6 mm o MPa. am 3 m long is simply supported at each end and carries a uniformly distributed load of 10 kN/m. The beam at rectangular cross section, 75 mm x 150 mm. Determine the magnitude and location of the peak bending ress. Also, find the magnitude of the bending stress at a point 25 mm below the upper surface at the section midway betwcen supports....
Q.1) The cross-section shown below of a simply supported beam is subjected to a maximum shear force of 20 kN. Determine the corresponding shearing stress at points a and b. Also determine the maximum shear stress in the cross- section and state its location 40 mm 4 mm 60 mm 14 mm 4 mm 20 mm 28 mm 20 mm
A concentrated force P is applied in the middle of a simply supported beam with the T-shaped cross section shown. The maximum value of the load P so that the normal stress in the beam does not exceed 25 MPa is most closely: 150 mm P 30 mm 4m 4m 120 mm A' B A 40 mm A. 3.1 kN B. 5.8 kN Oc. 2.5 kN D. 4.3 kN
A concentrated force P is applied in the middle of a...
Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm 150 mm 12 mm 100 mm -200 mm 1.5 m 1. Determine the largest shearing stress in section n-n. (Round the final answer to the nearest whole number.) kPa. The largest shearing stress is 02019 McGraw HIll Bducation Al rights cosorved For the beam and loading shown, consider section-nand take P 177 kN. 160 mm 20 mm 100 mm 30 mm 500 mm- 500...
A 5-m-long simply supported timber beam carries two concentrated loads as shown dimensions of the beam are shown a) At section a-a e the magnitude of the shear stress in the beam at point H. -7748 KNIm in the beam at point K the beam, at any location within the 5-m span length. V occurs in the beam at any location within the 5-m span length.)diagr. the magnitude of the shear stress (b) At section a-a, (e) Determine the maximum...
