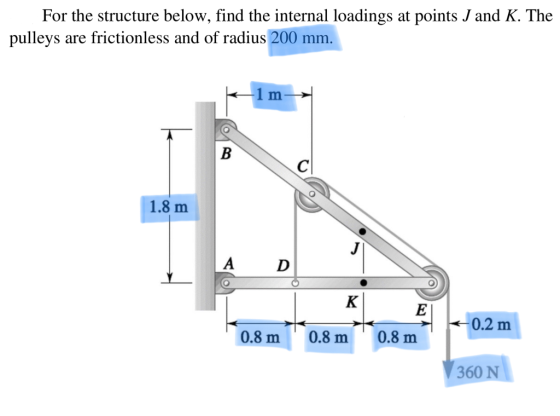

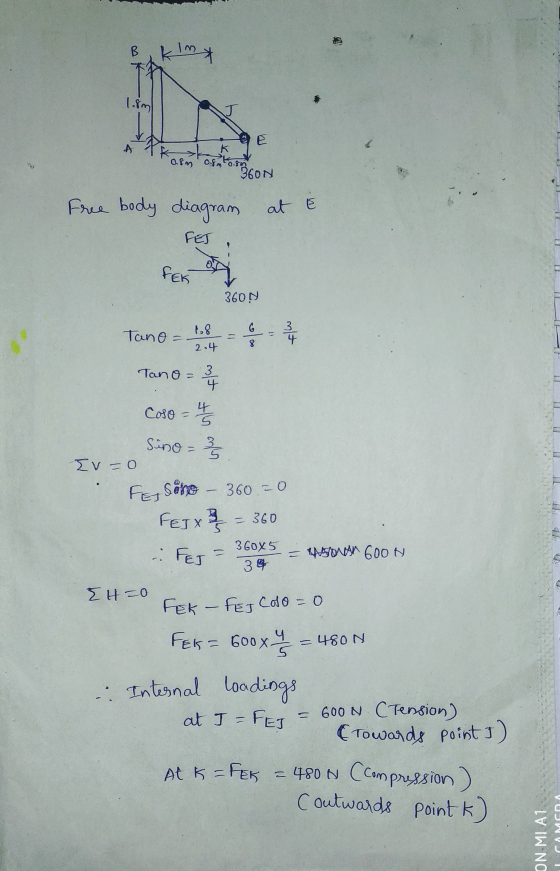

For the structure below, find the internal loadings at points J and K. The pulleys are...
(Solve 7.20) Knowing that the radius of each pulley is 200mm and neglecting friction, determine the...
(Solve 7.20) Knowing that the radius of each pulley is 200mm and
neglecting friction, determine the internal forces at point K of
the frame shown.
E m D -6.75 in. 12 in. Fig. P7.17 1.8 m 7.18 For the frame of Prob. 7.17, determine the magnitude and location of the maximum bending moment in member BC. A 7.19 Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces at point J of the...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is ust to the right of the 15 kN load. 25 kN 5 kN/m 1.5 m-ー← 1.5 m (3) The pipe has a mass of 12 kg/m. If it is fixed to the wall at A, determine the resultant intermal loadings acting on the cross section at B. 300 N 500 N 2 m 400 N
Subject: General Statics and Dynamics A rope supporting a mass passes around four simple frictionless pulleys...
Subject: General Statics and Dynamics
A rope supporting a mass passes around four simple frictionless
pulleys at points A, B, C and D, and around two fixed drums at
points E and F. The mass exerts a force of 1000 N on the rope. The
radius of all pulleys and drums is 75 mm. If the coefficient of
friction between the rope and all the surfaces it contacts is 0.3,
what is the minimum force, P, necessary to hold the...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is just to the right of the 20 kN load. 20 KN 15 kN/m TITUT E - 2m - 2m--- 1.5 m -.--1.5m - (2) The pipe has a mass of 10 kg/m. If it is fixed to the wall at A, determine the resultant internal loadings acting on the cross section at B. SOON Im 2 m BON
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting...
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
Question 7 11.875 out of 12.5 points The internal loadings at a section of the beam...
Question 7 11.875 out of 12.5 points The internal loadings at a section of the beam consist of a normal internal load of 107.9 kip, an internal shear force of 159.3 kip, an internal bending moment about the horizontal axis of 26.2 lb-in, and an internal bending moment about the vertical axis of 36.9 lbin. If L = 11.8 in, what is the total normal stress (in ksi) at point A? Note: Your answer should include requested units and be...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
Determ ine the internal forces at point J for the structure shown, where member BD can...
Determ ine the internal forces at point J for the structure shown, where member BD can only carry axial forces. Take the dimension a 176 mm and the external load P 500 M a mm 225 mm B 120 mm 225 mm A P NV 135 mm axial force: Number Units (tolerance 1 N, magnitude only) FJ shear force: SF= Number Units (tolerance 1 N, magnitude only) bending moment Number Units (tolerance 100 N mm, magnitude only) BMJ
Determ ine...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are...
1. Find forces at points A, B, C, D and E of the following structure. Make...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m 2 kN-m B D 0.2 m C E 0.2 m -0.2 m
(Solve 7.20) Knowing that the radius of each pulley is 200mm and
neglecting friction, determine the internal forces at point K of
the frame shown.
E m D -6.75 in. 12 in. Fig. P7.17 1.8 m 7.18 For the frame of Prob. 7.17, determine the magnitude and location of the maximum bending moment in member BC. A 7.19 Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces at point J of the...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is ust to the right of the 15 kN load. 25 kN 5 kN/m 1.5 m-ー← 1.5 m (3) The pipe has a mass of 12 kg/m. If it is fixed to the wall at A, determine the resultant intermal loadings acting on the cross section at B. 300 N 500 N 2 m 400 N
Subject: General Statics and Dynamics
A rope supporting a mass passes around four simple frictionless
pulleys at points A, B, C and D, and around two fixed drums at
points E and F. The mass exerts a force of 1000 N on the rope. The
radius of all pulleys and drums is 75 mm. If the coefficient of
friction between the rope and all the surfaces it contacts is 0.3,
what is the minimum force, P, necessary to hold the...
(1) Determine the resultant internal loadings on the cross sections through point D and E. Points E is just to the right of the 20 kN load. 20 KN 15 kN/m TITUT E - 2m - 2m--- 1.5 m -.--1.5m - (2) The pipe has a mass of 10 kg/m. If it is fixed to the wall at A, determine the resultant internal loadings acting on the cross section at B. SOON Im 2 m BON
Problem 4 (20 pts) oss section through point D of Determine the resultant internal loadings acting on the cr member AB. 50 mm 50mm 300 mm 150 nm A D 70 N m 200 mm FBD
Question 7 11.875 out of 12.5 points The internal loadings at a section of the beam consist of a normal internal load of 107.9 kip, an internal shear force of 159.3 kip, an internal bending moment about the horizontal axis of 26.2 lb-in, and an internal bending moment about the vertical axis of 36.9 lbin. If L = 11.8 in, what is the total normal stress (in ksi) at point A? Note: Your answer should include requested units and be...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
Determ ine the internal forces at point J for the structure shown, where member BD can only carry axial forces. Take the dimension a 176 mm and the external load P 500 M a mm 225 mm B 120 mm 225 mm A P NV 135 mm axial force: Number Units (tolerance 1 N, magnitude only) FJ shear force: SF= Number Units (tolerance 1 N, magnitude only) bending moment Number Units (tolerance 100 N mm, magnitude only) BMJ
Determ ine...
1. Find forces at points A, B, C, D and E of the following structure. Make sure you write your answers in a table. (20 pts) 4 kN A 0.2 m 2 kN-m B D 0.2 m C E 0.2 m -0.2 m
