Question

you need to use javafx for following problem

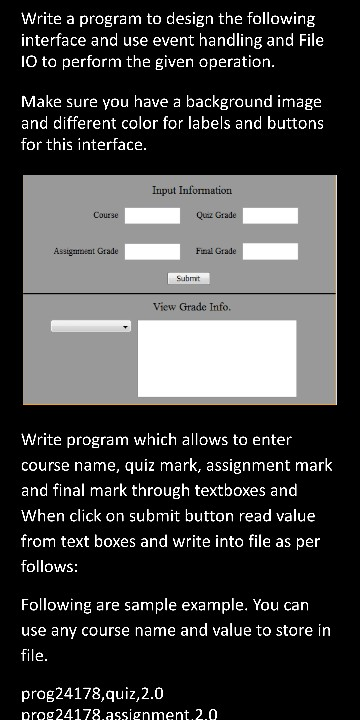

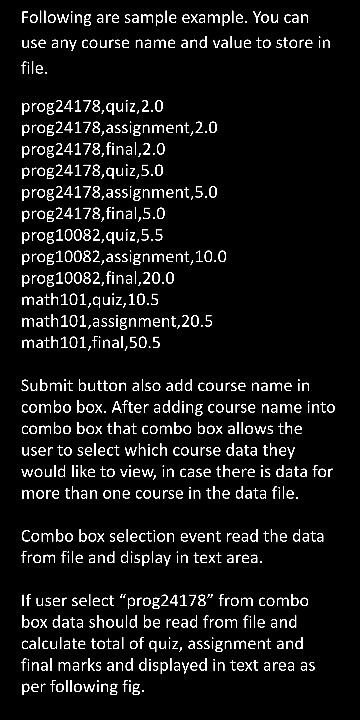

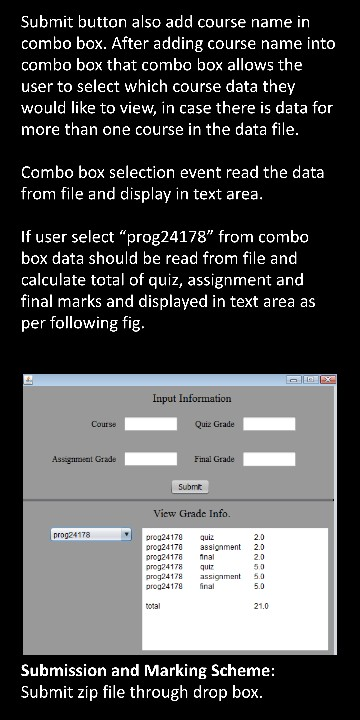

Write a program to design the following interface and use event handling and File 10 to perform the given operation. Make sure you have a background image and different color for labels and buttons for this interface. Input Information Course Quiz Grade Assignment Grade Fal Grade Submit View Grade Info Write program which allows to enter course name, quiz mark, assignment mark and final mark through textboxes and When click on submit button read value from text boxes and write into file as per follows: Following are sample example. You can use any course name and value to store in file. prog24178, quiz,2.0 prog24178.assignment 2.0

these instructions is for JavaFX program so you need to follow the instructions and according to images you have design the GUI

Answer 1

hey there ! i am done with the code ,,, Please give me a like to appreciate my work and efforts,,,

here is the code---

package fileinformation;

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.geometry.HPos;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.ChoiceBox;
import javafx.scene.control.Label;
import javafx.scene.control.TextArea;
import javafx.scene.control.TextField;
import javafx.scene.layout.ColumnConstraints;
import javafx.scene.layout.GridPane;
import javafx.scene.layout.Priority;
import javafx.scene.layout.StackPane;
import javafx.scene.shape.HLineTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;
import javafx.scene.text.Font;
import javafx.scene.text.FontWeight;
import javafx.stage.Stage;

public class FileInformation extends Application {


private GridPane createForm()
{
// Instantiate a new Grid Pane
GridPane gridPane = new GridPane();

//Setting the padding
gridPane.setPadding(new Insets(10, 10, 10, 10));

//Setting the vertical and horizontal gaps between the columns
gridPane.setVgap(5);
gridPane.setHgap(5);

//Setting the Grid alignment
gridPane.setAlignment(Pos.CENTER);


return gridPane;
}


private void addUIControls(GridPane gridPane) {
// Add Header
Label headerLabel = new Label("Input Information");
headerLabel.setFont(Font.font("Arial", FontWeight.BOLD, 24));
gridPane.add(headerLabel, 0,0,2,1);
GridPane.setHalignment(headerLabel, HPos.CENTER);
GridPane.setMargin(headerLabel, new Insets(20, 0,20,0));

// Add Name Label
Label courseLabel = new Label("Course : ");
gridPane.add(courseLabel, 0,1);

// Add Name Text Field
TextField courseField = new TextField();

gridPane.add(courseField, 1,1);

// Add Email Label
Label quizLabel = new Label("Quiz Grade : ");
gridPane.add(quizLabel, 2,1);

// Add Email Text Field
TextField quizField = new TextField();

gridPane.add(quizField, 3, 1);

// Add assignmentLabel Label
Label assignmentLabel = new Label("Assignment Grade : ");
gridPane.add(assignmentLabel, 0, 3);

// Add assignment Field
TextField assignmentField = new TextField();
gridPane.add(assignmentField, 1, 3);



// Add assignmentLabel Label
Label finalLabel = new Label("Final Grade : ");
gridPane.add(finalLabel, 2, 3);

// Add assignment Field
TextField finalField = new TextField();
gridPane.add(finalField, 3, 3);





// Add Submit Button
Button submitButton = new Button("Submit");
submitButton.setPrefHeight(40);
submitButton.setDefaultButton(true);
submitButton.setPrefWidth(100);
gridPane.add(submitButton, 0, 4, 2, 1);
GridPane.setHalignment(submitButton, HPos.CENTER);
GridPane.setMargin(submitButton, new Insets(20, 0,20,0));


//Creating an object of the Path class
Path path = new Path();

//Moving to the starting point
MoveTo moveTo = new MoveTo();
moveTo.setX(0.0);
moveTo.setY(10.0);

//Instantiating the HLineTo class
HLineTo hLineTo = new HLineTo();

//Setting the properties of the path element horizontal line
hLineTo.setX(500.0);

//Adding the path elements to Observable list of the Path class
path.getElements().add(moveTo);
path.getElements().add(hLineTo);

//Creating a Group object
Group root = new Group(path);

//Choice box for location
ChoiceBox choice = new ChoiceBox();

gridPane.add(choice, 2, 5);

TextArea textArea = new TextArea();
textArea.setPrefRowCount(10);
textArea.setPrefColumnCount(20);
gridPane.add(textArea, 2, 6);



submitButton.setOnAction(new EventHandler<ActionEvent>() {

@Override
public void handle(ActionEvent t) {

String coursename=courseField.getText();
String quizname=quizField.getText();
String assignment=assignmentField.getText();
String finalgrade=finalField.getText();
choice.getItems().add(coursename);
String info=coursename+" quiz "+quizname+ " \n"+coursename+" assignment "+assignment+ " \n"+coursename+" final "+finalgrade+ " ";
textArea.setText(info);

}
});



}





@Override
public void start(Stage primaryStage) {
// Create the registration form pane
GridPane gridPane = createForm();
// Add UI controls to the information form grid pane
addUIControls(gridPane);
// Create a scene with the registration form gridPane as the root node.
Scene scene = new Scene(gridPane, 600, 700);

StackPane root = new StackPane();



primaryStage.setTitle("Input Information!");
primaryStage.setScene(scene);
primaryStage.show();
}

public static void main(String[] args) {
launch(args);
}

}

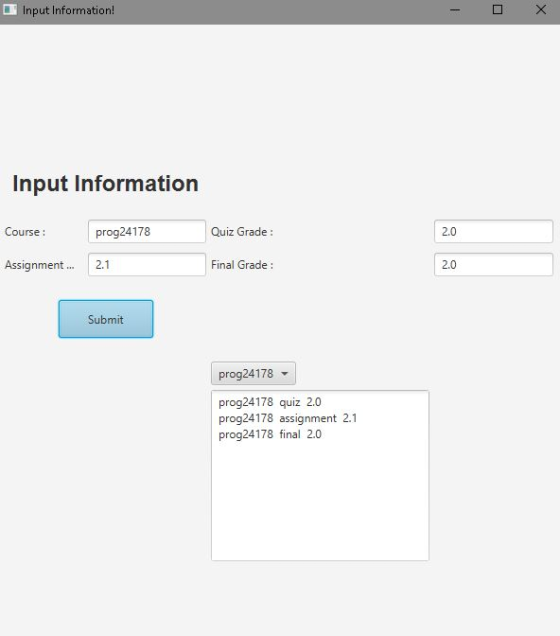

and the snapshot of output ---

Input Information! - х Input Information Course: prog24178 Quiz Grade: 2.0 Assignment... 2.1 Final Grade: 2.0 Submit prog24178 prog24178 quiz 2.0 prog24178 assignment 2.1 prog24178 final 2.0

Thank You !
