A force P=46N is applied to the claw hammer shown. What force is exerted on the...

Question

Question

A force P=46N is applied to the claw hammer shown. What force is exerted on the nail? Write the final answer here and upload

science Advanced-Physics

Answer 1

Answer #1

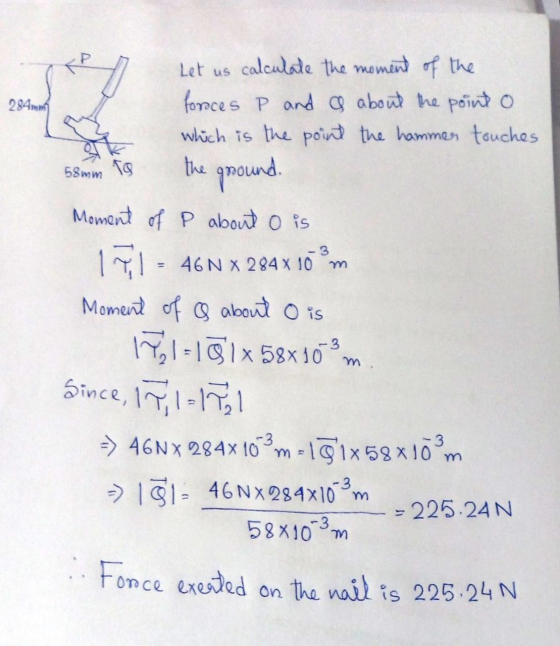

284mm Let us calculate the moment of the forces P and a about the point o which is the point the hammer touches the 58mm To g

Answer 2
