A star-connected alternator whose neutral point is solidly grounded, has an open circuit voltage of 14KV....

A star-connected alternator whose neutral point is solidly grounded, has an open circuit voltage of 14KV. The positive, negative and zero sequence impedance are j12, j4 and j2.4ohms/phase respectively. A single line to earth fault occurs on phase 'a' through a resistive object of resistance 0.8 ohms. Find
a) fault current
b) phase voltage of 'b' at the point of fault.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

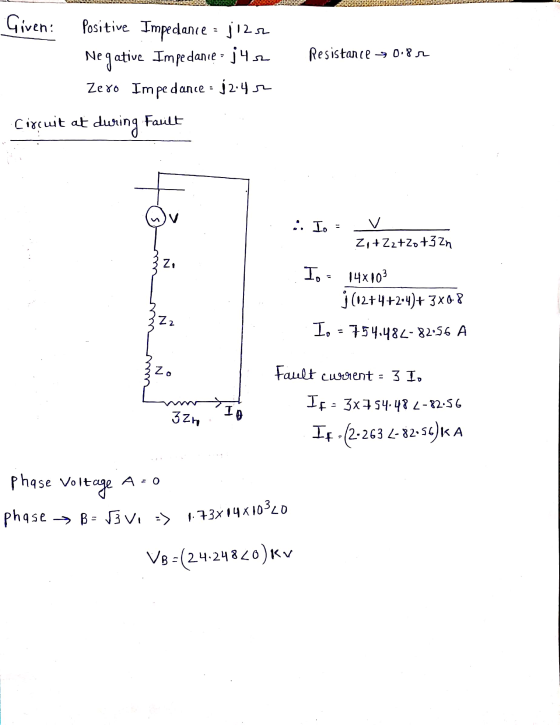

Resistance 0.82 Given: Positive Impedance = j12r Negative Impedanie: 342 Zero Impedance: 32.4% Circuit at during Facile .:. I

0 0
