Question (a)
clc;
clear;
close all;
Kp = 1;
Kd = 1;
Ki = 0;
s = tf('s');
P = 1/((s + 1)*(s + 2)*(s + 59));
C = pid(Kp, Ki, Kd);
sys = feedback(C*P, 1);
disp('The closed loop transfer function is :');
sys
t = 0:0.0001:5;
u = ones(size(t));
y = step(sys, t);
e = u - y';
plot(t, y, 'k', 'linewidth', 2);
grid
xlabel('Time, t (sec)');
ylabel('Amplitude');

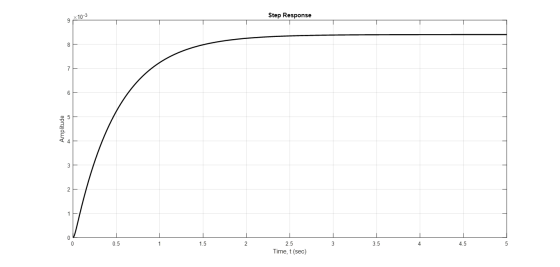

title('Step Response');
figure
plot(t, e, 'k', 'linewidth', 2);
grid
xlabel('Time, t (sec)');
ylabel('Amplitude');

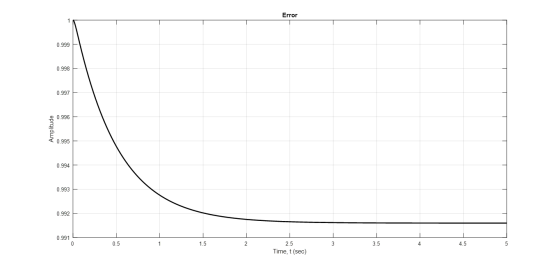

title('Error');
ess = 1 - y(end);
fprintf('The steady state error will be %f \n', ess);
After executing we get
In the command window we get
The closed loop transfer function is :
sys =
s + 1
--------------------------
s^3 + 62 s^2 + 180 s + 119
Continuous-time transfer function.
The steady state error will be 0.991597
>>


Question (b)
clc;
clear;
close all;
s = tf('s');
P = 1/((s + 1)*(s + 2)*(s + 59));

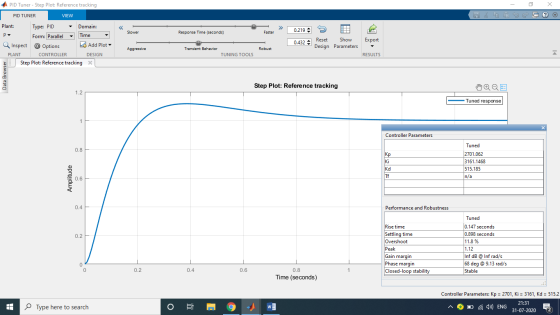

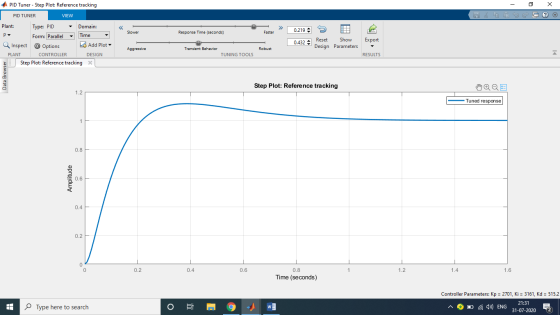

pidTuner(P)
After executing we get

The parameters

We can see that the steady state error is 0
Kp = 2701, Ki = 3161, Kd = 515.2
Using MATLAB. We want to control output(y) using PID control in Kds? +Kps+Ki C(s) S Input(r)...
Using MATLAB. We want to control output(y) using PID control in Kds? +Kps+Ki C(s) S Input(r) is a magnitude1 step. Plant is given by 1 (s+1)(3+2)(s+5 ) controller plant + 14 y C(s) P(S) a) Calculate Closed Loop characteristics and steady-state error(unity feedback and Kp=1, Kd=1, Ki=0)) 2.Using automatic PID tuning function, reduce steady-state error=0 and report Kp=?, Kd=? And Ki=?
We want to control output(y) using PID control in Kds2+KpS+Ki C(s) S Input(r) is a magnitude1 step. Plant is given by 1 (s+1)(s+2)(s+5) controller plant Y C(s) P(s) a) Calculate Closed Loop characteristics and steady-state error(unity feedback and Kp=1, Kd=1, Ki=0)) 2.Using automatic PID tuning function, reduce steady-state error=0 and report Kp=?, Kd=? And Ki=?
Please answer all the questions with MATLAB and also upload the
code. Thanks.
