A cam with a knife-edge follower has a motion with the following characteristics:
A cam with a knife-edge follower has a motion with the following characteristics:
lift = 50 mm
base circle radius = 25 mm
outstroke = 110 degrees cam rotation with cycloidal motion
first dwell = 80 degrees
return stroke = 90 degrees with simple harmonic motion
Cam rotates at 550 rpm in CCW direction
Determine the maximum velocity and acceleration of the follower during outstroke and return stroke.
Homework Answers

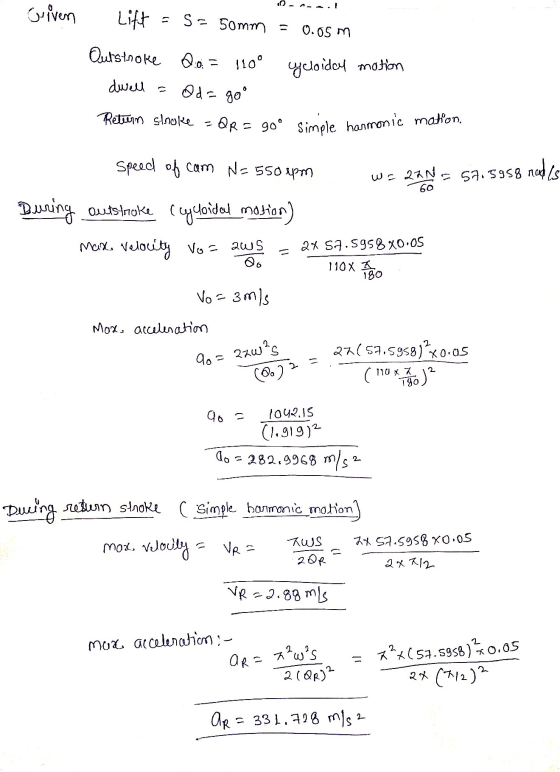

in this question we have to determine maximum velocity and acceleration of follower
