A cam rotating clockwise at a uniform speed of 120 rpm
A cam rotating clockwise at a uniform speed of 120 rpm. is required to give motion to knife follower as below:
(a) Follower to move outwards through 40 mm during 120° of cam rotation with simple harmonic motion,
(b) Follower to dwell for the next 60° of cam rotation,
(c) Follower to return to its starting position during next 90° of cam rotation with
uniformly accelerated motion, and
(d) Follower to dwell for the rest of the cam rotation.

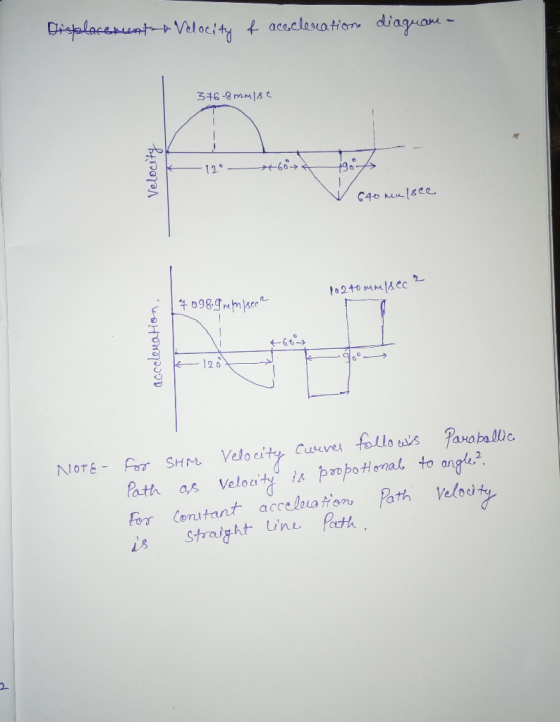

The minimum diameter of the cam is 50 mm and the line of stroke of the follower offsets with 10 mm the axis of the cam shaft. Find the maximum velocity and acceleration during outstroke and return stroke then draw the velocity and acceleration diagrams.
Homework Answers

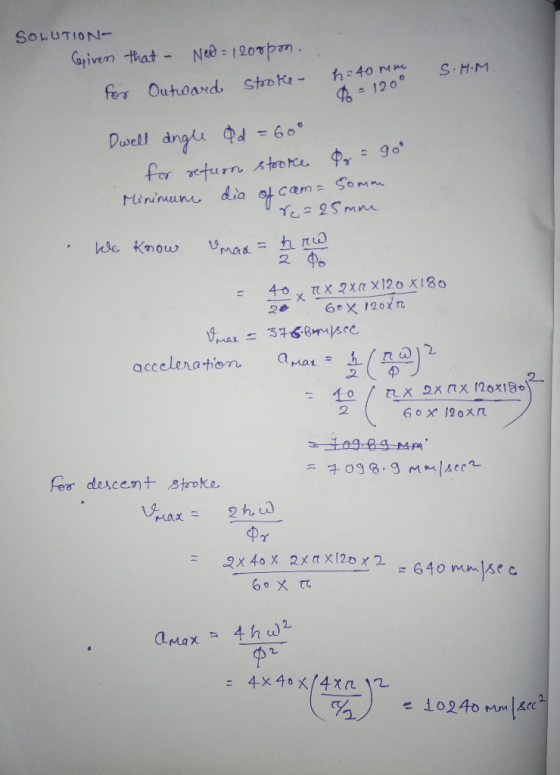

By using suitable formulae for SHM path and constant accleleration path, maximum velocity and acceleration can be calculated.
