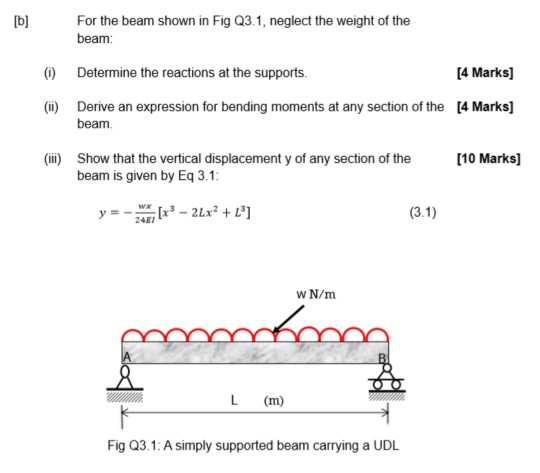

![[b] For the beam shown in Fig 23.1, neglect the weight of the beam: 0 Determine the reactions at the supports [4 Marks] ( Der](http://img.homeworklib.com/questions/0c8e2370-ea9f-11ea-a27b-8ba9b4a71c39.png?x-oss-process=image/resize,w_560)

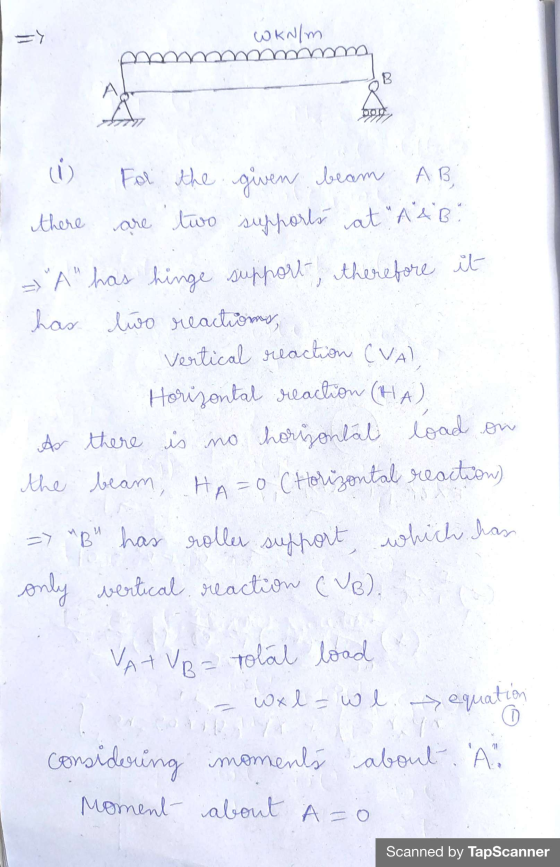

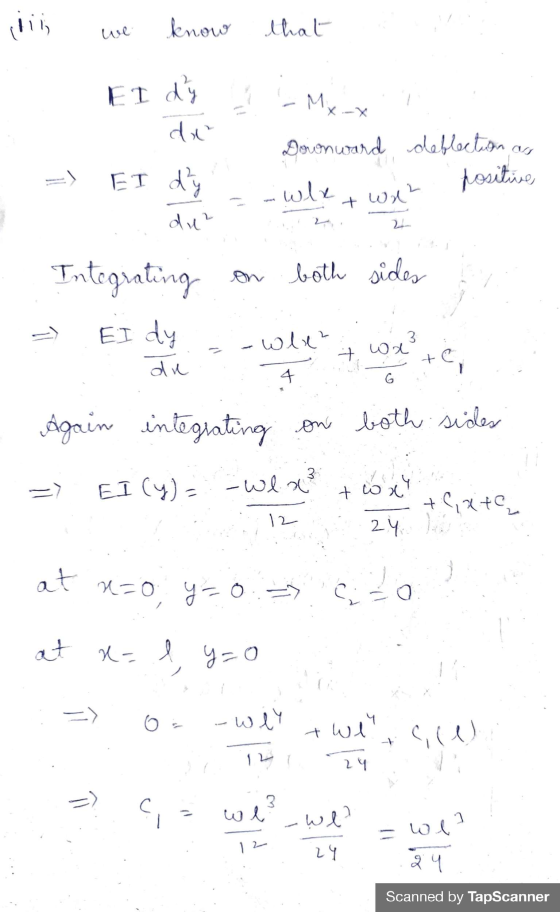

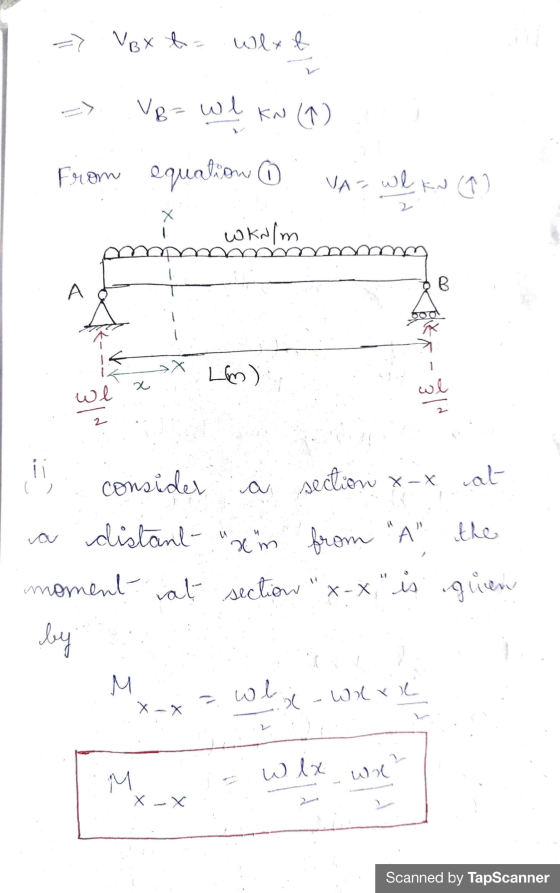

Homework Answers
If
you have any doubt please comment, I will assist you regarding the
same, if you are satisfied please like the answer
Add Answer to:
yeh question solve krna Hy.
[b] For the beam shown in Fig 23.1, neglect the weight...
