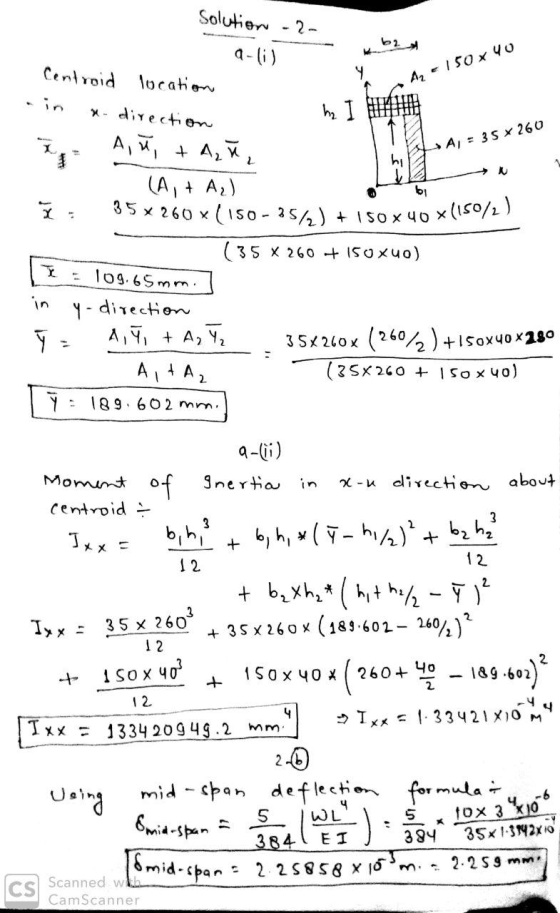

2. a. An edge beam with sectional dimensions is shown in Fig.3. i. Determine the location...
Using Conjugate Beam Method,
Determine the Deflection and slope at mid-span of a simply
supported beam, as shown in figure
Using Conjugate Beam Method, Determine the Deflection and slope at mid 40 kN 60 kN
A 5-m-long simply supported timber beam carries two concentrated loads as shown dimensions of the beam are shown a) At section a-a e the magnitude of the shear stress in the beam at point H. -7748 KNIm in the beam at point K the beam, at any location within the 5-m span length. V occurs in the beam at any location within the 5-m span length.)diagr. the magnitude of the shear stress (b) At section a-a, (e) Determine the maximum...
A beam, 3 m long, is simply supported at its ends and is to carry a point load of 30 kN at mid-span. If the beam is rectangular in section, with its depth equal to twice its width, determine suitable dimensions to limit the maximum bending stress at mid-span to 80 MN/m2.
Problem 1 A simply supported beam of length L = 5m is subjected to a point load P= 20 kN at the mid span. Draw the shear force and bending moment diagram for the beam. If the beam is 300mm x 500mm, calculate the deflection at the midspan for the following orientations where the dashed line shows the bending axis. Explain the difference in results. Which orientation is better for beam performance and why? Take E = 30,000 MPa 300...
5. Determine the mid-span short-term deflection of a simply supported beam with the section shown in Figure Q5. Design data: Concrete strength: fcu 30 MPa. Area of tensile steel reinforcement: As 1500 mm Area of compressive steel reinforcement: A,-1500 mm2 Instantaneous static modulus of elasticity of concrete = 25GPa. Span -8.0 m Loading: Dead load 5.0 kN/m (uniformly distributed load); Live load 5.0 kN/m (uniformly distributed load) (Hint: the height of neutral axis of the mid-span section under the service...
For the next two problems use the following information: A simply supported Douglas fir wood beam is designed to carry a concentrated load P of 1250 lbr in the center. The distance L between supports is 96 inches. For the beam cross sectional area given below, determine the moment of inertia and deflection. Douglas fir has the following properties: Modulus of Elasticity 1.76 x 100 psi, Density 34 lbm/ff3 Beam dimensions are: Web thickness tw 0.875 in, flange thickness t...
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
A wood beam supports the loads shown. The cross-sectional dimensions of the beam are shown in the second figure. Assume LAB=2.8 m, LBC=1.1 m, LCD=1.6 m, w=12 kN/m, P=6.8 kN, b1=20 mm, b2=75 mm, d1=100 mm, and dz=240 mm. Determine the magnitude of: (a) the maximum horizontal shear stress Tmax in the beam. (b) the maximum tension bending stress max (and location x) in the beam. - X BI ec LAB I LBCI LCDJ bil b2 bil Answers: kPa. (a)...
QUESTION 4 (25 marks) A simply supported beam is loaded by an uniform distributed load, wkN/m, over the span of the beam, L, as shown in Figure Q4. (a) Determine the end reactions at point A and B in terms of w and L. (4 marks) (b) At an arbitrary point, x, express the internal mom (c) Show that the deflection curve of the beam under the loading situation is ent, M(x), in x, w, and L. (5 marks) 24EI...
EMT 101- Engineering Programming Homework 3 Deflection of an I-Beam(100 %) You are to develop a program that calculates and plots the vertical deflection of a beam subjected to a force acting on it as given in Figure 1. The I-Beam has length, L 2m with its left end fixed at the wall (no deflection at wall) The right end of the beam is applied with a vertical load force P with a vertical deflection function (3L -a) EI wherer...
