If the unmodulated current in the antenna load of an AM transmitter is 10 A, determine...
If the unmodulated current in the antenna load of an AM transmitter is 10 A, determine the increase in this current resulting from 80% modulation.
Homework Answers

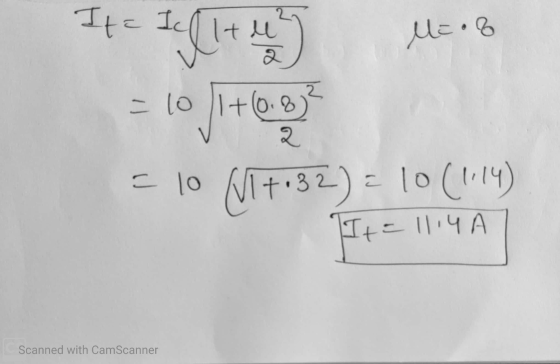

Answer: The unmodulated current is 10A and modulation index is
.8. so apply the formula of current of increase in current as
I=Ic
1+.82/2
Detailed solution is attached here
Add Answer to:
If the unmodulated current in the antenna load of an AM
transmitter is 10 A, determine...
What is the total average power for a commercial AM transmitter with an unmodulated carrier power...
What is the total average power for a commercial AM transmitter with an unmodulated carrier power of 20 kW and 100% modulation? 20 kW 30 kW 53.34 kW 80 kW
An AM transmitter with a carrier power of 20 kW is connected to a 50 Ω...
An AM transmitter with a carrier power of 20 kW is connected to a 50 Ω antenna. In order to design a lightning arrestor for the antenna, it is necessary to know the maximum instantaneous voltage that will appear at the antenna terminals. Calculate this voltage, assuming 100 modulation for the transmitter. Hint: For 100 % modulation, Emax = 2 × Ec (peak)
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a....
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a. (10 Marks) b. Alossless 50 ohms transmission line is connected to unknown load impedance. Voltage measurements along the line reveal that the maximum and minimum voltage values are (1)volts and (V2 - 1)volts respectively. The distance at which maximum voltage is observed...
An ECE student decided to replace his radio transmitter and design a new one. He soon...
An ECE student decided to replace his radio transmitter and design a new one. He soon found out that the antenna current of his new transmitter, which is modulated to a depth of 72% by an audio signal, is equal to 14 A. It increase to 16.08 A as a result of simultaneous modulation by another audio signal. What is the modulation index of the second audio signal?
Problem 5 An antenna with a load impedance Z. = (73 + j42.5) 2 is connected...
Problem 5 An antenna with a load impedance Z. = (73 + j42.5) 2 is connected to a transmitter through a 50- 2 lossless transmission line. If under matched conditions (50-22 load) the transmitter can deliver 10 W to the load, how much power can it deliver to the antenna? Assume that Ze=Zo.
A transmitter antenna broadcasts a non-commercial FM signal having modulation index mf = 5 and carrier...
A transmitter antenna broadcasts a non-commercial FM signal having modulation index mf = 5 and carrier deviation Δfc = 40.5 kHz. Find the number of pairs of sidebands from Bessel’s table. What is the frequency separation between the sidebands? Find the bandwidth required to transmit the FM signal from parts a and b.
A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna....
A tank circuit in a radio transmitter is a series RCL circuit connected to an antenna. The antenna broadcasts radio signals at the resonant frequency of the tank circuit. Suppose that a certain tank circuit in a shortwave radio transmitter has a fixed capacitance of 1.2 x 10-11 F and a variable inductance. If the antenna is intended to broadcast radio signals ranging in frequency from 4.6 MHz to 8.4 MHz, find the (a) minimum and (b) maximum inductance of...
Consider a lunar base with an X-Band transmitting parabolic antenna at frequency 10 GHz. The transmitter...
Consider a lunar base with an X-Band transmitting parabolic antenna at frequency 10 GHz. The transmitter power is 22 dB. Communications are maintained with the receiving ground station on Earth that is equipped with a 12-foot-diameter dish antenna. 1. What is the wavelength of the radio waves? 2. What is the gain of the transmitter in dB? 3. Assume atmospheric loss is -3dB, what is the gain of the receiving antenna?
In a broadcasting communication system, the transmitter power is 40 KW, the channel attenuation is 80...
In a broadcasting communication system, the transmitter power is 40 KW, the channel attenuation is 80 dB, and the noise power spectral density is 10-10 W/Hz. The message signal has a bandwidth of 104 Hz and a normalized message signal power of 0.2 Determine the output SNR if the modulation format of the signal is: (a) DSB-SC (b) SSB-SC (c) Conventional AM with a modulation index of 0.85. (d) FM with a frequency modulation index of 3
Assume that an AM transmitter is modulated with a video testing signal given by em(t) =...
Assume that an AM transmitter is modulated with a video testing signal given by em(t) = =20 + 60 sin (2πf1t), where f1 = 3.57 MHz. Let the carrier signal c(t) = Ac cos(2πfct), where Ac = 100 and fc = 100 MHz. The AM signal is fed into a 50-Ω load. (a) Derive an expression for the AM DSB-FC signal in time domain. (b) Construct the AM waveform, giving numerical values of the maximum amplitude, Amax and the minimum...
A radio transmitter is connected to an antenna having impedance 8 + j40 Ω with a 50 coaxial cable. If the transmitter can deliver 30 W to the load, how much power is delivered to the antenna? a. (10 Marks) b. Alossless 50 ohms transmission line is connected to unknown load impedance. Voltage measurements along the line reveal that the maximum and minimum voltage values are (1)volts and (V2 - 1)volts respectively. The distance at which maximum voltage is observed...
Problem 5 An antenna with a load impedance Z. = (73 + j42.5) 2 is connected to a transmitter through a 50- 2 lossless transmission line. If under matched conditions (50-22 load) the transmitter can deliver 10 W to the load, how much power can it deliver to the antenna? Assume that Ze=Zo.
In a broadcasting communication system, the transmitter power is 40 KW, the channel attenuation is 80 dB, and the noise power spectral density is 10-10 W/Hz. The message signal has a bandwidth of 104 Hz and a normalized message signal power of 0.2 Determine the output SNR if the modulation format of the signal is: (a) DSB-SC (b) SSB-SC (c) Conventional AM with a modulation index of 0.85. (d) FM with a frequency modulation index of 3
