Consider a lunar base with an X-Band transmitting parabolic antenna at frequency 10 GHz. The transmitter...

Consider a lunar base with an X-Band transmitting parabolic antenna at frequency 10 GHz. The transmitter power is 22 dB. Communications are maintained with the receiving ground station on Earth that is equipped with a 12-foot-diameter dish antenna.

1. What is the wavelength of the radio waves?

2. What is the gain of the transmitter in dB?

3. Assume atmospheric loss is -3dB, what is the gain of the receiving antenna?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

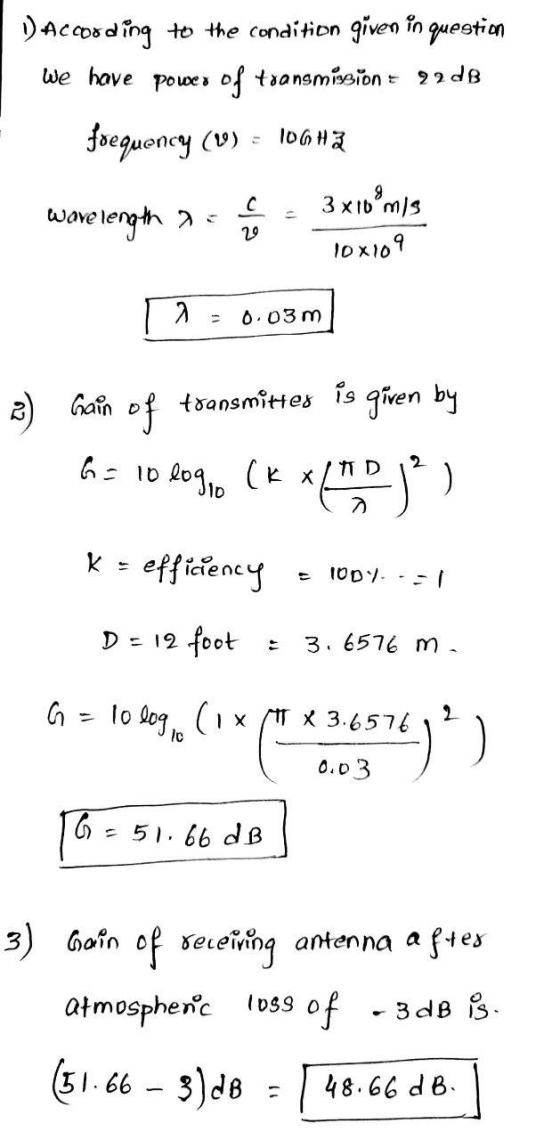

Answer #1

0 0
Add a comment
