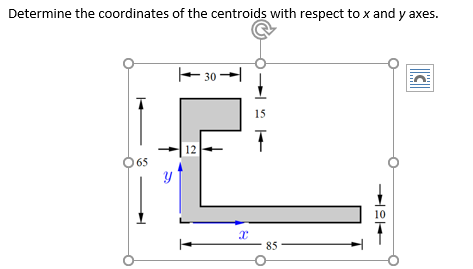

![Determine the coordinates of the centroids with respect to x and y axes. - 30 []] 15 12 065 Y 10 2 85](http://img.homeworklib.com/questions/5771d1f0-eb0a-11ea-99a3-a70bd57cf20a.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
Determine the coordinates of the centroids with respect to x and y axes. - 30 []]...
Problem 7.29 Determine the coordinates of the centroids. Solution: Break into a rectangle, a triangle and...
Problem 7.29 Determine the coordinates of the centroids. Solution: Break into a rectangle, a triangle and a circular hole TE 5[(10)(8)] + 12 (_(8X6)) - 4[*(291 = 6.97 in (10)(8) + (8)(6) - (2) 4[(10)(8)] + 48 (4 (8)(6)) - 3[(2)*1 = 3.79 in (10)(8) + (86) - (2) 2 in 8 in o 16.97 in y = 3.79 in 3 in -6 in 10 in
Determine the MOI with respect to the centroidal x and y axes(Ix and Iy)LA...
Determine the MOI with respect to the centroidal x and y axes
(Ix and Iy)
1. Centroids: Determine the area and location of the centroid X and Y of the following...
1. Centroids: Determine the area and location of the centroid X and Y of the following shape using double integrals and polar coordinates. Use the angles in radians. Use b=4 inches 300 450 A x area = ſſ dxdy 1. Centroids: Determine the area and location of the centroid X and Y of the following shape using double integrals and polar coordinates. Use the angles in radians. Use b=4 inches 300 450 A x area = ſſ dxdy 2. Parameterization...
Determine the moments of inertia of the area shown with respect to the x & y axes respectively parallel and perpendicular to 6 (of 10) side AB.
Determine the moments of inertia of the area shown with respect to the x & y axes respectively parallel and perpendicular to 6 (of 10) side AB. Consider the origin to be at A.
3. Calculate the moment of inertia with respect to both centroidal axes for the area a,...
3. Calculate the moment of inertia with respect to both centroidal axes for the area a, b, c, d (30 points) Y (b) Y 10" 5 X X X 2" 15" 15" 6" 2" 6" T. (c) (d)
Using the parallel-axis theorem, determine the product of inertia of the area shown with respect to the centroidal x and y axes.
Using the parallel-axis theorem, determine the product of inertia of the area shown with respect to the centroidal x and y axes.
Problem a.b) andis an optional bonus problem) Determine the x and y coordinates of the centroid(,)...
Problem a.b) andis an optional bonus problem) Determine the x and y coordinates of the centroid(,) of the shaded area given below. 1 Find y function first. Note that in a) y is a linear function; in b) y is a quadratic function with zero slope at x-b; in c) the area is a quarter of circular area. Use the formulas for the centroids we developed in class. 2) a) b) AR
Determine the moments of inertia of the area shown with respect to the x & y...
Determine the moments of inertia of the area shown with respect
to the x & y axes respectively parallel and perpendicular to
side AB. Consider the origin to be at A.
12 mm 12 mm 20 mm 45 mm
Determine the centroid of the homogeneous plate, with respect to the given axes. Also determine the...
Determine the centroid of the homogeneous plate, with respect to
the given axes.
Also determine the moment of inertia in Ix
Note:
* For the semicircle the centroidal moment of inertia at x is equal
to
0.1098R ^ 4
*For the triangle, the centroidal moment of inertia at x is equal
to
bh³ / 36
Y 10 cm 40 cm 20 cm 40 cm X 20 cm
Determine the moments of inertia of the area shown with respect tot he x and y...
Determine the moments of inertia of the area shown
with respect tot he x and y axes respectively.
File Edit View Help Problem: 10 of 10) Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units Determine the moments of inertia of the area shown with respect to the x & y axes respectively Ix- (1767 28 mm 28 mm 1 06m 106 mm^4 10^6 mm"4 7 mm X 14 mm 7 mm eck...
Problem 7.29 Determine the coordinates of the centroids. Solution: Break into a rectangle, a triangle and a circular hole TE 5[(10)(8)] + 12 (_(8X6)) - 4[*(291 = 6.97 in (10)(8) + (8)(6) - (2) 4[(10)(8)] + 48 (4 (8)(6)) - 3[(2)*1 = 3.79 in (10)(8) + (86) - (2) 2 in 8 in o 16.97 in y = 3.79 in 3 in -6 in 10 in
Determine the MOI with respect to the centroidal x and y axes
(Ix and Iy)
1. Centroids: Determine the area and location of the centroid X and Y of the following shape using double integrals and polar coordinates. Use the angles in radians. Use b=4 inches 300 450 A x area = ſſ dxdy 1. Centroids: Determine the area and location of the centroid X and Y of the following shape using double integrals and polar coordinates. Use the angles in radians. Use b=4 inches 300 450 A x area = ſſ dxdy 2. Parameterization...
3. Calculate the moment of inertia with respect to both centroidal axes for the area a, b, c, d (30 points) Y (b) Y 10" 5 X X X 2" 15" 15" 6" 2" 6" T. (c) (d)
Problem a.b) andis an optional bonus problem) Determine the x and y coordinates of the centroid(,) of the shaded area given below. 1 Find y function first. Note that in a) y is a linear function; in b) y is a quadratic function with zero slope at x-b; in c) the area is a quarter of circular area. Use the formulas for the centroids we developed in class. 2) a) b) AR
Determine the moments of inertia of the area shown with respect
to the x & y axes respectively parallel and perpendicular to
side AB. Consider the origin to be at A.
12 mm 12 mm 20 mm 45 mm
Determine the centroid of the homogeneous plate, with respect to
the given axes.
Also determine the moment of inertia in Ix
Note:
* For the semicircle the centroidal moment of inertia at x is equal
to
0.1098R ^ 4
*For the triangle, the centroidal moment of inertia at x is equal
to
bh³ / 36
Y 10 cm 40 cm 20 cm 40 cm X 20 cm
Determine the moments of inertia of the area shown
with respect tot he x and y axes respectively.
File Edit View Help Problem: 10 of 10) Do not round intermediate answers. Give your final answer(s) to three decimal places. Check your units Determine the moments of inertia of the area shown with respect to the x & y axes respectively Ix- (1767 28 mm 28 mm 1 06m 106 mm^4 10^6 mm"4 7 mm X 14 mm 7 mm eck...
