Homework Answers
Add Answer to:

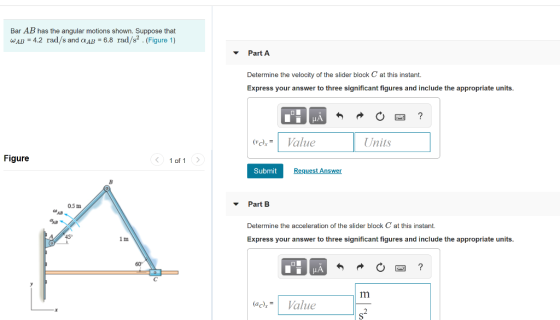

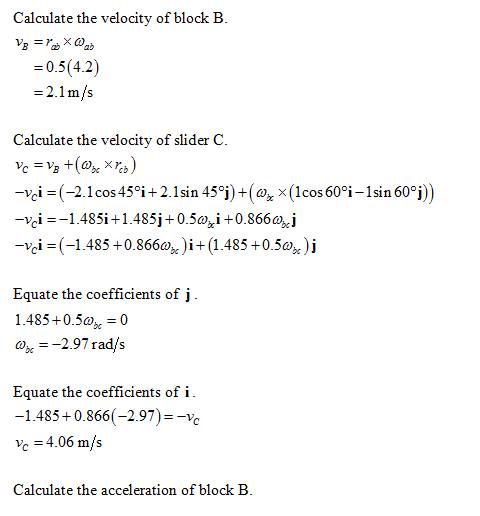

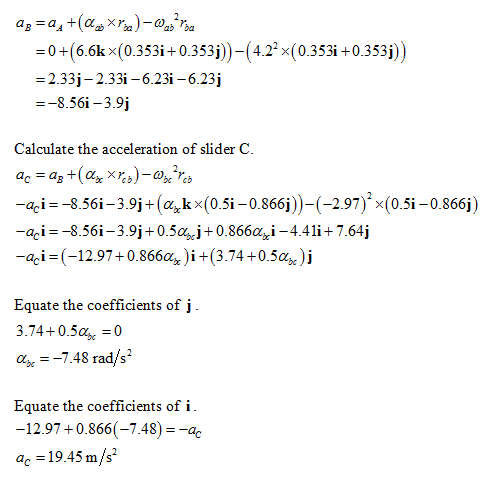

Bar AB has the angular motions shown. Suppose that WAD = 4.2 rad/s and Q AD...
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB...
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB = 6.6 rad/s2. (Figure 1) Part A Determine the velocity of the slider block C at this instant Express your answer to three significant figures and include the appropriate units. ? (vc. = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and...
both part pls Bar AB has the angular motions shown. Suppose that WAB-4.6 rad/s and ???-6.5...
both part pls
Bar AB has the angular motions shown. Suppose that WAB-4.6 rad/s and ???-6.5 rad/s2 . (Figure 1) Part A Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units (vo)ValueUnits Submit RequestAnswer Figure 1 of 1 Part B Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units 0.5 m AB...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s and a 6.5 rad/s. (Figure 1) Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units. HA Value Units (vc)= Request Answer Submit Part B Figure 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate...
i will leave a like Problem 16.116 At the given instant member AB has the angular...
i will leave a like
Problem 16.116 At the given instant member AB has the angular motions shown (Figure 1) Part A Determine the magnitude of the velocity of the slider block C at this instant Express your answer with the appropriate units. Figure 1 of 1 MA ? Value Units Submit Request Answer Part B Determine the direction of the velocity of the slider block Cat this instant up and to the right Pearson At the given instant member...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the velocity of block C, at the instant θ 45° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the left and negative value if the velocity is directed to the right. ucValue Units Submit Request Answer Part B Figure 1of 1 > Determine the angular velocity of link BC at the instant...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Part A Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. ? FA Value Units Figure 1 of 1 Submit Request Answer D Part B 2 m Determine the tension developed in cable AC. Express your answer to three significant figures and include the appropriate unite. 1 m 30° 2 m B HA...
Bar AB has an angular velocity ω AB = 6 rad/s Part A Determine the velocity of the slider block C at the instant shown. Express your answer to three significant figures and include the appropriate un...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
Item 2 If F 910 N, determine the tension developed in cables AB, AC, and AD....
Item 2 If F 910 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. HA ? Value Units FAB = Request Answer Submit Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. _q ? HA Value Units FAC = Request Answer Submit Figure 1 of...
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
Bar AB has the angular motions shown. Suppose that WAB = 5 rad/s and a AB = 6.6 rad/s2. (Figure 1) Part A Determine the velocity of the slider block C at this instant Express your answer to three significant figures and include the appropriate units. ? (vc. = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and...
both part pls
Bar AB has the angular motions shown. Suppose that WAB-4.6 rad/s and ???-6.5 rad/s2 . (Figure 1) Part A Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units (vo)ValueUnits Submit RequestAnswer Figure 1 of 1 Part B Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units 0.5 m AB...
Problem 16.106 Part A Member AB has the angular motions shown. Suppose that w 3.3 rad/s and a 6.5 rad/s. (Figure 1) Determine the velocity of the slider block C at this instant. Express your answer to three significant figures and include the appropriate units. HA Value Units (vc)= Request Answer Submit Part B Figure 1 of 1 Determine the acceleration of the slider block C at this instant. Express your answer to three significant figures and include the appropriate...
i will leave a like
Problem 16.116 At the given instant member AB has the angular motions shown (Figure 1) Part A Determine the magnitude of the velocity of the slider block C at this instant Express your answer with the appropriate units. Figure 1 of 1 MA ? Value Units Submit Request Answer Part B Determine the direction of the velocity of the slider block Cat this instant up and to the right Pearson At the given instant member...
The link AB has an angular velocity of 2.1 rad/s (Figure 1) Part A Determine the velocity of block C, at the instant θ 45° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the left and negative value if the velocity is directed to the right. ucValue Units Submit Request Answer Part B Figure 1of 1 > Determine the angular velocity of link BC at the instant...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Part A Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. ? FA Value Units Figure 1 of 1 Submit Request Answer D Part B 2 m Determine the tension developed in cable AC. Express your answer to three significant figures and include the appropriate unite. 1 m 30° 2 m B HA...
Bar AB has an angular velocity ω AB = 6 rad/s
Part A
Determine the velocity of the slider block C at the
instant shown.
Express your answer to three significant figures and include the
appropriate units. Enter positive value if the velocity is directed
to the left and negative value if the velocity is directed to the
right.
200 mm 500 mm θ = 45° 30°
200 mm 500 mm θ = 45° 30°
Item 2 If F 910 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. HA ? Value Units FAB = Request Answer Submit Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. _q ? HA Value Units FAC = Request Answer Submit Figure 1 of...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
Link AB is rotating at w AB = 5.8 rad/s. (Figure 1) Part A Determine the velocity of the block at the instant = 60°. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. 125 mm ? "! Å Value O 2 Units SB vc = Submit Request Answer WAB 300 mm Provide Feedback
