Question
solve with explanasion please

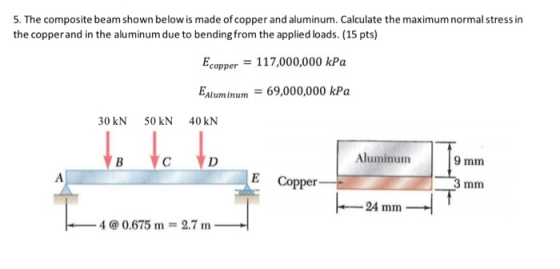

5. The composite beam shown below is made of copper and aluminum. Calculate the maximum normal stress in the copperand in the
0 0
Add a comment Improve this question Transcribed image text
Answer #1

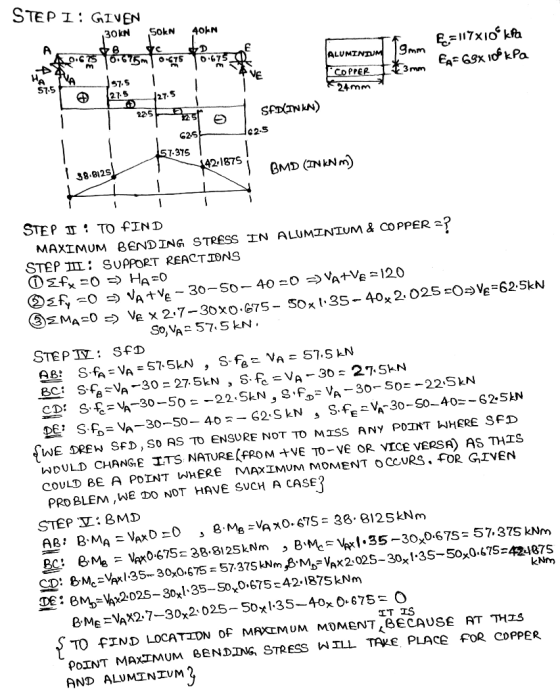

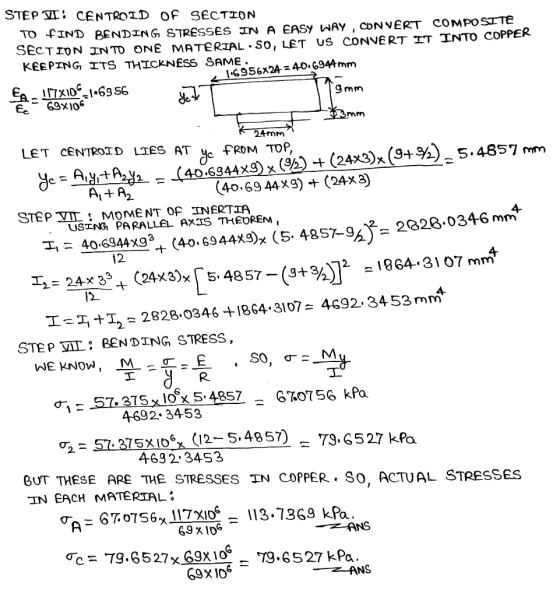

STEP I: GIVEN 30KN 50KN 40KN A poster tempore 9mm Ę=117x10ʻkra FA= 69x 10 kPa ALUMINIUM COPPER 24mm VE 3 mm 157.5 57.5 27.5 2STEP I: CENTROID OF SECTION TO FIND BENDING STRESSES IN A EASY WAY CONVERT COMPOSTTE SECTION IN TO ONE MATERIAL - SO, LET US

Add a comment
Know the answer?
Add Answer to:
solve with explanasion please 5. The composite beam shown below is made of copper and aluminum....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
