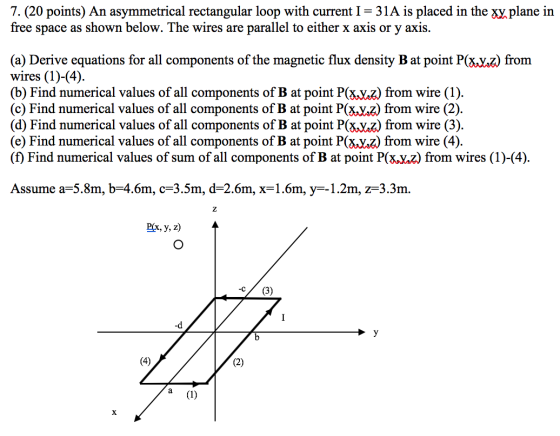

7. (20 points) An asymmetrical rectangular loop with current I = 31A is placed in the...
Rectangular current loop A current I flows in a square current loop of wire placed on...
Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. (b) For za, b, what does your expression simplify to? (c) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop radius.
Two long, straight, parallel current-carrying wires are shown below. The wires are parallel to the (the...
Two long, straight, parallel current-carrying wires are shown below. The wires are parallel to the (the +z-axis points out of the page). The current 3.2 A is flowing in the +2-direction (out of the page), while the current 12-3.2 A is flowing in the z-direction (into the page). The wire abov he origin passes through y- +3.0 cm, the wire below the origin passes through y- -3.0 cm, P is atx +4.0 cm. a) Find all thrce components of the...
3. Rectangular current loop A current I flows in a square current loop of wire placed...
3. Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. b) For z a, b, what does your expression simplify to? (e) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop...

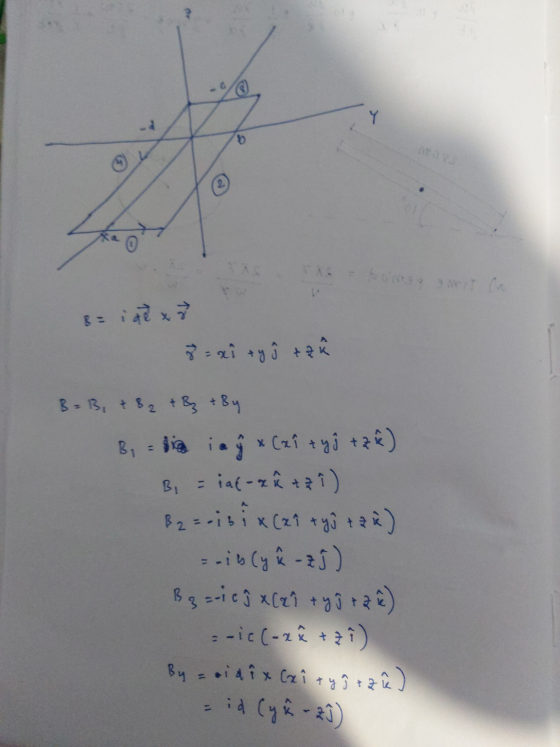

A rectangular loop with current I = 36A is placed in the xy plane in free...
A rectangular loop with current I = 36A is placed in the xy
plane in free space as shown below. Find the z-component of the
magnetic flux density Bzaz at point P(0, 0, z). The four corners of
the rectangular loop are (a, -d, 0), (a, b, 0), (-c, b, 0), (-c,
-d, 0). Assume a=5m, b=3m, c=3m, d=2m, z=9m.
5. (20 points) A rectangular loop with current I 36A is placed in the xy plane in free space as...
A long, straight wire carries a current of 1.7 A in the +z direction and lies...
A long, straight wire carries a current of 1.7 A in the +z direction and lies along the line x = +3.0 cm, y = 0. A second such wire carries a current of 1.7 A in the +z direction and lies along the line x = -3.0 cm, y = 0. Find (a) the magnetic field at a point P on the y axis at y = 6.0 cm (-9.1 x 10-6 T i) and (b) the force between...
3. A circular loop of radius a carrying current I, is located in the x-y plane...
3. A circular loop of radius a carrying current I, is located in the x-y plane as shown in the figure. In ent I, in a direction parallel with the z-axis is located addition, an infinitely long wire carrying curr a. Determine the equation for H at P (0,0,h) b. Evaluate H for a-10cm, yo 25cm, h-12cm, 30A and b 15A C. What is B at the same point with the same variable values? Assume -8uo
What's the correct answer for Part B magnitude? I keep getting it wrong. Two long, parallel...
What's the correct answer for Part B magnitude? I
keep getting it wrong.
Two long, parallel wires carry currents of
I1 = 3.22 A and I2 = 4.85 A
in the direction indicated in the figure below. (Choose the line
running from wire 1 to wire 2 as the positive x-axis and
the line running upward from wire 1 as the positive
y-axis.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying a current I (in direction), at a point P a distance r from the wire. Do this for both a finite wire (21 <2<z2), and an infinite wire (-0<z< too). (6) Use the result of part (a) to evaluate the net magnetic field of the wires shown at point P (0,0,2). [15] z P (0,0,2) 22 di 0 B (0,2,0) tec у P(x,y) A...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d apart along the y-axis. Write an expression for the magnetic field B, produced by each wire, at point P, which is equidistant from the wires and a distance R from the plane which contains them. i. ii. 2u, Id Show that the net magnetic field at point P is given by B=- -î . T(4R+d?)
Please answer all parts. Two long, parallel wires carry currents of 1 - 2.76 A and...
Please answer all parts.
Two long, parallel wires carry currents of 1 - 2.76 A and I2 = 4.70 A in the direction indicated in the figure below. (Choose the line running from wire 1 to wire 2 as the positive x-axis and the line running upward from wire 1 as the positive y-axis.) d 12 -d- (a) Find the magnitude and direction of the magnetic field at a point midway between the wires (d = 20.0 cm). magnitude UT...
Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. (b) For za, b, what does your expression simplify to? (c) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop radius.
Two long, straight, parallel current-carrying wires are shown below. The wires are parallel to the (the +z-axis points out of the page). The current 3.2 A is flowing in the +2-direction (out of the page), while the current 12-3.2 A is flowing in the z-direction (into the page). The wire abov he origin passes through y- +3.0 cm, the wire below the origin passes through y- -3.0 cm, P is atx +4.0 cm. a) Find all thrce components of the...
3. Rectangular current loop A current I flows in a square current loop of wire placed on the ry plane and centered about the origin. The lengths of the two sides are a and b (a) Find the magnetic field at any location (0,0, z) on the z-axis. b) For z a, b, what does your expression simplify to? (e) Compare your answer to (b) with the on-axis field for a circular loop at distances much greater than the loop...
A rectangular loop with current I = 36A is placed in the xy
plane in free space as shown below. Find the z-component of the
magnetic flux density Bzaz at point P(0, 0, z). The four corners of
the rectangular loop are (a, -d, 0), (a, b, 0), (-c, b, 0), (-c,
-d, 0). Assume a=5m, b=3m, c=3m, d=2m, z=9m.
5. (20 points) A rectangular loop with current I 36A is placed in the xy plane in free space as...
3. A circular loop of radius a carrying current I, is located in the x-y plane as shown in the figure. In ent I, in a direction parallel with the z-axis is located addition, an infinitely long wire carrying curr a. Determine the equation for H at P (0,0,h) b. Evaluate H for a-10cm, yo 25cm, h-12cm, 30A and b 15A C. What is B at the same point with the same variable values? Assume -8uo
What's the correct answer for Part B magnitude? I
keep getting it wrong.
Two long, parallel wires carry currents of
I1 = 3.22 A and I2 = 4.85 A
in the direction indicated in the figure below. (Choose the line
running from wire 1 to wire 2 as the positive x-axis and
the line running upward from wire 1 as the positive
y-axis.)
(a) Find the magnitude and direction of the magnetic field at a
point midway between the wires...
3. (a) Use Biot-Savart Law to find the magnetic field of wire, along the z-axis, carrying a current I (in direction), at a point P a distance r from the wire. Do this for both a finite wire (21 <2<z2), and an infinite wire (-0<z< too). (6) Use the result of part (a) to evaluate the net magnetic field of the wires shown at point P (0,0,2). [15] z P (0,0,2) 22 di 0 B (0,2,0) tec у P(x,y) A...
A. Two long wires are carrying equal, but opposite-direction current I are located a distance d apart along the y-axis. Write an expression for the magnetic field B, produced by each wire, at point P, which is equidistant from the wires and a distance R from the plane which contains them. i. ii. 2u, Id Show that the net magnetic field at point P is given by B=- -î . T(4R+d?)
Please answer all parts.
Two long, parallel wires carry currents of 1 - 2.76 A and I2 = 4.70 A in the direction indicated in the figure below. (Choose the line running from wire 1 to wire 2 as the positive x-axis and the line running upward from wire 1 as the positive y-axis.) d 12 -d- (a) Find the magnitude and direction of the magnetic field at a point midway between the wires (d = 20.0 cm). magnitude UT...
