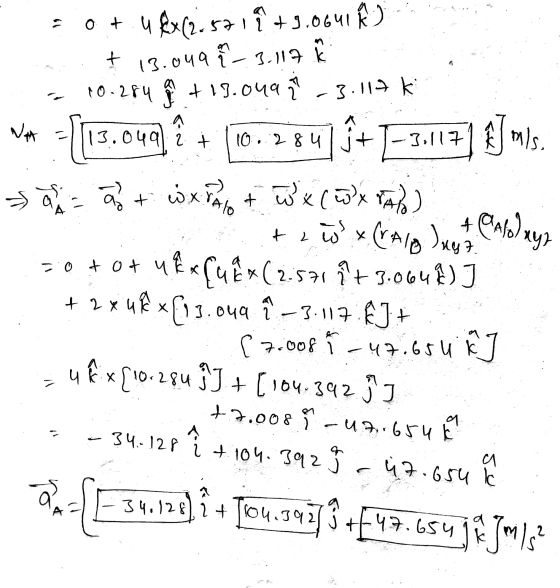

![= otu &x (2.571 +9.0641 & + 13.049 - 3.117 k 10.284 ſ +19.04974-3.117 k 10.284] + -3.117 3:117) IT NA ♡ 13.0491.2 mis, + W X](http://img.homeworklib.com/questions/a5bcb420-ee0c-11ea-84dd-9306fe9a7d55.png?x-oss-process=image/resize,w_560)
Add Answer to:
The hollow tube rotates with an 1 = 4 rad/s and co2 = 3 rad/s. The...
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at poi...
Hello I need the answer ASAP
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at point B at this instant. Taking point A as the reference (2) Calculate the acceleration at point B at this instant. Taking point A as the (3) Calculate the velocity at point C at this instant. Taking point B as the reference point. reference point point (4) Calculate the acceleration at point C at this instant....
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise...
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
The device shown rotates about the fixed z-axis with angular velocity w = 18 rad/s and...
The device shown rotates about the fixed z-axis with angular velocity w = 18 rad/s and angular acceleration a = 36 rad/s2 in the directions indicated. Determine the instantaneous velocity and acceleration of point B. B 50° 50° o α OA = 380 mm, AB = 650 mm Answers: Va = + + k) m/s ar = + k) m/s2
An amusement park ride has a platform that rotates at 1.5 rad/s (k). The car C...
An amusement park ride has a platform that rotates at
1.5 rad/s (k). The car C is mounted to the platform and can rotate.
The car rotates at 2 rad/s (k) with respect to the platform. The
center of the car is 3 meters from the center of the platform O.
The rider B is 0.75 meters from the center of the car. Find the
Velocity of B and the Acceleration of B.
An amusement parkride has a platform that...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? :...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a...
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a constant angular rate 0 = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos ) m. If both collars have a mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars...
Part A Constants If WAB -4 rad/s, aAB 2 rad/s2, wc 3 rad/s, and apc-7rad/s2 ,...
Part A Constants If WAB -4 rad/s, aAB 2 rad/s2, wc 3 rad/s, and apc-7rad/s2 , what is the acceleration of point C where the scoop of the excavator is attached? (Figure 1) Enter the r and y components of the acceleration separated by a comma vec ac ac y m/s Request Answen Submit Next > Provide Feedback 1 of 1 Figure AB CLBC 5.5 ITm 1.6 m 2.3 m
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest...
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 0 = 1.1 rad/s2. At what time t will the 0.57-kg particle p slip relative to the tube? The coefficient of static friction between the particle and the tube is a = 0.69 0.83 m 53 w Answer: ta S the tolerance is +/-2%...
1. If straight-arm OA rotates with d= - 2 rad/s and Ö = - 3 rad/s?...
1. If straight-arm OA rotates with d= - 2 rad/s and Ö = - 3 rad/s? determine the magnitude of acceleration of the small 4 pound ball P. The black rectangle is fixed. Find the value when = 30 degrees and H = 3 feet. Solve it ASSUMING P remains in contact with the arm and rectangle. Gravity points toward the bottom of the page. The coefficients of friction on all surfaces are 0.3 and 0.4, one is kinetic the...
Part A Water leaves the impeller of the centrifugal pump with a velocity of 29 m/s and acceleration of 35 m/s2, both measured relative to the mpeller along the blade line AB. The impeller rotates wit...
Part A Water leaves the impeller of the centrifugal pump with a velocity of 29 m/s and acceleration of 35 m/s2, both measured relative to the mpeller along the blade line AB. The impeller rotates with a constant angular velocity of w 15 rad/s.Suppose that r 0.3 m Figure 1) Determine the z and y components of the velocity of a water particle at A as it leaves the impeller at the instant shown using scalar notation. Express your answers...
Hello I need the answer ASAP
2. The driving link AB rotates at 00A 6 rad/s and αΑΒ-19 rad/S2 (1) Calculate the velocity at point B at this instant. Taking point A as the reference (2) Calculate the acceleration at point B at this instant. Taking point A as the (3) Calculate the velocity at point C at this instant. Taking point B as the reference point. reference point point (4) Calculate the acceleration at point C at this instant....
1. The bar AB rotates at constant 10 rad/s (a = 0 rad/s?) in the counterclockwise direction Determine: B D 0 1 1 m -450 S C 1 m 1 m Write the coordinates of all joints and COM. Assume the COM is in the center of each link: A B D С GI G2 G3 X у Write the equations for velocities and solve the system of equations (25 pts): a) Angular velocity of link BD: b) Angular velocity...
The device shown rotates about the fixed z-axis with angular velocity w = 18 rad/s and angular acceleration a = 36 rad/s2 in the directions indicated. Determine the instantaneous velocity and acceleration of point B. B 50° 50° o α OA = 380 mm, AB = 650 mm Answers: Va = + + k) m/s ar = + k) m/s2
An amusement park ride has a platform that rotates at
1.5 rad/s (k). The car C is mounted to the platform and can rotate.
The car rotates at 2 rad/s (k) with respect to the platform. The
center of the car is 3 meters from the center of the platform O.
The rider B is 0.75 meters from the center of the car. Find the
Velocity of B and the Acceleration of B.
An amusement parkride has a platform that...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
r = 16 cos e 6 = 4 rad/s B Rod OA rotates counterclockwise at a constant angular rate 0 = 4 rad/s. The double collar B is pin-connected together such that one collar slides over the rotating rod and the other collar slides over the circular rod described by the equation r = (1.6 cos ) m. If both collars have a mass of 0.5 kg, determine the force which the circular rod exerts on one of the collars...
Part A Constants If WAB -4 rad/s, aAB 2 rad/s2, wc 3 rad/s, and apc-7rad/s2 , what is the acceleration of point C where the scoop of the excavator is attached? (Figure 1) Enter the r and y components of the acceleration separated by a comma vec ac ac y m/s Request Answen Submit Next > Provide Feedback 1 of 1 Figure AB CLBC 5.5 ITm 1.6 m 2.3 m
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 0 = 1.1 rad/s2. At what time t will the 0.57-kg particle p slip relative to the tube? The coefficient of static friction between the particle and the tube is a = 0.69 0.83 m 53 w Answer: ta S the tolerance is +/-2%...
1. If straight-arm OA rotates with d= - 2 rad/s and Ö = - 3 rad/s? determine the magnitude of acceleration of the small 4 pound ball P. The black rectangle is fixed. Find the value when = 30 degrees and H = 3 feet. Solve it ASSUMING P remains in contact with the arm and rectangle. Gravity points toward the bottom of the page. The coefficients of friction on all surfaces are 0.3 and 0.4, one is kinetic the...
Part A Water leaves the impeller of the centrifugal pump with a velocity of 29 m/s and acceleration of 35 m/s2, both measured relative to the mpeller along the blade line AB. The impeller rotates with a constant angular velocity of w 15 rad/s.Suppose that r 0.3 m Figure 1) Determine the z and y components of the velocity of a water particle at A as it leaves the impeller at the instant shown using scalar notation. Express your answers...
