Homework Answers

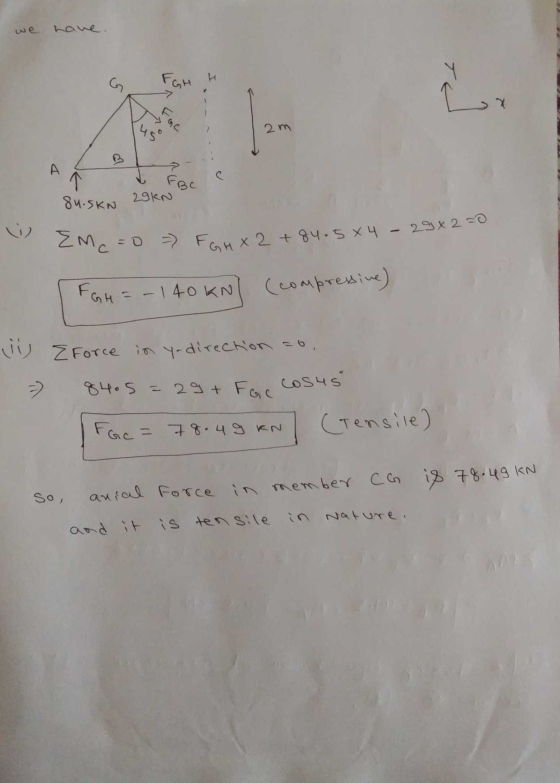

![we have. FGH H ب) 45 779 Fac 2m A C C FBC 29KN 84.5KN EMC = So » FGHX2 + 84.5 x4 - 29*2=0 FGH = -140 kN] (compressive) 1 ران](http://img.homeworklib.com/questions/a508e5f0-ee84-11ea-a692-89bb7b0aa6f2.png?x-oss-process=image/resize,w_560)
Add Answer to:

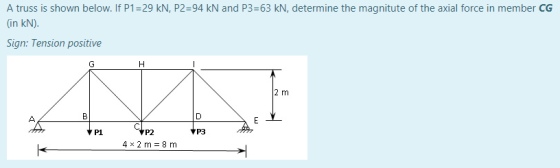

A truss is shown below. If P1=29 KN, P2=94 kN and P3=63 kN, determine the magnitute...
A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute...

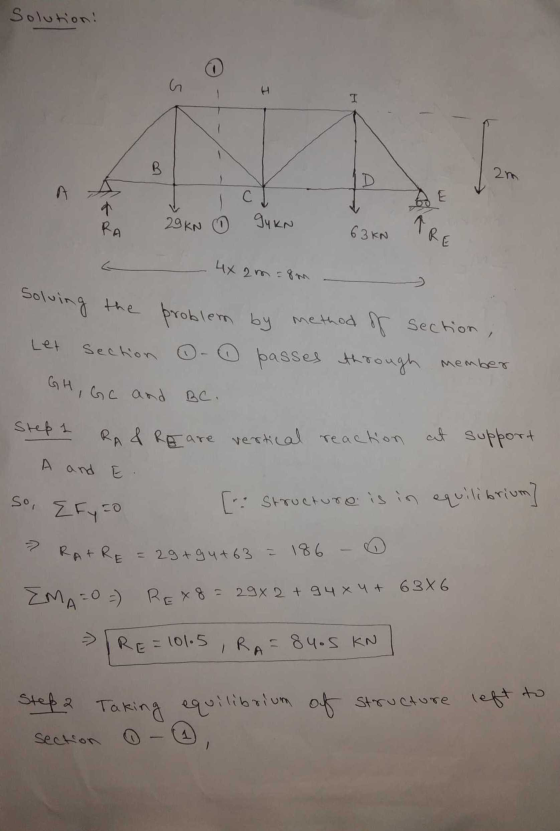

A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute of the axial force in member BC (in kN). Sign: Tension positive G Н. 2 m A B D E VP1 VP3 VP2 4 x 2 m = 8 m
A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute...
A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute of the axial force in member GH (in kN). Sign: Tension positive H 2 m A B D P1 VP3 VP2 4x2 m = 8 m
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3...
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3 = 95 N, and if d = 8 m, calculate the force on member FC (positive for compression, negative for tension). For the truss shown below, if P1 = 66 N. P2 = 69 N and P3 = 76 N, and for d = 6 m, calculate the force in member FB. (Use positive numbers for compression forces, and negative numbers for tensile forces)...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
For the truss shown below, if P1 58 N, P2 60 N, and P3 58 N,...
For the truss shown below, if P1 58 N, P2 60 N, and P3 58 N, and if d-4, calculate the force on member FC (positive for compression, negative for tension). P2 P1 P3
QUESTION 7 In the truss shown, all members are pin-ended. Determine the axial force in member...
QUESTION 7 In the truss shown, all members are pin-ended. Determine the axial force in member BC. Provide your answer in the space below. Given: a 13 m, b-5 m, P1 18 kN, P2 16 kN, P3-16 kN In your answer show exactly one decimal place and assume that tension is positive and compression is negative
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 m
Find the force in member BC, BE, and EF of the truss and state if the members are in Tension or Compression, given : P1 = 80 kN, P2=65 kN, P3=95 kN, L1=4 m, L2=6 mScreenshot 2021-02-24 162040.png
As shown, a truss is loaded by the forces P1 = 490 lb and P2 =...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
Determine the force in member CL (in kN) of the truss. Express a tensile force as...
Determine the force in member CL (in kN) of the truss. Express a tensile force as positive, and a compressive force as negative. O out o P1 = 86 kN, P2 = 108 kN, P3 = 53 kN, P4 = 53 kN. Note: All the angles in the diagram are either 45° or 90°. P2 E P1 K н A. м P4 P3
P1 4) Determine the force in each member of the truss and state if the members...
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute of the axial force in member BC (in kN). Sign: Tension positive G Н. 2 m A B D E VP1 VP3 VP2 4 x 2 m = 8 m
A truss is shown below. If P1=29 kN, P2=94 kN and P3=63 kN, determine the magnitute of the axial force in member GH (in kN). Sign: Tension positive H 2 m A B D P1 VP3 VP2 4x2 m = 8 m
For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3 = 95 N, and if d = 8 m, calculate the force on member FC (positive for compression, negative for tension). For the truss shown below, if P1 = 66 N. P2 = 69 N and P3 = 76 N, and for d = 6 m, calculate the force in member FB. (Use positive numbers for compression forces, and negative numbers for tensile forces)...
QUESTION 2 For the below loaded truss, P1-20 kN, P2 30 kN, P3-40 kN. 3 m B 12 m--2 m--2 m--2 m--2 m-1-2 m- P Choose the best answer for the force in member KC in kN if the vertical reaction Gy 33.33 kN. State d the member is in tension (T) or compression (C) 12.67 (C) a.67 (C) 6.6 (D 12.67 ( For the below loaded truss, P1-20 kN, P2 30 KN, P3-40 kN. H 3 m D F...
For the truss shown below, if P1 58 N, P2 60 N, and P3 58 N, and if d-4, calculate the force on member FC (positive for compression, negative for tension). P2 P1 P3
QUESTION 7 In the truss shown, all members are pin-ended. Determine the axial force in member BC. Provide your answer in the space below. Given: a 13 m, b-5 m, P1 18 kN, P2 16 kN, P3-16 kN In your answer show exactly one decimal place and assume that tension is positive and compression is negative
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
Determine the force in member CL (in kN) of the truss. Express a tensile force as positive, and a compressive force as negative. O out o P1 = 86 kN, P2 = 108 kN, P3 = 53 kN, P4 = 53 kN. Note: All the angles in the diagram are either 45° or 90°. P2 E P1 K н A. м P4 P3
P1 4) Determine the force in each member of the truss and state if the members are in tension or compression. Set P, = 45 kN, P2 = 30 kN. B 1.5 m P2 D 2 m
