Homework Answers
Abar of mass m5kg is held as shown between four disks each of mass m2 kg...

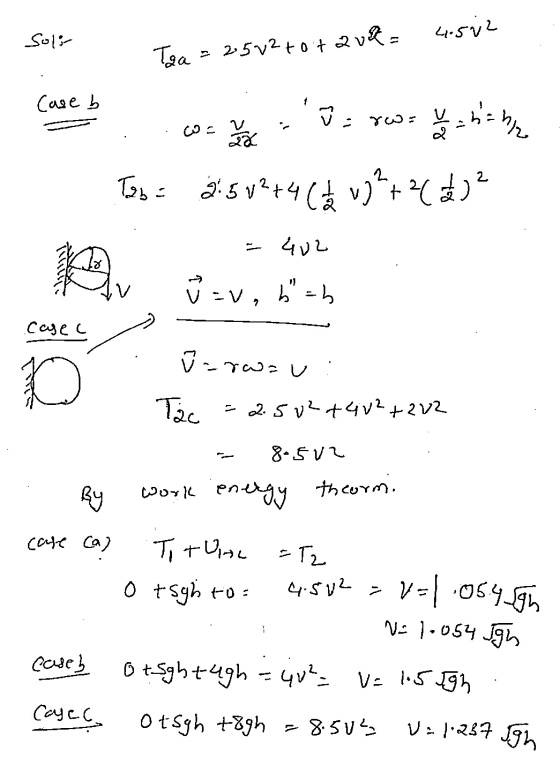

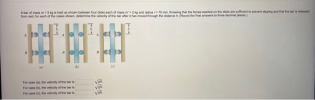

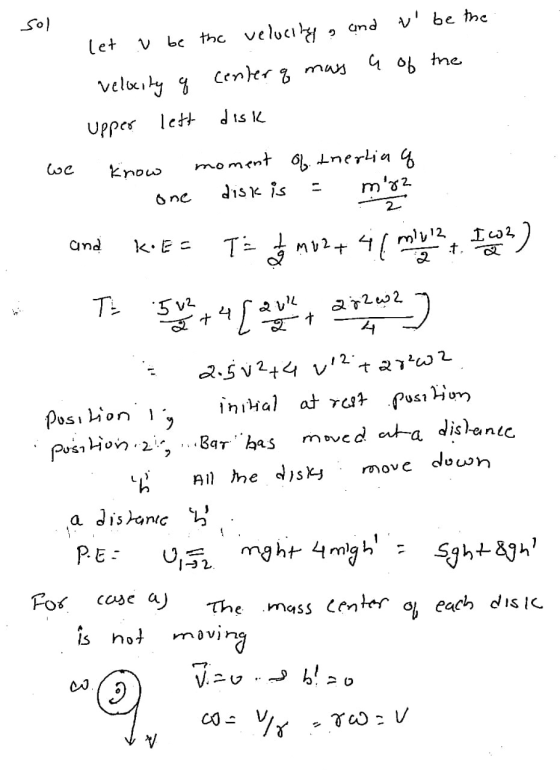

Abar of mass m5kg is held as shown between four disks each of mass m2 kg and radius re75 mm. Knowing that the forces cortod on the disks are sufficient to prevent slipping and that the bar is released from rest, for each of the cases shown, determine the velocity of the bar after it has moved through the distance. Round the final answers to three decimal places.) Forcase (al, the velocity of the bar is Forcase (b), the velocity...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender b...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine the following immediately after cord AC is cut. a) Draw FBD of the bar. (5 points) b) Write equations of motion and kinematic relations. Identify how many equations and how many unknowns. (10 points) c) Determine the tension in BD and the angular acceleration of the bar immediately after AC is cut. (10 points) À 3 m-
2. In the mechanism shown, each of the two wheels has a mass of 30 kg...
2. In the mechanism shown, each of the two wheels has a mass of 30 kg and a centroidal radius of gyration of 100 mm. Each link OB has a mass of 10 kg and may be treated as a slender bar. The 7 - kg collar at B slides on the fixed vertical shaft with negligible friction. The spring has a stiffness k = 30 kN/m and is contacted by the bottom of the collar when the links reach...
11.6) A slender bar, 3, with a uniformly distributed mass m is attached at each end...
11.6) A slender bar, 3, with a uniformly distributed mass m is attached at each end to light rollers which move in a smooth fixed guide, 1, shaped as shown in the figure. Assuming gravity acts vertically downward and the bar is released from rest in the configuration shown, what is the angular acceleration of the bar and the force at each roller at the instant the bar is released? For numerical values, use m = 18 kg and r...
2. In the mechanism shown, each of the two wheels has a mass of 30 kg...
2. In the mechanism shown, each of the two wheels has a mass of 30 kg and a centroidal radius of gyration of 100 mm. Each link OB has a mass of 10 kg and may be treated as a slender bar. The 7 - kg collar at B slides on the fixed vertical shaft with negligible friction. The spring has a stiffness k = 30 kN/m and is contacted by the bottom of the collar when the links reach...
Two identical uniform disks 1 and 2 each of mass knowns and compare with the number of equations ...
Two identical uniform disks 1 and 2 each of mass knowns and compare with the number of equations M and radius R are connected to a slender bar 3 obtained of mass m and length 2l by two identical masslessc. Use the equations of b) to find the ODE gov rods of length r. All connections (pivots) are as- erning angle θ. Can you find a first-integral from sumed frictionless. The assembled system is set on this ODE? a horizontal...
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen...
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen the 4 kg rectangular plate, as shown, along all its four sides. Determine a) The total length of the bar b) The total mass of the assembly c) Its center of mass location, G. d) determine the moment of inertia e) and radius of gyration about G. 300mm A 300mm + 400mm Prob. 4 The stiffened plate described in Prob 3 above, and supported...
A 10 kg bar shown is currently moving with a center of mass velocity of 1...
A 10 kg bar shown is currently moving with a center of mass
velocity of 1 m/s to the right. What is the angular velocity of the
bar at this instant in rad/s?
QUESTION 1 A 10 kg bar shown is currently moving with a center of mass velocity of 1 m/s to the right. What is the angular velocity of the bar at this instant in rad's? (gravity is acting in the vertical plane) 0.75 m V = 1...
Problem 3. A crate of mass 80 kg is held in the position shown. Immediately after the man acciden...
Problem 3. A crate of mass 80 kg is held in the position shown. Immediately after the man accidentally drops the right end of the crate, assuming that the box does not slip at point E, determine (a) the angular acceleration of the crate, (b) the reaction at point E. 0.6 m- 0.6 m 0.5 m 0.85m→
Problem 3. A crate of mass 80 kg is held in the position shown. Immediately after the man accidentally drops the right end...
Abar of mass m5kg is held as shown between four disks each of mass m2 kg and radius re75 mm. Knowing that the forces cortod on the disks are sufficient to prevent slipping and that the bar is released from rest, for each of the cases shown, determine the velocity of the bar after it has moved through the distance. Round the final answers to three decimal places.) Forcase (al, the velocity of the bar is Forcase (b), the velocity...
A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender bars welded together. End A is constrained to move in the slotted frictionless groove guided by the light frictionless roller as shown in Figure 3. The lower end of the T is released from rest in the vertical plane in the position shown, and the dimension /= 1 m. (i) Determine the location...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine the following immediately after cord AC is cut. a) Draw FBD of the bar. (5 points) b) Write equations of motion and kinematic relations. Identify how many equations and how many unknowns. (10 points) c) Determine the tension in BD and the angular acceleration of the bar immediately after AC is cut. (10 points) À 3 m-
2. In the mechanism shown, each of the two wheels has a mass of 30 kg and a centroidal radius of gyration of 100 mm. Each link OB has a mass of 10 kg and may be treated as a slender bar. The 7 - kg collar at B slides on the fixed vertical shaft with negligible friction. The spring has a stiffness k = 30 kN/m and is contacted by the bottom of the collar when the links reach...
11.6) A slender bar, 3, with a uniformly distributed mass m is attached at each end to light rollers which move in a smooth fixed guide, 1, shaped as shown in the figure. Assuming gravity acts vertically downward and the bar is released from rest in the configuration shown, what is the angular acceleration of the bar and the force at each roller at the instant the bar is released? For numerical values, use m = 18 kg and r...
2. In the mechanism shown, each of the two wheels has a mass of 30 kg and a centroidal radius of gyration of 100 mm. Each link OB has a mass of 10 kg and may be treated as a slender bar. The 7 - kg collar at B slides on the fixed vertical shaft with negligible friction. The spring has a stiffness k = 30 kN/m and is contacted by the bottom of the collar when the links reach...
Two identical uniform disks 1 and 2 each of mass knowns and compare with the number of equations M and radius R are connected to a slender bar 3 obtained of mass m and length 2l by two identical masslessc. Use the equations of b) to find the ODE gov rods of length r. All connections (pivots) are as- erning angle θ. Can you find a first-integral from sumed frictionless. The assembled system is set on this ODE? a horizontal...
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen the 4 kg rectangular plate, as shown, along all its four sides. Determine a) The total length of the bar b) The total mass of the assembly c) Its center of mass location, G. d) determine the moment of inertia e) and radius of gyration about G. 300mm A 300mm + 400mm Prob. 4 The stiffened plate described in Prob 3 above, and supported...
A 10 kg bar shown is currently moving with a center of mass
velocity of 1 m/s to the right. What is the angular velocity of the
bar at this instant in rad/s?
QUESTION 1 A 10 kg bar shown is currently moving with a center of mass velocity of 1 m/s to the right. What is the angular velocity of the bar at this instant in rad's? (gravity is acting in the vertical plane) 0.75 m V = 1...
Problem 3. A crate of mass 80 kg is held in the position shown. Immediately after the man accidentally drops the right end of the crate, assuming that the box does not slip at point E, determine (a) the angular acceleration of the crate, (b) the reaction at point E. 0.6 m- 0.6 m 0.5 m 0.85m→
Problem 3. A crate of mass 80 kg is held in the position shown. Immediately after the man accidentally drops the right end...
