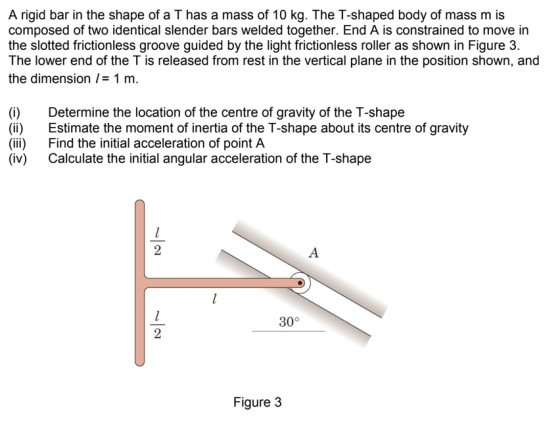

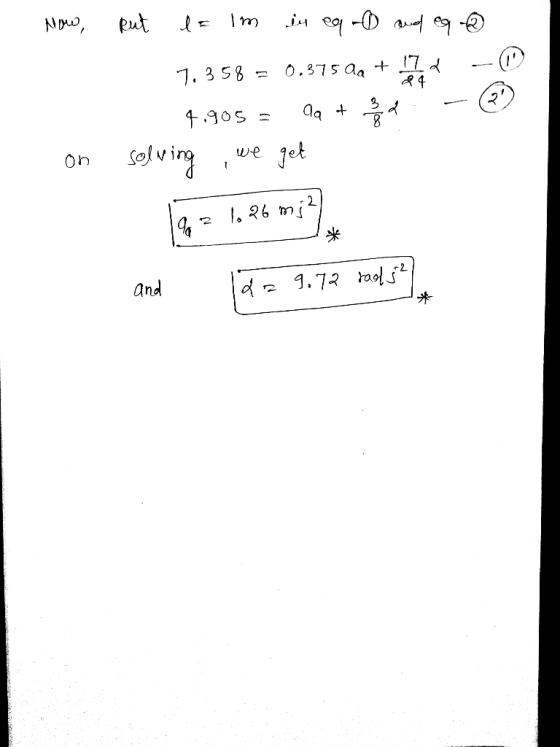

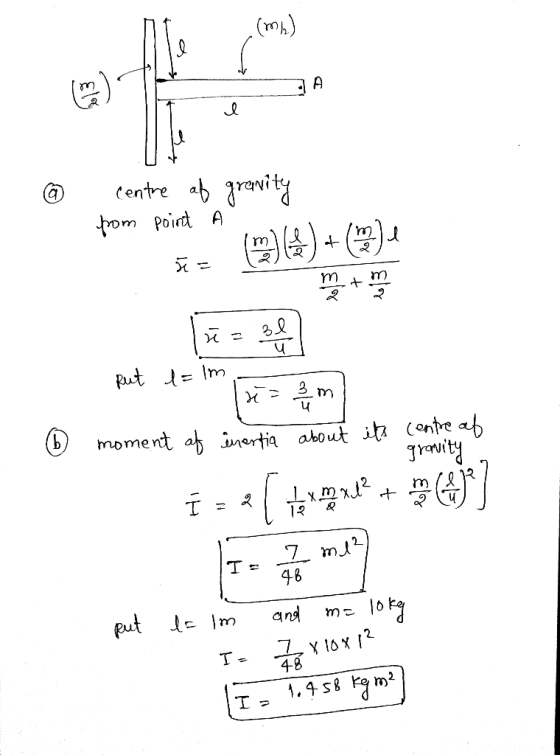

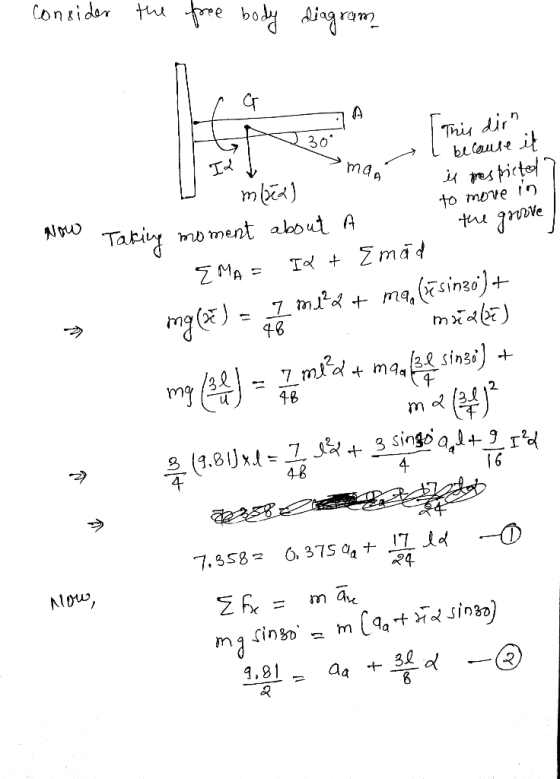

A rigid bar in the shape of a T has a mass of 10 kg. The T-shaped body of mass m is composed of two identical slender b...
