Question

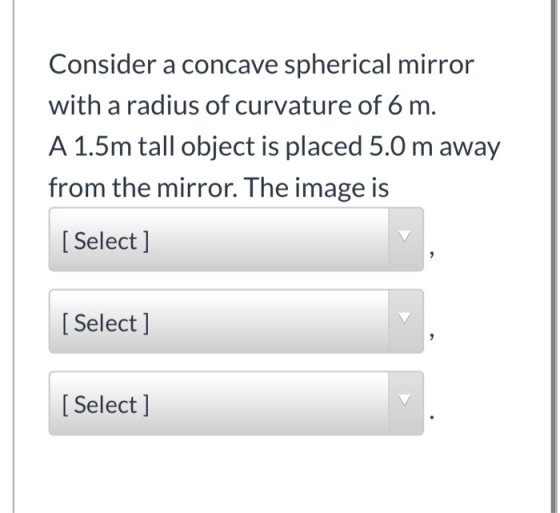

Consider a concave spherical mirror with a radius of curvature of 6 m. A 1.5m tall object is placed 5.0 m away from the mirro

The two options in the first box are real or virtual, the second box's two options are larger or smaller, the third box's two options are upright or inverted.
science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

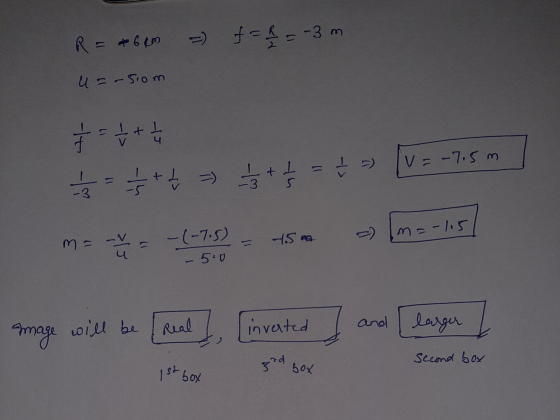

R = +6CM = = -3 m u=-50m ++++ 1/2 = 1 / 3 + + = 1/3 + b I = =) V=-7.5m m = -N m =-115 -(-7.5) 5.0 45 u Real mage will be [inv

0 0
