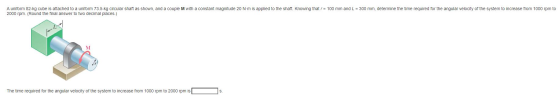

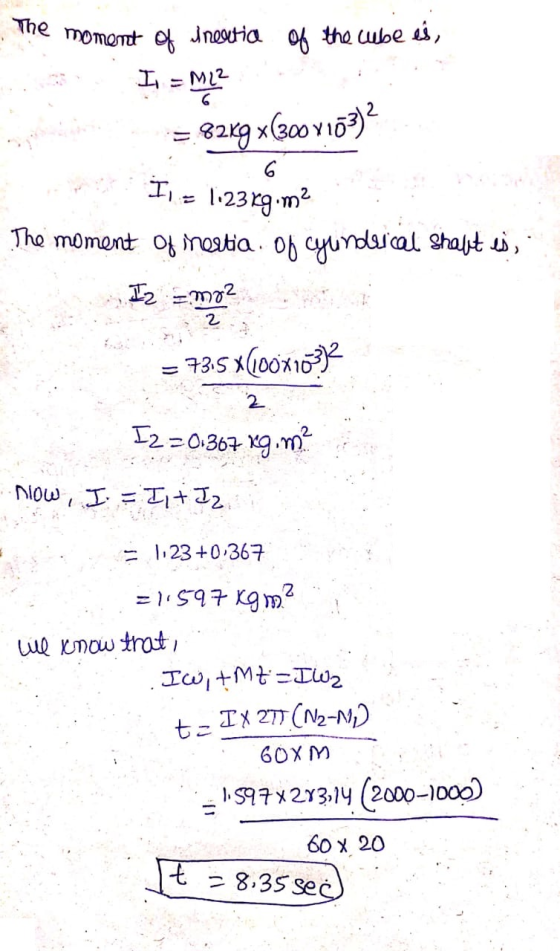

A uniform 82 kg cube is attached to a uniform 73.5-kg circular shaft as shown, and...
Each of the gears A and B has a mass of 1.6 kg and a radius...
Each of the gears A and B has a mass of 1.6 kg and a radius of gyration of 60 mm, while gear C has a mass of 12 kg and a radius of gyration of 150 mm. A couple M of constant magnitude 10 N·m is applied to gear C. Determine the number of revolutions of gear C required for its angular velocity to increase from 100 to 450 rpm and the corresponding tangential force acting on gear A....
Each of the gears A and B has a mass of 3.2 kg and a radius...
Each of the gears A and B has a mass of 3.2 kg and a radius of gyration of 60 mm, while gear C has a mass of 12 kg and a radius of gyration of 150 mm. A couple M of constant magnitude 10 N*m is applied to gear B. Determine the number of revolutions of gear C required for its angular velocity to increase from 100 to 450 rpm and the corresponding tangential force acting on gear A....
N 3321-006: Dy X s Connect х C The 30-kg Uniform Disk A And T X...
N 3321-006: Dy X s Connect х C The 30-kg Uniform Disk A And T X (25,697 unread) - jasonbeckford X + ezto.mheducation.com/ext/map/index.html?_con=con&external_browser=0&launchUrl=https%253A%252F%252Flms.mnheducation.com%252Fmghmiddleware%252Fmheproducts%252Fims Saved Help Save The 38-kg uniform disk A and the bar BC are at rest and the 9 kg uniform disk D has an initial angular velocity wh of magnitude 440 rpm when the compressed spring is released and disk D contacts disk A. The system rotates freely about the vertical spindle BE. After a period of...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a d...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
Fig. P16.135 and P16.136 150 rad/scounterclockwise, determine (a) the couple M, (b) the components of the...
Fig. P16.135 and P16.136 150 rad/scounterclockwise, determine (a) the couple M, (b) the components of the force exerted at C on rod BC. 16.137 In the engine system shown 1 = 250 mm and b = 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston P. During a test of the system, crank AB is made to rotate with a constant angular velocity of 600 rpm clockwise...
For the engine system of Prob. 15.C3 of Chap. 15, the masses of piston P and the connecting rod B...
For the engine system of Prob. 15.C3 of Chap. 15, the masses of piston P and the connecting rod BD are 2.5 kg and 3 kg, respectively. Knowing that during a test of the system no force is applied to the face of the piston, use computational software to calculate and plot the horizontal and vertical components of the dynamic reactions exerted on the connecting rod at B and D for values of from 0 to 180° Prob. 15.C3 In...
A and B are smooth pin connections. BG is a uniform circular disk of mass 5 kg. AB is a uniform s...
A and B are smooth pin connections. BG is a uniform circular
disk of mass 5 kg. AB is a uniform slender rod of mass 2 kg and
length 750 mm. At the instant shown, 2 kg slider A is moving to the
right at .5 m/s and a 35 N force is being applied at pin A.
Find: The angular accelerations of link AB and disk BG.
6- 0.5 " 尸パ. 6 D mm
6- 0.5 " 尸パ. 6...
The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant...
The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of Ó = 10 rad/s and accelerates at a rate of Ö = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity and acceleration of point...
(6 Points) - Problem 5: Each of the gears A and B has a mass of...
(6 Points) - Problem 5: Each of the gears A and B has a mass of 10 kg and a radius of gyration of 190 mm, while gear C has a mass of 2.5 kg and a radius of gyration of 80 mm. Assuming that the 6 N-m couple is applied to gear B. determine (a) the number of revolutions of gear C required for its angular velocity to increase from 450 rpm to 1800 rpm, (b) the corresponding tangential...
The uniform 14-kg plate is welded to the vertical shaft, which is supported by bearings A and B. Calculate the magnitude of the force supported by bearing B during application of the 110-N-m couple t...
The uniform 14-kg plate is welded to the vertical shaft, which is supported by bearings A and B. Calculate the magnitude of the force supported by bearing B during application of the 110-N-m couple to the shaft. The cable from C to D prevents the plate and shaft from turning and the weight of the assembly is carried entirely by bearing 110 Nm A 150 mm 70 mm 580 mm 180 mm 330 mm Answer: B kN
The uniform 14-kg...
Each of the gears A and B has a mass of 1.6 kg and a radius of gyration of 60 mm, while gear C has a mass of 12 kg and a radius of gyration of 150 mm. A couple M of constant magnitude 10 N·m is applied to gear C. Determine the number of revolutions of gear C required for its angular velocity to increase from 100 to 450 rpm and the corresponding tangential force acting on gear A....
Each of the gears A and B has a mass of 3.2 kg and a radius of gyration of 60 mm, while gear C has a mass of 12 kg and a radius of gyration of 150 mm. A couple M of constant magnitude 10 N*m is applied to gear B. Determine the number of revolutions of gear C required for its angular velocity to increase from 100 to 450 rpm and the corresponding tangential force acting on gear A....
N 3321-006: Dy X s Connect х C The 30-kg Uniform Disk A And T X (25,697 unread) - jasonbeckford X + ezto.mheducation.com/ext/map/index.html?_con=con&external_browser=0&launchUrl=https%253A%252F%252Flms.mnheducation.com%252Fmghmiddleware%252Fmheproducts%252Fims Saved Help Save The 38-kg uniform disk A and the bar BC are at rest and the 9 kg uniform disk D has an initial angular velocity wh of magnitude 440 rpm when the compressed spring is released and disk D contacts disk A. The system rotates freely about the vertical spindle BE. After a period of...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
Fig. P16.135 and P16.136 150 rad/scounterclockwise, determine (a) the couple M, (b) the components of the force exerted at C on rod BC. 16.137 In the engine system shown 1 = 250 mm and b = 100 mm. The connecting rod BD is assumed to be a 1.2-kg uniform slender rod and is attached to the 1.8-kg piston P. During a test of the system, crank AB is made to rotate with a constant angular velocity of 600 rpm clockwise...
For the engine system of Prob. 15.C3 of Chap. 15, the masses of piston P and the connecting rod BD are 2.5 kg and 3 kg, respectively. Knowing that during a test of the system no force is applied to the face of the piston, use computational software to calculate and plot the horizontal and vertical components of the dynamic reactions exerted on the connecting rod at B and D for values of from 0 to 180° Prob. 15.C3 In...
A and B are smooth pin connections. BG is a uniform circular
disk of mass 5 kg. AB is a uniform slender rod of mass 2 kg and
length 750 mm. At the instant shown, 2 kg slider A is moving to the
right at .5 m/s and a 35 N force is being applied at pin A.
Find: The angular accelerations of link AB and disk BG.
6- 0.5 " 尸パ. 6 D mm
6- 0.5 " 尸パ. 6...
The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of Ó = 10 rad/s and accelerates at a rate of Ö = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity and acceleration of point...
(6 Points) - Problem 5: Each of the gears A and B has a mass of 10 kg and a radius of gyration of 190 mm, while gear C has a mass of 2.5 kg and a radius of gyration of 80 mm. Assuming that the 6 N-m couple is applied to gear B. determine (a) the number of revolutions of gear C required for its angular velocity to increase from 450 rpm to 1800 rpm, (b) the corresponding tangential...
The uniform 14-kg plate is welded to the vertical shaft, which is supported by bearings A and B. Calculate the magnitude of the force supported by bearing B during application of the 110-N-m couple to the shaft. The cable from C to D prevents the plate and shaft from turning and the weight of the assembly is carried entirely by bearing 110 Nm A 150 mm 70 mm 580 mm 180 mm 330 mm Answer: B kN
The uniform 14-kg...
