| 0 0 2 Explore the premierower cycle you to explain Asean regenerative show delivering 100HW...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the...

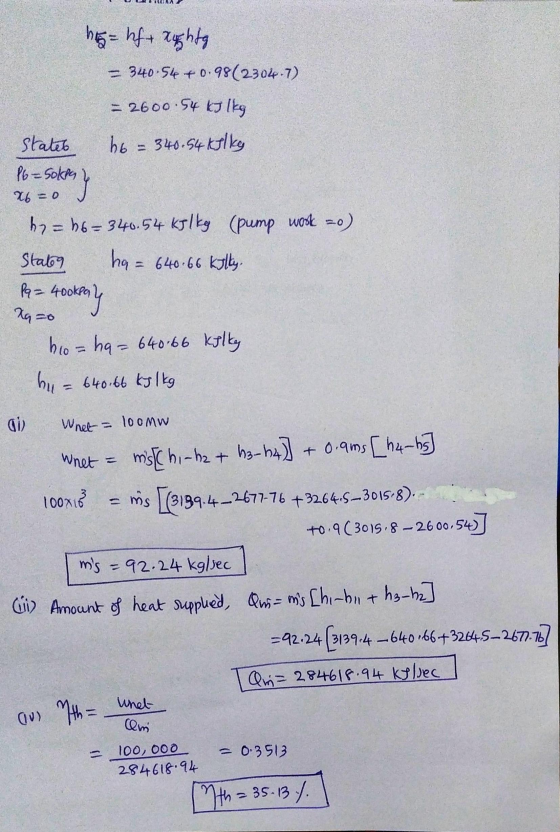

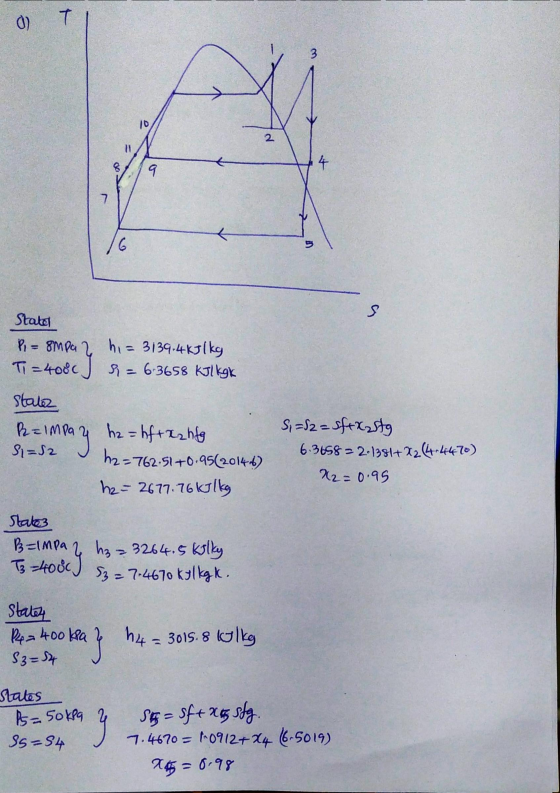

b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
please help thermodynamics a) Explain the methods that can be adopted to increase the thermal efficiency...
please help thermodynamics

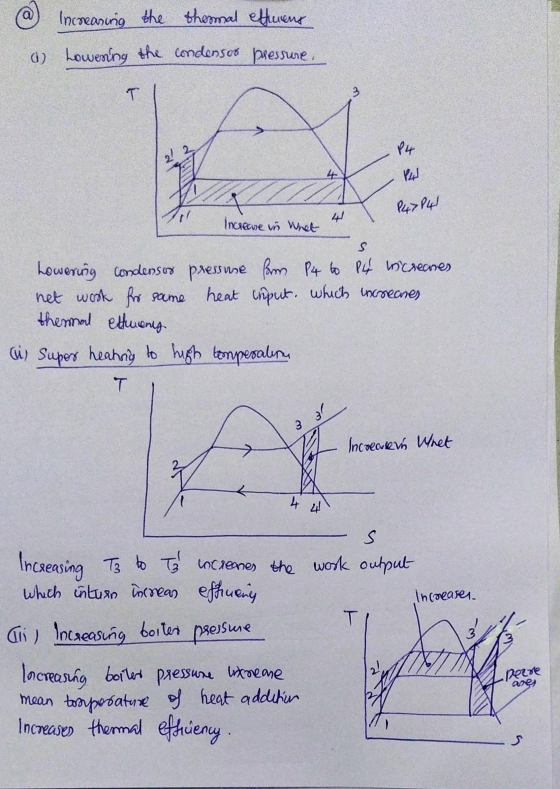

a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boller is supplied to the turbine at 8 MPa. 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where Its temperature...
--> XCIO DO ay Explain the methods that can be adopted to increase the thermal emciency...
--> XCIO DO ay Explain the methods that can be adopted to increase the thermal emciency or a vapor power cycle. You may use a 1-soigram to explain your reasons. b) A steam regenerative cycle shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C.After expanding isentropically in the 1 stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor...
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
a) explain the methods that can be adopted to increase thermal efficiency of a vapor cycle...
a)
explain the methods that can be adopted to increase thermal
efficiency of a vapor cycle you may use T-s diagram to explain you
reason
a steam regenerative cycle, show below, is delivering 100 MW
of power. Steam from the boiler is supplied to the turbine at 8
mpa, 400 c. After expanding isentropically in the 1st stage turbine
to a pressure of 1 MPa, steam is taken to the reheater where its
temp is raised back to 400 c...
I need help with this ان المتفانوس a) Explain the methods that can be adopted to...
I need help with this
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to...
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of...
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
please help thermodynamics
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boller is supplied to the turbine at 8 MPa. 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where Its temperature...
--> XCIO DO ay Explain the methods that can be adopted to increase the thermal emciency or a vapor power cycle. You may use a 1-soigram to explain your reasons. b) A steam regenerative cycle shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C.After expanding isentropically in the 1 stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
a)
explain the methods that can be adopted to increase thermal
efficiency of a vapor cycle you may use T-s diagram to explain you
reason
a steam regenerative cycle, show below, is delivering 100 MW
of power. Steam from the boiler is supplied to the turbine at 8
mpa, 400 c. After expanding isentropically in the 1st stage turbine
to a pressure of 1 MPa, steam is taken to the reheater where its
temp is raised back to 400 c...
I need help with this
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to...
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature...
