The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA. Vg, and V). The resi
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

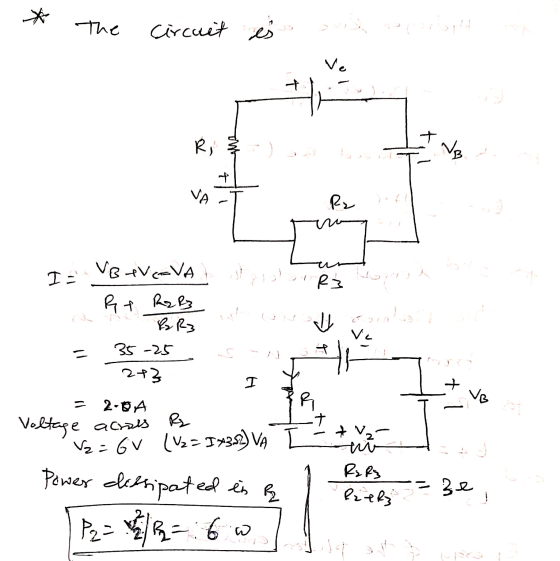

* the circuit és Ve 수 + R, VA - Pr Iz VB AVEVA RT R2 R3 R3 ✓ Ve 35 -25 2-3 I + VB 2-04 RE t Voltage acris V2=6V (V2 = I *352)

0 0
Add a comment
Know the answer?
Add Answer to:
The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...

    Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R2-2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc RE VA VB - R2 R3 1.0W 2.0 w 50w 6.0 W 7.5 W

  • The circuit shown in the figure below contains three resistors (R4, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and Rg) and three batteries (VA. Vg, and V). The resistor values are: R,-2 Ohms, R-R3-4 Ohms, and the battery voltages are VA-25V, Vp-15 V, and Vc-20V. When the circuit is connected, what will be the power dissipated by Ry? Vc A R R R3 O 1.25 W O 20W O 50W O 6.25 W O 8.13 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC RE ş VA VE R2 m R3 O 1.0W O 2.0 W O 5.0 W 6.0 W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and V). The resistor values are: R=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA-25V, V =15 V, and Vc 20 V. When the circuit is connected, what will be the power dissipated by Ry? Vc R1 - Ve R₂ R O 1.25 W O 20w O 12.5 W O 6.25 W 8.13 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R22 Vc R + VB 30 R3 1.0 W 2.0 W 5.0 W 6.0 W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, Vg, and V). The resistor values are:R1-2 Ohms, R=R3=6 Ohms, and the battery voltages are Va=25V, Vg=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 + Ve R2 R3 O 1.0W O 20W O 5.0W O 60W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and Vd. The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, V3-15 V, and Vc-20V. When the circuit is connected, what will be the power dissipated by Rs? Vc HA RA w VA VE R2 [m R3 O 0.75 W 125 W 2.67 W 42W 5.5 W

  • Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...

    Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA. V. and Vc). The resistor values are: Rq=2 Ohms, R2=R3-6 Ohms, and the battery voltages are VA-25V, Vo=15 V, and Vc=20V. When the circuit is connected, what will be the power dissipated by R2? Vc R R2 R3 1.0 W 20w 5.0 W 6.0W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by Ri? VC + HA R1 VA V - R2 R3 O 1.25 W 0 2.0 W O 12.5 W O 6.25 W O 8.13 W
