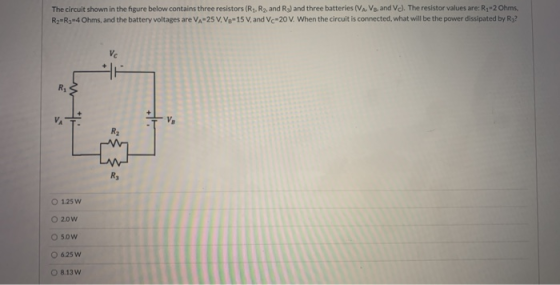

The circuit shown in the figure below contains three resistors (R4, R2, and Rg) and three batteries (VA. Vg, and V). The resi
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

R1 = 2 , R2=R3 = 4, VA = 25, VB = 15, VC=20.

Let suppose I1 current flowing from VA. we assume let I2 current flow in R3.

since R2 = R3 .Therefore I1 = 2*I2 (1)

now from KVL

VA = I1*R1 + VC + VB + I2*R2 (2)

put values we find I2 = 10/8 ohm

(power dissipation in R3) P = I22R3 = 6.25 W

0 0
Add a comment
Know the answer?
Add Answer to:
The circuit shown in the figure below contains three resistors (R4, R2, and Rg) and three...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and V). The resistor values are: R=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA-25V, V =15 V, and Vc 20 V. When the circuit is connected, what will be the power dissipated by Ry? Vc R1 - Ve R₂ R O 1.25 W O 20w O 12.5 W O 6.25 W 8.13 W

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, Vg, and V). The resistor values are:R1-2 Ohms, R=R3=6 Ohms, and the battery voltages are Va=25V, Vg=15 V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 + Ve R2 R3 O 1.0W O 20W O 5.0W O 60W O 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA. Vg, and V). The resistor values are: Rq=2 Ohms, R=R3-6 Ohms, and the battery voltages are VA-25V. V8-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R R. RE O 1.0W O 2.0 O 50W 6.0 W 0 7.5 W Question 9 5 pts

  • The circuit shown in the figure below contains three resistors (R4, Ry, and R) and three...

    The circuit shown in the figure below contains three resistors (R4, Ry, and R) and three batteries (V, Vs, and VJ. The resistor values are: Ry=2 Ohms, Ry=R3=6 Ohms, and the battery voltages are VA-25V, V, 15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R ? VC R R2 R3 O 10W © 20W 05.0W 06.0W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R) and three batteries and V. The resistor values are: Ry-2 Ohms, Ry-Ry 4 Ohms, and the battery voltages are VA-25V, V -15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by Ry? VC R VA V. R2 R O 1.25 W O 2.0w O 5.0 W O 6.25 W O 8.13 W L

  • Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...

    Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA. V. and Vc). The resistor values are: Rq=2 Ohms, R2=R3-6 Ohms, and the battery voltages are VA-25V, Vo=15 V, and Vc=20V. When the circuit is connected, what will be the power dissipated by R2? Vc R R2 R3 1.0 W 20w 5.0 W 6.0W 7.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and Rg) and three batteries (VA, Ve, and Vd. The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, V3-15 V, and Vc-20V. When the circuit is connected, what will be the power dissipated by Rs? Vc HA RA w VA VE R2 [m R3 O 0.75 W 125 W 2.67 W 42W 5.5 W

  • The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA-25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC Ri + VA 1: R₂ R3 O 1.25 W 20w O 5.0W O 6.25 W O 8.13 W

  • Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2,...

    Question 8 5 pts The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25V, VB=15V, and Vc=20V. When the circuit is connected, what will be the power dissipated by R3? VC + R. Ve R O 125 W O 20 W O 5.0 W O 6.25 W O 8.13 W

  • The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three...

    The circuit shown in the figure below contains three resistors (R4, R2, and R3) and three batteries (VA, VB, and V). The resistor values are: R2-2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA-25V, Vp-15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by R3? VC +H R1 VA th ++ VB R2 [m R3 O 0.75 W 1.25 W O 2.67 4.2 W 5.5 W
